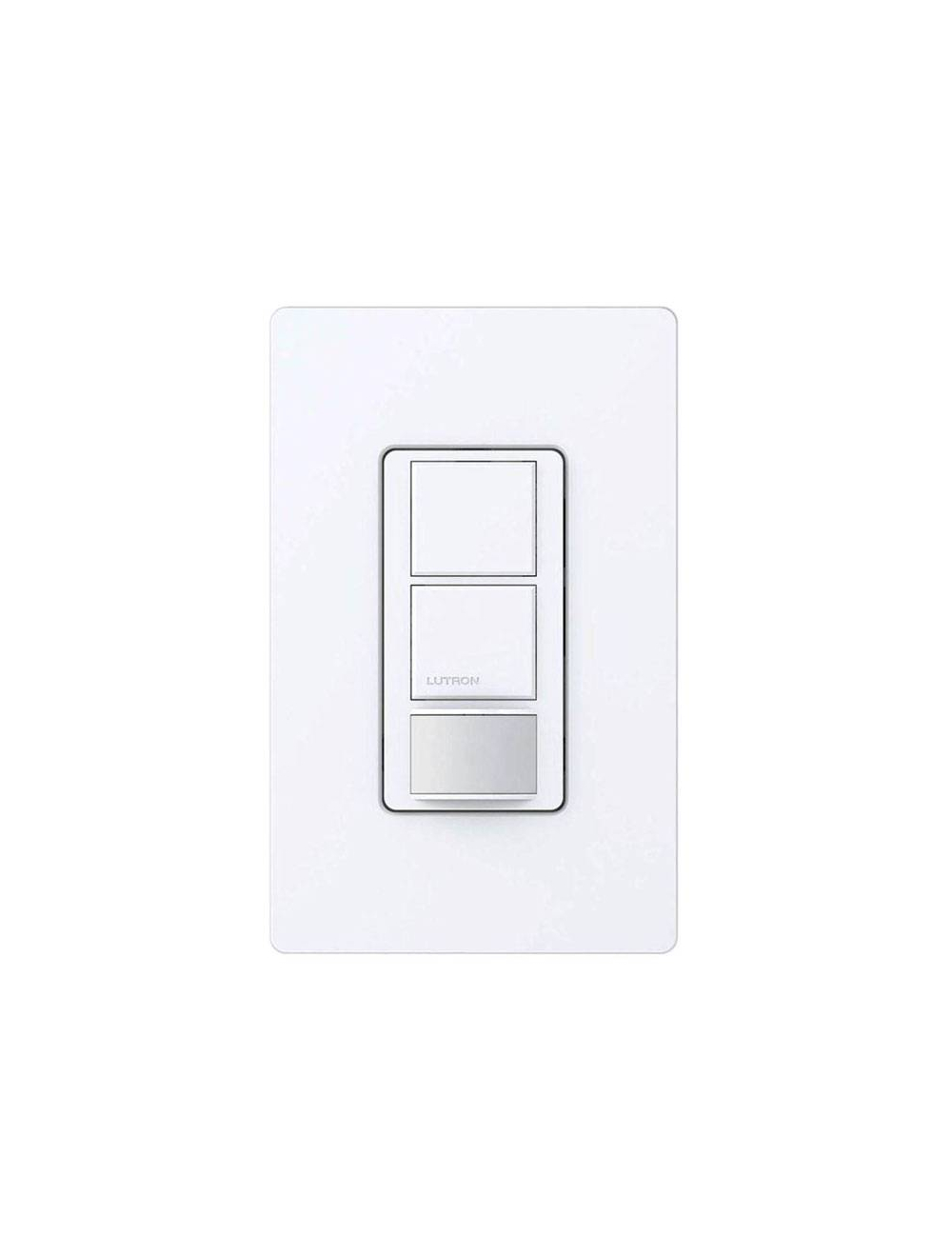

Lutron MS-OPS6-DDV Dual Circuit Occupancy/Vacancy Sensor

Lutron MS-OPS6-DDV Dual Circuit Occupancy/Vacancy Sensor

Features:

• Control of two circuits
• Bi-level control of two circuits, as required by certain energy codes (e.g., ASHRAE) Features
• Passive infrared sensor with exclusive Lutron® XCTTM Technology for minor motion detection
• 180° sensor field-of-view
• Tamper-resistant PIR lens
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
• Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user’s preferred light level over time
• Occupancy version can be set to Auto-ON/Auto-OFF or Manual-ON/Auto-OFF
• Meets Title 24/Title 20 requirements for multi-level lighting. Partial-ON only (PPS6-DDV) version available to meet Title 24/Title 20 requirements for Partial-ON sensors
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment (High/Low) • Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent
• Switches fan loads at 120 V~
• Single-pole only
