Gas Station Canopy Lighting Package 16 fixtures

Gas Station Canopy Lighting Package 16 fixtures

System Output - 16 fixtures

Optional Fixture Selection

LSI Scottsdale SCM LED 20L SC UNV DIM 50 WHT 147w Fixture

or

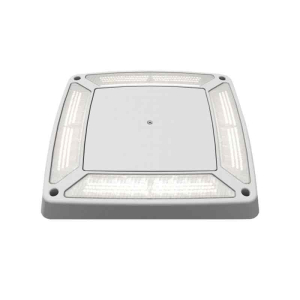

LSI Scottsdale Vertex SCV LED 20L SC UNV DIM 50 WHT 130w Fixture

LSI Scottsdale Specifications:

CONSTRUCTION:
• Rugged low-profile die-cast aluminum housing. • Low profile 2” luminaire height and lightweight design target a broad range of applications and allow for easy installations. • Below canopy access to the optical chamber and driver housing for serviceability • Fixtures are finished with a polyester powder coat to withstand extreme weather changes without cracking or peeling. • Shipping weight: 17.5 lbs in a carton. • Suitable for wet locations.

INSTALLATION:
• Installs in a 12” or 16” deck pan. • Deck penetration consists of a minimum 3” hole and four suitable fasteners, creating a simple installation. Four fasteners are provided with the fixture for use in single deck, metallic canopy substrates only when classified as suitable for use by installing professional. Otherwise, suitable fasteners should be provided by others. • Unit is designed to quickly retrofit into the existing Scottsdale (4”) hole. • Aluminum locking collar, stem kit, and gasket are included and required for complete seal and support of the canopy deck.

LSI Scottsdale Vertex Specifications:

CONSTRUCTION:
• Rugged low-profile die-cast aluminum housing, optical unit, and driver cover. • Below canopy access to the optical chamber and driver housing for serviceability. • IP66 rated optical unit protects integral components from dust and water. • Fixtures are finished with LSI’s DuraGrip® polyester powder coat finishing process. The DuraGrip finish withstands extreme weather changes without cracking or peeling. • A single fastener secures access door to the driver and key components and provides quick & easy access to the electrical compartment for servicing. • Shipping weight: 15 lbs in the carton.

INSTALLATION
• Installs in a 12” or 16” deck pan. • Four fasteners are provided with the fixture for using deck, metallic canopy substrates only when classified as suitable for use by installing professional otherwise suitable fasteners should be provided by others. • Unit is designed to quickly retrofit into the existing Scottsdale (4”) hole. • Aluminum locking collar and gasket are included and required for complete seal and support of canopy deck. • Retrofit panels are available for existing Encores, Richmond, 2x2 Universal, and more.

WARRANTY: 5 Year Warranty

LISTINGS:
• Listed to UL 1598 and UL 8750. • RoHS Compliant. • Meets Buy American Act requirements. • State of California Title 24 Compliant with IMSBT or ALSC/ALSCS option. • IP66 Rated Optical Unit per IEC 60598. • DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified.
