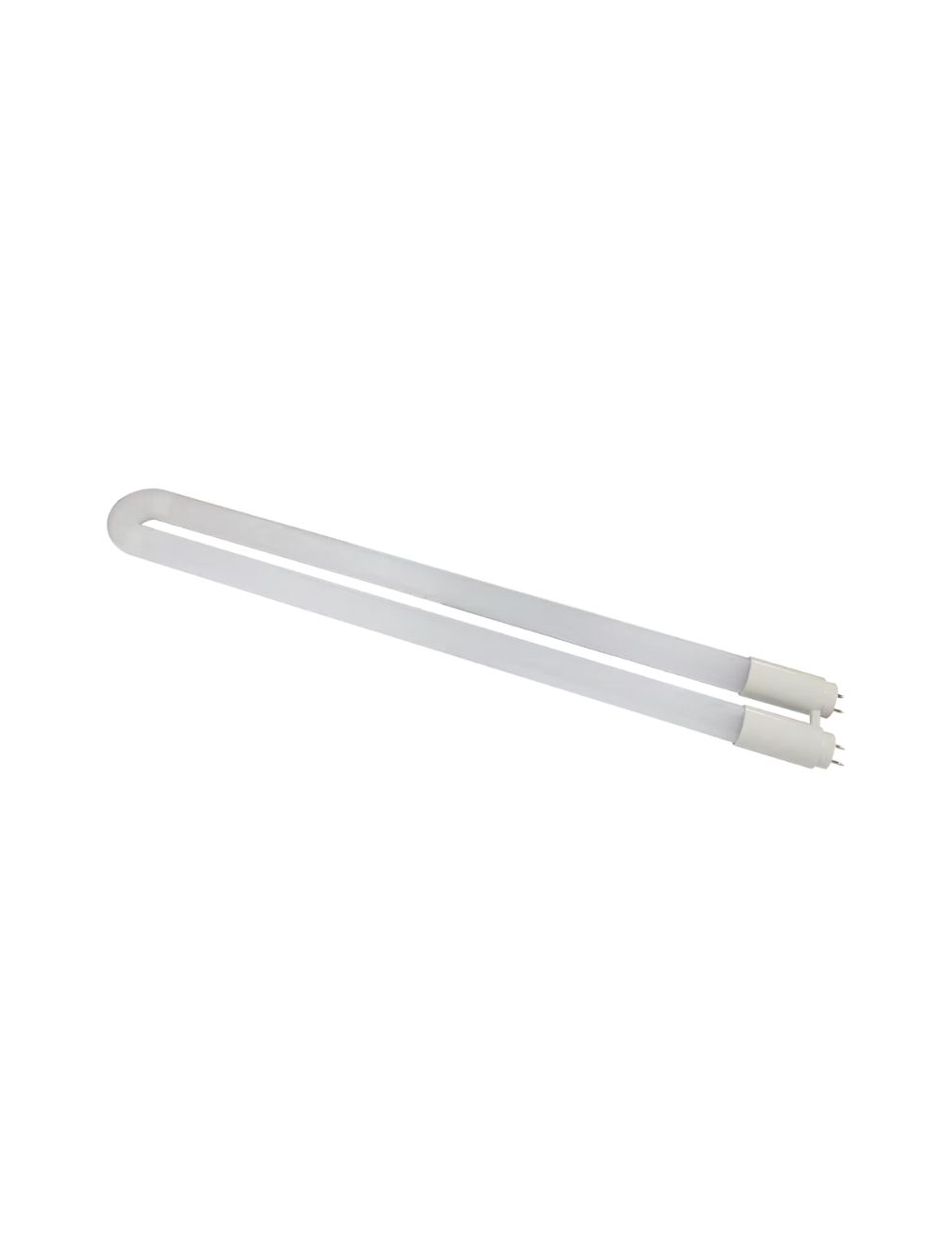

Eiko LED13WT8/U1 LED T8 U-Bend Lamp 1-5/8" 13 Watt 3CCT Selectable Non-Dimmable Type A/B Dual Mode

LED T8 Dual Mode U-Bend Replacement Lamps can be installed using a ballast or direct line voltage, and consume a fraction of the energy cost of fluorescent lamps.

Review all installation instructions and confirm the use of a compatible ballast before installing Dual Mode lamps on an existing fluorescent ballast.

$20.41

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

LED13WT8/U1

CCT

3500K

4000K

5000K

Qty:

Eiko LED13WT8/U1 LED T8 U-Bend Lamp 1-5/8" 13 Watt 3CCT Selectable Non-Dimmable Type A/B Dual Mode is available to buy in increments of 24

Details

FEATURES
• Hybrid dual mode for use with ballasts OR direct line voltage
• No socket changes; line voltage function uses shunted or non-shunted sockets
• Operates on most instant-start T8 ballasts
• Instantaneous full light output upon power-up
• Frosted glass lens reduces visual glare
• Visit eiko.com to view complete ballast compatibility information
• Line voltage operation requires universal 120-277V; direct fit operation can use approved 120-277V or 347-480V ballasts
• Non-shunted socket will work in single or double-ended operation
• The shunted socket will work in double-ended operation only

WARRANTY
• 5 year limited warranty; see eiko.com for warranty details

APPLICATIONS
• Highbays
• Troffers
• Industrial Strips
• Cove Lighting
• Warehouses
• Stairwells
• Cold Storage

PRODUCT OPTIONS
• LED13WT8/U1/835-G9DM — 3500K — Order Code: 10923
• LED13WT8/U1/840-G9DM — 4000K — Order Code: 10924
• LED13WT8/U1/850-G9DM — 5000K — Order Code: 10925

Specifications

More Information
Part Number	LED13WT8/U1
Manufacturer	Eiko
Watts	13 Watts
Color Temperature	3500 Kelvin, 4000 Kelvin, 5000 Kelvin
CRI	80
Lumens	2,000
Lumens Per Watt	154
Rated Life	50,000 hours +
Input Voltage	120V-277V
Dimmable	No
Minimum Operating Temperature	-4℉
Maximum Operating Temperature	113℉
Dimensions	1.61" x 22.56"
Width	2
Height	23
Lead Time	In Stock - Quick Ship
Certifications	, , , ,
UPC Code	031293109231
Warranty	5 Year
