Keystone KT-RKIT-2AG44-4000-8XX-VDIM 29W 4' Dimmable FutureFit LED Kit

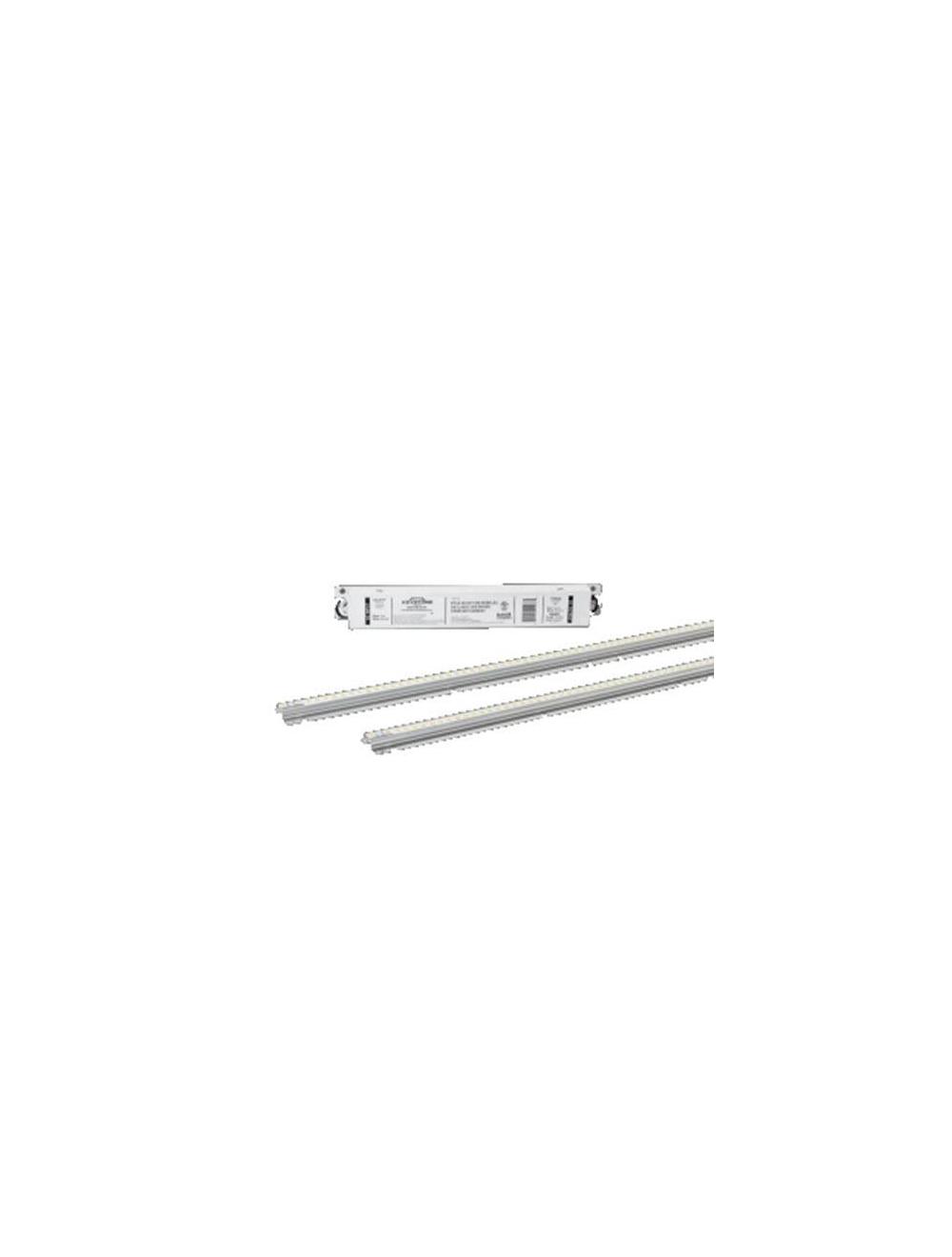

UL 1598C Classified LED Retrofit Kit. Includes the Following Components: (1) LED Driver, (2) Alumagroove LED Modules, (2) Lenses, Mounting Accessories (Jumper Wires, Tek Screws, Power Quick-Disconnect)

Suitable for use in Troffers, Wraps, Strips, Vapor Tights, and other indoor fixture types.

$117.36

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

KT-RKIT-2AG44-4000-8XX-VDIM

Color Temp

3500K

4000K

5000K

Qty:

Keystone KT-RKIT-2AG44-4000-8XX-VDIM 29W 4' Dimmable FutureFit LED Kit is available to buy in increments of 20

Details

• For Use In Class 2 Lighting Systems

• High Lumen Density Design

• Completely Heat Sinked, No Additional Heat Sinking Needed to Maintain LED Lifetime

• Made with UL Recognized Components

• 2835 LED Chip Package

• Reported Life Expectancy: L70 >54,000 Hours at 85C | L90 48,000 Hours at 85C

• Calculated Life Expectancy: L70>160,000 Hours at 85C | L90 48,000 at 85C

• Beam Angle: 120 Degree

• Low Profile WAGO Push Connectors Located on Bottom of Modules to Eliminate Dark Spots on End-to-End Connections

• 120-277V Input, High Power Factor, 0-10V Dimming

• UL Class P

• Meets FCC Part 15 Class B (Consumer) Limit for EMI

• Over Current and Short Circuit Protection

• Class 2 Output

• Operating Temperature: -20C/-4F to 55C/131F

• THD < 20%

• DLC Premium Listed

Specifications

More Information
Part Number	KT-RKIT-2AG44-4000-8XX-VDIM
Manufacturer	Keystone Technologies
Watts	29 Watts
CRI	>80
Color Temperature	3500 Kelvin, 4000 Kelvin, 5000 Kelvin
Dimmable	Yes
Input Voltage	120V-277V
Rated Life	50,000 hours +
Minimum Operating Temperature	-4ºF
Maximum Operating Temperature	131ºF
Dimensions	Length: 44" Diameter: 1.26"
Certifications	, ,
Warranty	10 Year
UPC Code	890949019801
Lead Time	In Stock - Quick Ship
