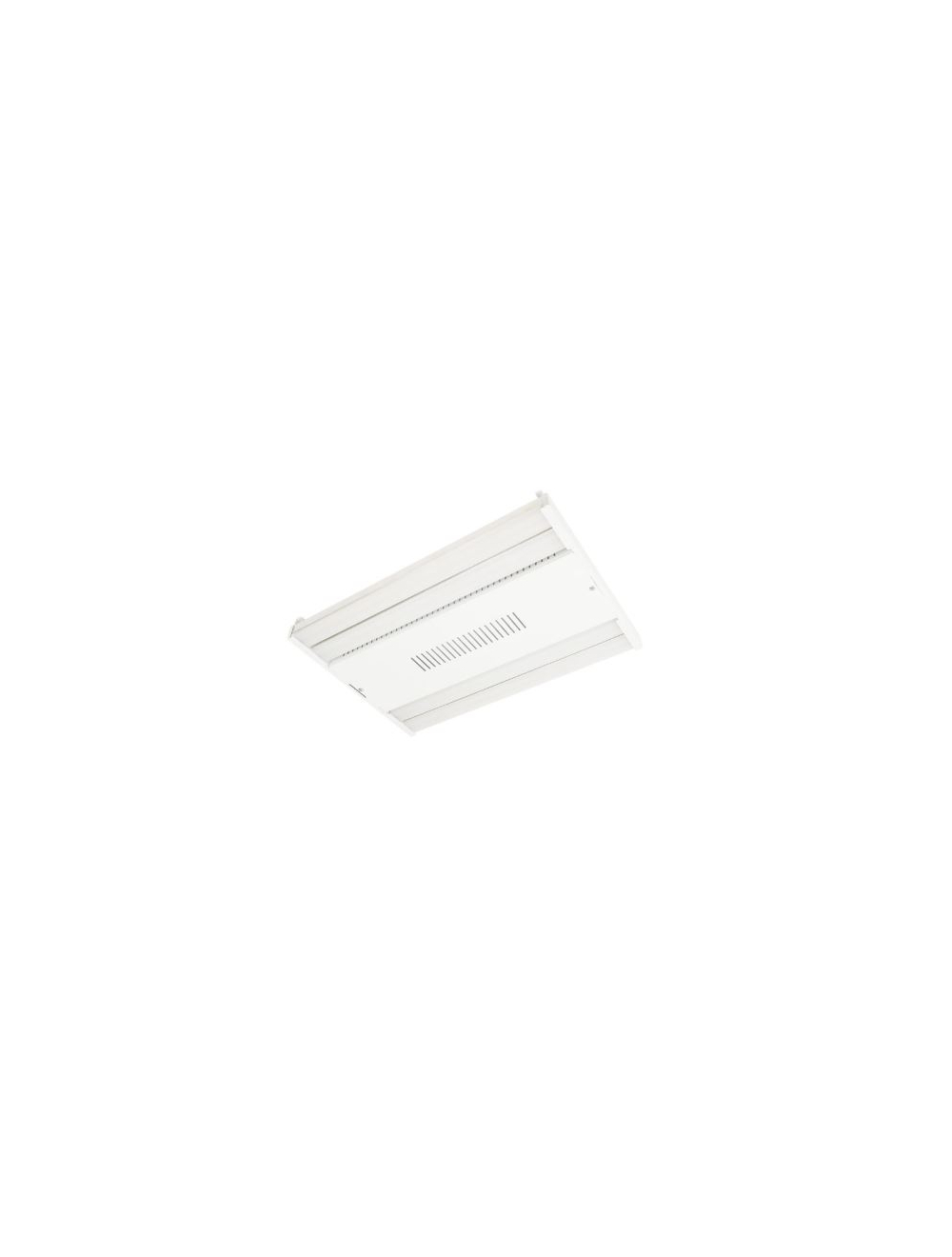

LSI ALI2 2' Alliance Series LED Linear High Bay
* Accessories such as controls, emergency backup, and additional mounting are available upon request. Please inquire for more information. *
Construction
• Constructed of 22 gauge die formed steel with a post-paint polyester coat finish and rigid extruded aluminum heat sinks.
• Access panel provides hinged access to wiring and driver connections
• All metal parts are painted after fabrication following treatment with phosphate rust inhibitor. Finish coating of housing reflecting surfaces is with high reflectance white (minimum 92%) polyester powder
Optical System
• Choice of 2 high performance distributions; Wide (W) Available with Less Lens (LL), Clear Acrylic (CA) and Diffuse Acrylic (DA) lens option, or Narrow / Aisle (N). Narrow / Aisle distribution is available with Less lens (LL) only.
• Optional high transmission impact resistant lenses available in Clear Acrylic (CA) and Diffuse Acrylic (DA) • Less Lens (LL) option available for high efficiency applications. • Available in 4000K, 5000K color temperatures.
• Minimum CRI of 80. • Available indirect light output configuration.
| Part Number | ALI2 |
|---|---|
| Manufacturer | LSI |
| Lumens | Variable, See Spec Sheet |
| CRI | 80 |
| Color Temperature | 4000 Kelvin |
| Rated Life | 100,000 hours + |
| Input Voltage | 120V-277V |
| Dimmable | No |
| Minimum Operating Temperature | -40℉ |
| Maximum Operating Temperature | 122℉ |
| Dimensions | Variable, See Spec Sheet |
| Warranty | 5 Year |
| Lead Time | Build Item 3-4 Weeks |
