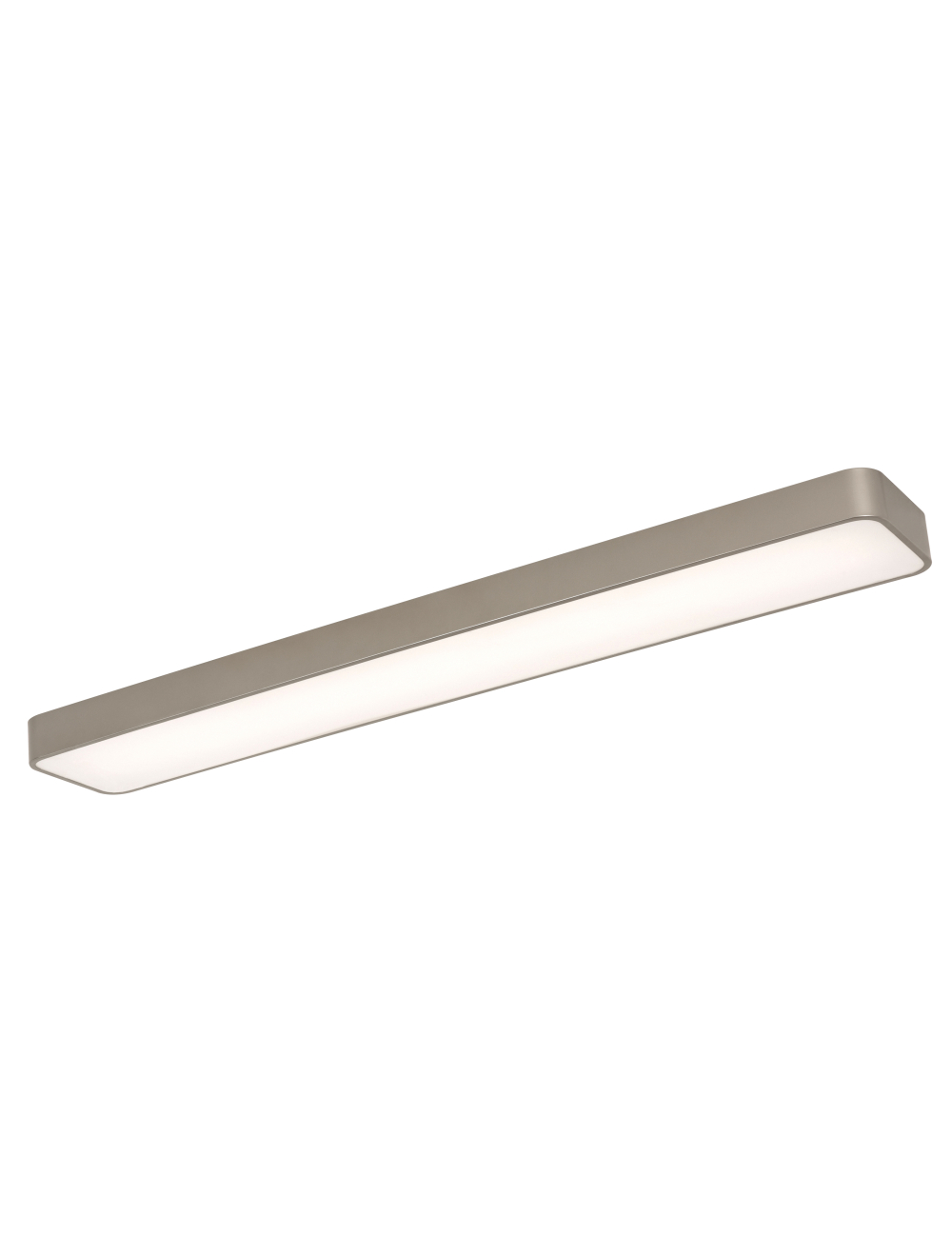

AFX BAYL2408LAJUDSN BAYL Series 24" Bailey LED Linear Fixture 120-277 Volt 25 Watts CCT Selectable with Satin Nickel Finish

Features:
Decorative linear fixture with a metal finish and a white acrylic diffuser. Ideal use in hallways, entrances or anywhere general lighting is needed. Provides lighting in residential, commercial and hospitality applications. Fixture mounts to standard junction box (not included).

Bi-Level Motion Sensor (Optional ‘-MS’)
• Built-in daylight sensor
• Detection area, time delay, and daylight threshold can be precisely set via DIP switch
• Wide detection area, range up to 50 ft. (16 m) max

Emergency Back-Up (Optional ‘-BB’) - 46” ONLY
• 90 minute run-time
• 7.4V 2500 mAh Lithium Ion Battery
• 8 watts

Construction:
Die-formed steel construction. Standard mounting holes and hardware are included. Power supply connections must be made inside a junction box (not included).

Finish:
Black or Satin Nickel.

Diffuser:
White acrylic.

Electrical:
Input 120-277 VAC 60 HZ. Compatible with residential (TRIAC/ELV) and commercial (0-10V) dimmers. TRIAC and ELV dimming only at 120 VAC.

Certification:
All fixtures are cETLus listed for indoor damp locations. Title 24/JA8 Compliant

Warranty:
Limited warranty: This fixture is free from defects in materials and workmanship for a period of 5 years from date of purchase.

Products ordered with battery back-up:
Fixture must be installed and the battery energized within six months of the purchase date to remain eligible for warranty coverage. Failure to comply may result in complete battery discharge, rendering it irrecoverable and thereby voiding the warranty.
