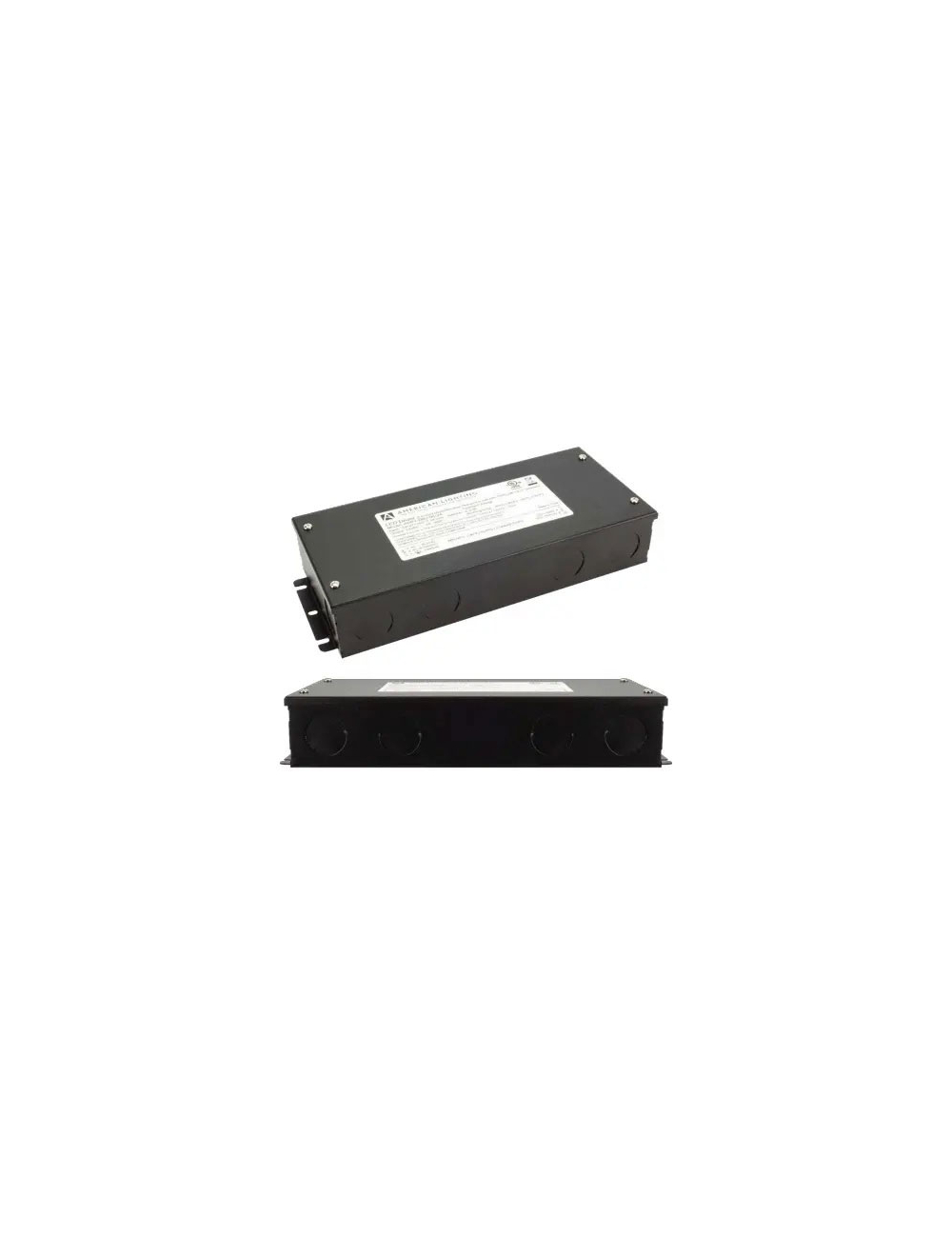

American Lighting ADPT-DRJ-288-24 288 Watt 24 Volt Phase Cut Constant Voltage Driver with Junction
American Lighting's 288W phase dimming 2 driver is designed to operate with any standard MLV/ELV/Incandescent TRIAC (forward phase) dimmer switch or can also be sed with secondary side controls.
$360.00
Features
• Min Load: 28.8W (2 X 14.4W).
• Max Load: 288W (3 X 96W).
• Input Voltage: 100-277VAC.
• Input Current: 3.4A at 100V.
• Output Voltage: 24VDC.
• Dimming: Phase / MLV / ELV / TRIAC.
• 24VDC constant voltage hardwire driver.
• Dimmable with standard TRIAC, MLV and ELV dimmers.
• Forward phase and reverse phase compatible.
• Short circuit, over-load, and over-temperature protections.
• Slim, compact aluminum housing design (only 1.8-in tall).
• Integrated wiring compartment.
• PMW output with 10-100% load operation.
• Free air convection cooling.
• Dedicated line voltage and low voltage wiring compartments.
• cUL/UL Listed, FCC, RoHS Compliant, Damp Location.
• Min Load: 28.8W (2 X 14.4W).
• Max Load: 288W (3 X 96W).
• Input Voltage: 100-277VAC.
• Input Current: 3.4A at 100V.
• Output Voltage: 24VDC.
• Dimming: Phase / MLV / ELV / TRIAC.
• 24VDC constant voltage hardwire driver.
• Dimmable with standard TRIAC, MLV and ELV dimmers.
• Forward phase and reverse phase compatible.
• Short circuit, over-load, and over-temperature protections.
• Slim, compact aluminum housing design (only 1.8-in tall).
• Integrated wiring compartment.
• PMW output with 10-100% load operation.
• Free air convection cooling.
• Dedicated line voltage and low voltage wiring compartments.
• cUL/UL Listed, FCC, RoHS Compliant, Damp Location.
| Part Number | ADPT-DRJ-288-24 |
|---|---|
| Manufacturer | American Lighting |
| Watts | 288 Watts |
| Input Voltage | 100V-277V |
| Output Voltage | 24V |
| Dimmable | Yes |
| Certifications |      |
| Lead Time | Ships in 2-3 Business Days |
| UPC Code | 714176996363 |
