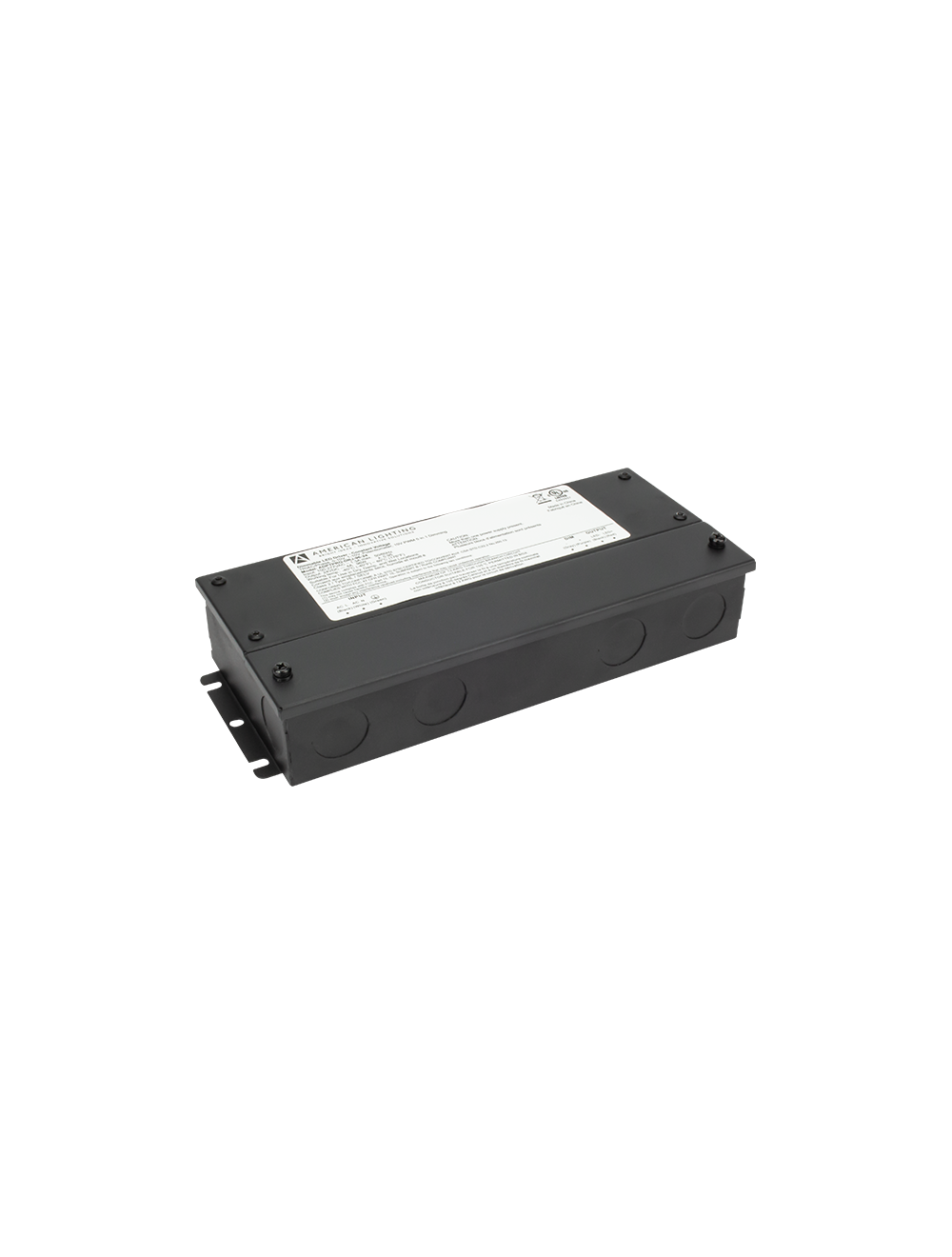

American Lighting ADPT-DRJ-96-24 96 Watt 24 Volt Constant Voltage Driver with Junction

Be the first to review this product

The American Lighting ADPT-DRJ-96-24 is a 96W constant voltage LED driver designed for 24V DC applications.

$215.64

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

ADPT-DRJ-96-24

Details

Features
• Input Voltage: 100–277V AC
• Output Voltage: 24V DC
• Wattage: 96W
• Output Current: 4A
• Minimum Load: 9.6W
• Power Factor: 0.98 at 120V, 0.96 at 277V
• Dimming Compatibility: Compatible with standard TRIAC, MLV, and ELV dimmers; forward and reverse phase compatible
• Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Certifications: cULus Listed, FCC Compliant, Wet Location Rated, Class 2
• Housing: Slim aluminum design with integrated junction box and knockouts for easy wiring
• Cooling: Free air convection
• Dimming Control: PWM output with 10–100% load operation
• Length: 6.49 inches
• Width: 3.54 inches
• Height: 1.02 inches
• Weight: 1.80 lbs

Specifications

More Information
Part Number	ADPT-DRJ-96-24
Manufacturer	American Lighting
Watts	96 Watts
Input Voltage	100V-277V
Output Voltage	24V
Minimum Operating Temperature	-40°F
Maximum Operating Temperature	140°F
Dimmable	Yes
Dimensions	Variable, See Spec Sheet
Certifications	, ,
Warranty	1 Year
Specification Sheet	ADPT-DRJ spec Sheet
Lead Time	In Stock - Quick Ship
UPC Code	714176015811
