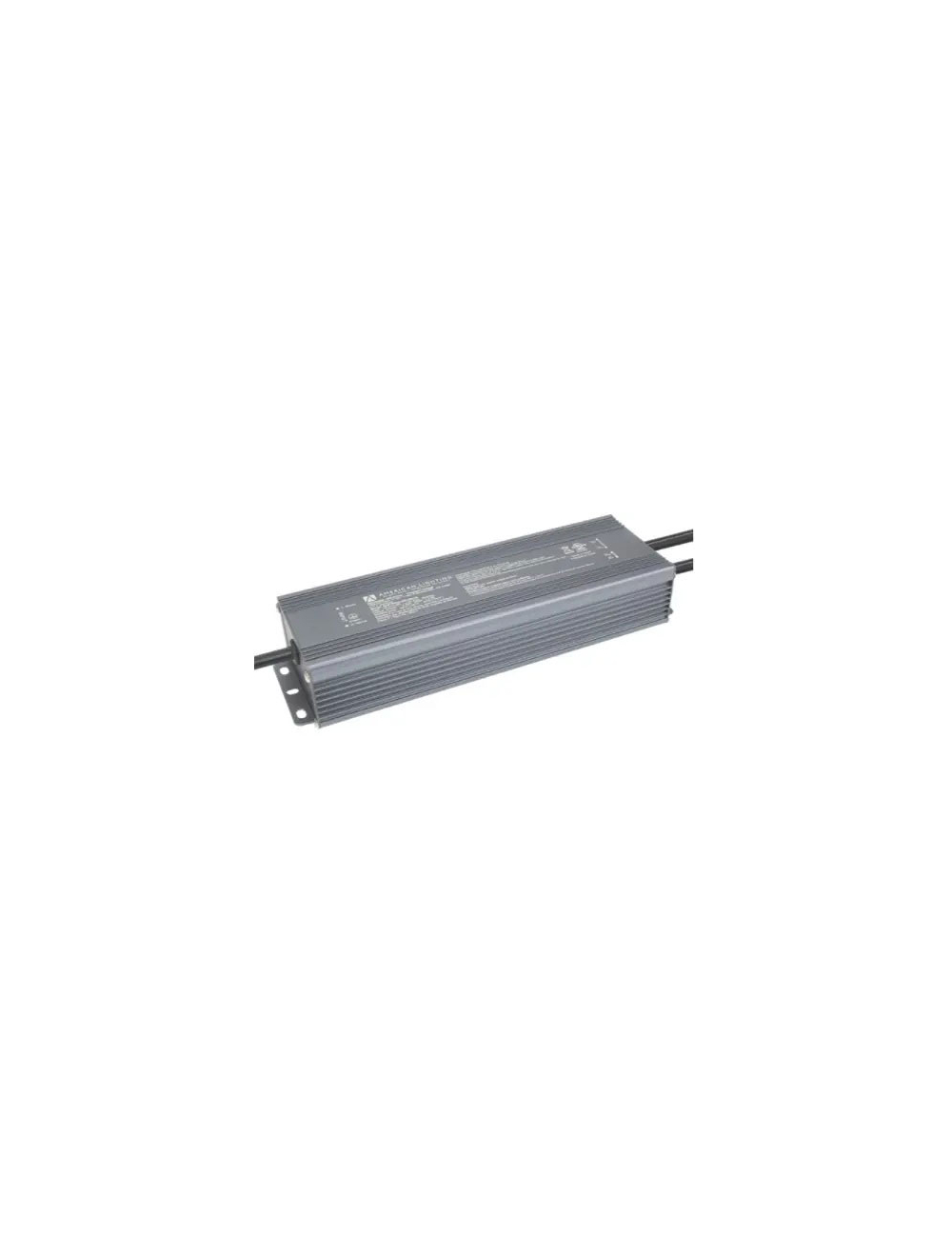

American Lighting ADPTPRO-DR-300-24 300 Watt 24 Volt 5-IN-1 Constant Voltage Driver
The American Lighting ADPTPRO-DR-300-24 is a high-performance 300W 24V DC constant voltage LED driver, designed for demanding commercial, architectural, and outdoor lighting applications.
$395.37
Features
• Input Voltage: 100–277V AC
• Output Voltage: 24V DC
• Wattage: 300W
• Current Output: 12.5A
• Power Factor: 0.99 at 120V AC / 0.95 at 277V AC
• Efficiency: Up to 92% at 277V AC
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Minimum Load: 30W
• Dimensions: 10.86" (L) x 3.07" (W) x 1.85" (H)
• Weight: 3.90 lbs
• Finish: Black
• Certifications: cULus Listed, Wet Location Rated, Class P, Type HL, FCC Compliant
• Safety Protections: Short circuit, overload, and over-temperature
• Housing: Class I metal housing (Type HL)
• Wiring: 8" SJTW lead and tail wires
• Certifications: cULus Listed for wet locations
• Housing: Class I metal housing (Type HL)
• Protection Features: Short circuit, overload, and over-temperature protections
• Compliance: Class P, Type HL, FCC Compliant
• Input Voltage: 100–277V AC
• Output Voltage: 24V DC
• Wattage: 300W
• Current Output: 12.5A
• Power Factor: 0.99 at 120V AC / 0.95 at 277V AC
• Efficiency: Up to 92% at 277V AC
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Minimum Load: 30W
• Dimensions: 10.86" (L) x 3.07" (W) x 1.85" (H)
• Weight: 3.90 lbs
• Finish: Black
• Certifications: cULus Listed, Wet Location Rated, Class P, Type HL, FCC Compliant
• Safety Protections: Short circuit, overload, and over-temperature
• Housing: Class I metal housing (Type HL)
• Wiring: 8" SJTW lead and tail wires
• Certifications: cULus Listed for wet locations
• Housing: Class I metal housing (Type HL)
• Protection Features: Short circuit, overload, and over-temperature protections
• Compliance: Class P, Type HL, FCC Compliant
| Part Number | ADPTPRO-DR-300-24 |
|---|---|
| Manufacturer | American Lighting |
| Watts | 300 Watts |
| Input Voltage | 100V-277V |
| Output Voltage | 24V |
| Minimum Operating Temperature | -40°F |
| Maximum Operating Temperature | 140°F |
| Dimmable | Yes |
| Dimensions | 10.86" (L) x 3.07" (W) x 1.85" (H) |
| Certifications |    |
| Lead Time | Ships in 2-3 Business Days |
| UPC Code | 714176023564 |
