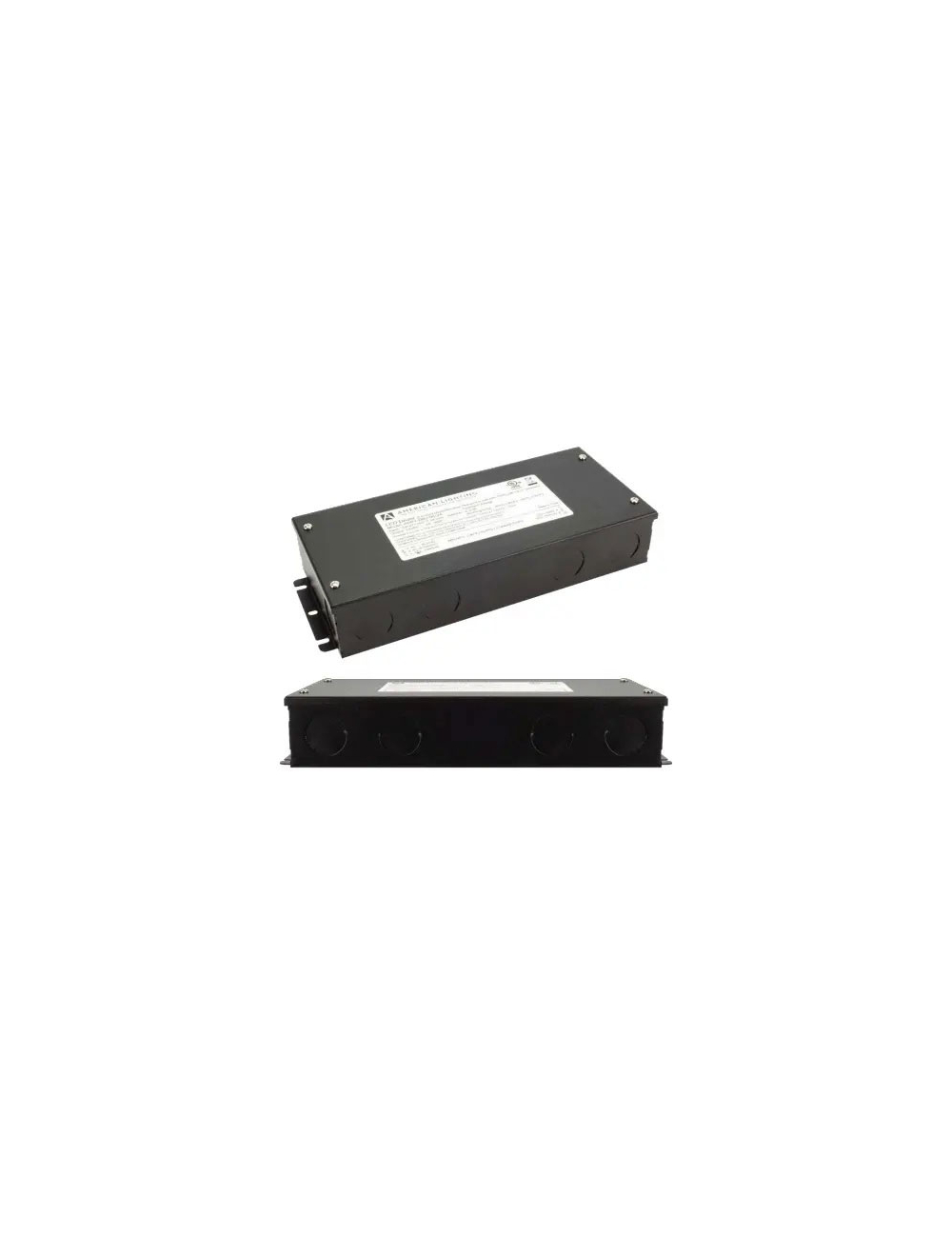

American Lighting ADPTPRO-DRJ-192-24 192 Watt 24 Volt 5-IN-1 Constant Voltage Driver
American Lighting's 192W 5-in-1 phase dimming driver is designed to work with any standard MLV/ELV/Incandescent TRIAC (forward phase) dimmer switch or can be also used with secondary side control systems.
$308.52
Features
• Min Load: 2 X 9.6W.
• Max Load: 96W (2 X 96W).
• Input Voltage: 100-277VAC.
• Output Voltage: 24VDC.
• Dimming: Phase (MLV / ELV / TRIAC); 0-10V; 1-10V; 10V PWM; Potentiometer.
• Slim and compact 24V DC constant voltage hardware driver.
• Dedicated line voltage and low voltage wiring compartments.
• Multiple 7/8-in knock-outs for easy wire configuration.
• Short circuit, over-voltage, over-temperature, overload protections.
• 5-in-1 forward and reverse phase dimming: MLV / ELV / TRIAC/ 0-10V/ 1-10V/ 10V PWM/ Potentiometer.
• Class 2, Type HL.
• cUL/UL Listed, FCC, RoHS Compliant, Wet Location.
• Dimensions: 10.9" (L) x 4.33" (W) x 1.88" (H)
• Weight: 4.70 lbs
• Min Load: 2 X 9.6W.
• Max Load: 96W (2 X 96W).
• Input Voltage: 100-277VAC.
• Output Voltage: 24VDC.
• Dimming: Phase (MLV / ELV / TRIAC); 0-10V; 1-10V; 10V PWM; Potentiometer.
• Slim and compact 24V DC constant voltage hardware driver.
• Dedicated line voltage and low voltage wiring compartments.
• Multiple 7/8-in knock-outs for easy wire configuration.
• Short circuit, over-voltage, over-temperature, overload protections.
• 5-in-1 forward and reverse phase dimming: MLV / ELV / TRIAC/ 0-10V/ 1-10V/ 10V PWM/ Potentiometer.
• Class 2, Type HL.
• cUL/UL Listed, FCC, RoHS Compliant, Wet Location.
• Dimensions: 10.9" (L) x 4.33" (W) x 1.88" (H)
• Weight: 4.70 lbs
| Part Number | ADPTPRO-DRJ-192-24 |
|---|---|
| Manufacturer | American Lighting |
| Watts | 192 Watts |
| Input Voltage | 100V-277V |
| Output Voltage | 24V |
| Dimmable | Yes |
| Dimensions | 10.9" (L) x 4.33" (W) x 1.88" (H) |
| Certifications |      |
| Lead Time | Ships in 2-3 Business Days |
| UPC Code | 714176023533 |
