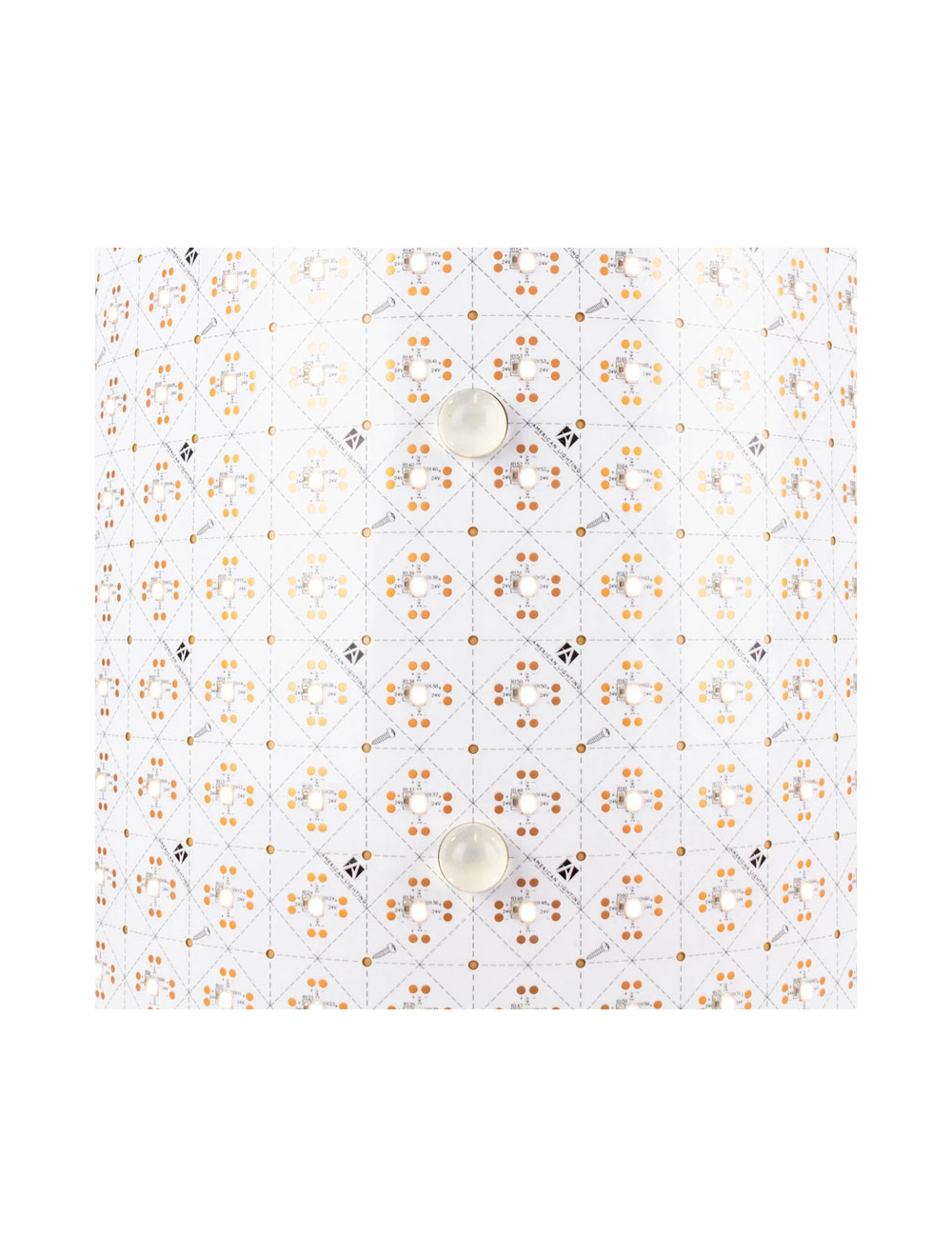

American Lighting CNVS-CW-12x24 12X24 inches 24 Volt 20 Watt 5000K LED Sheet Light

American Lighting's canvas light sheet is the ideal product for backlighting semi-transparent countertops and architectural features with its 5000K color temperature.

$514.08

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CNVS-CW-12x24

Details

Performance
• Input Voltage: 24V DC
• UV Inhibitor: N
• Wattage: 20 W
• CCT: 5000K
• CRI: 90+
• Lumens: 2050
• Cut Increment: 1 X 1 in
• Max Run: 96 W
• Optics (Degree): 120 degrees
• Rated Life (Hr): 50,000 Hours
• Temperature Range: -20C (-4F) to 45C (113F) degrees
• Dimming: PWM 5 - 100%
• Quantity: 2
• Spacing: 1 Inch x 1 Inch

Physical
• Weight: 1.90 lbs
• Width: 12 Inch
• Length: 24 Inch
• Height: 0.47 Inch

Certification
• Safety Rating: cULus Listed
• IP Rating: IP54
• Location Rating: Damp
• Indoor: Y
• Outdoor: Y

Specifications

More Information
Part Number	CNVS-CW-12x24
Manufacturer	American Lighting
Input Voltage	24V
CRI	90+
Color Temperature	5000 Kelvin
Watts	20 Watts
Lumens	2050
Rated Life	50,000 hours +
Dimmable	Yes
Beam Angle	120°
Minimum Operating Temperature	-20C
Maximum Operating Temperature	45C
Dimensions	24" x 12" x 0.47"
Length	24
Width	12
Height	0.47
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
UPC Code	714176022215
