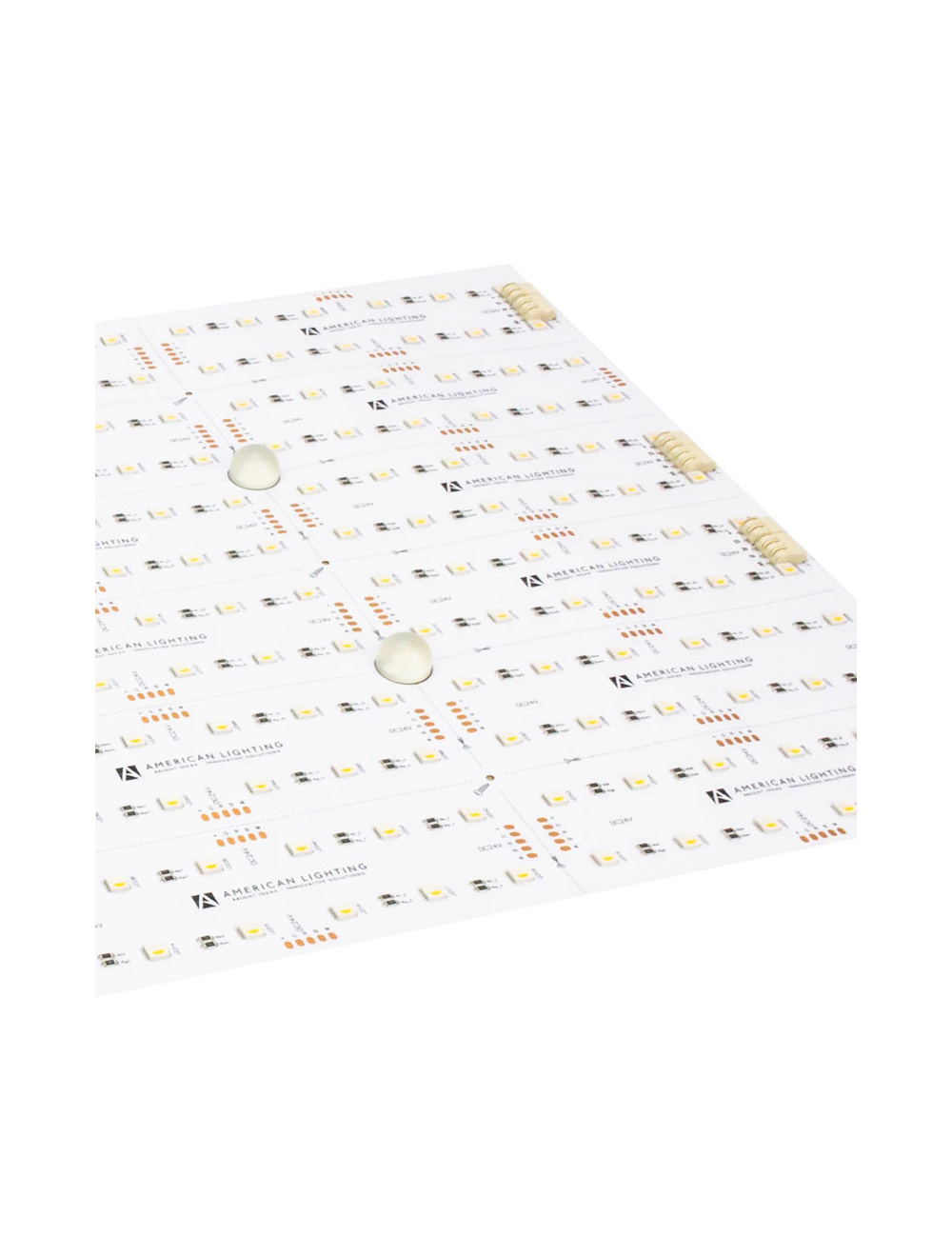

American Lighting CNVS-RGBW-12x24 12" x 24" RGBW LED Sheet

The Canvas Light Sheet is the ideal product for backlighting semi-transparent countertops and architectural features. Cut the 12” x 24” sheet to size at the job site to achieve a perfect fit for your application.

$822.33

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CNVS-RGBW-12x24

Details

Features
• 4-in-1 RGB + 3000K Warm White
• Ideal for backlighting semi-translucent materials
• Up to 1000Lm output performance per sheet
• Available in 12”H x 24”W sheet size
• Field cuttable on-site for an accurate fit
• 6” x 2” Cuttability and 1” X 1” LED spacing
• 3M peel and stick backing for quick installation
• Built-in terminal ports make it easy to run power from any side
• Integrated 1/2” stand-offs spaced every 6 inches
• Each Stand-off is rated up to 35lb load rating (220lbs per sheet)
• 50,000 hours rated life / 5-year limited warranty

Specifications

More Information
Part Number	CNVS-RGBW-12x24
Manufacturer	American Lighting
Input Voltage	24V
CRI	90+
Color Temperature	RGBW
Watts	20 Watts
Lumens	1000
Rated Life	50,000 hours +
Dimmable	Yes
Beam Angle	120°
Minimum Operating Temperature	-20C
Maximum Operating Temperature	45C
Dimensions	24" x 12" x 0.47"
Length	24
Width	12
Height	0.47
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
UPC Code	714176022239
