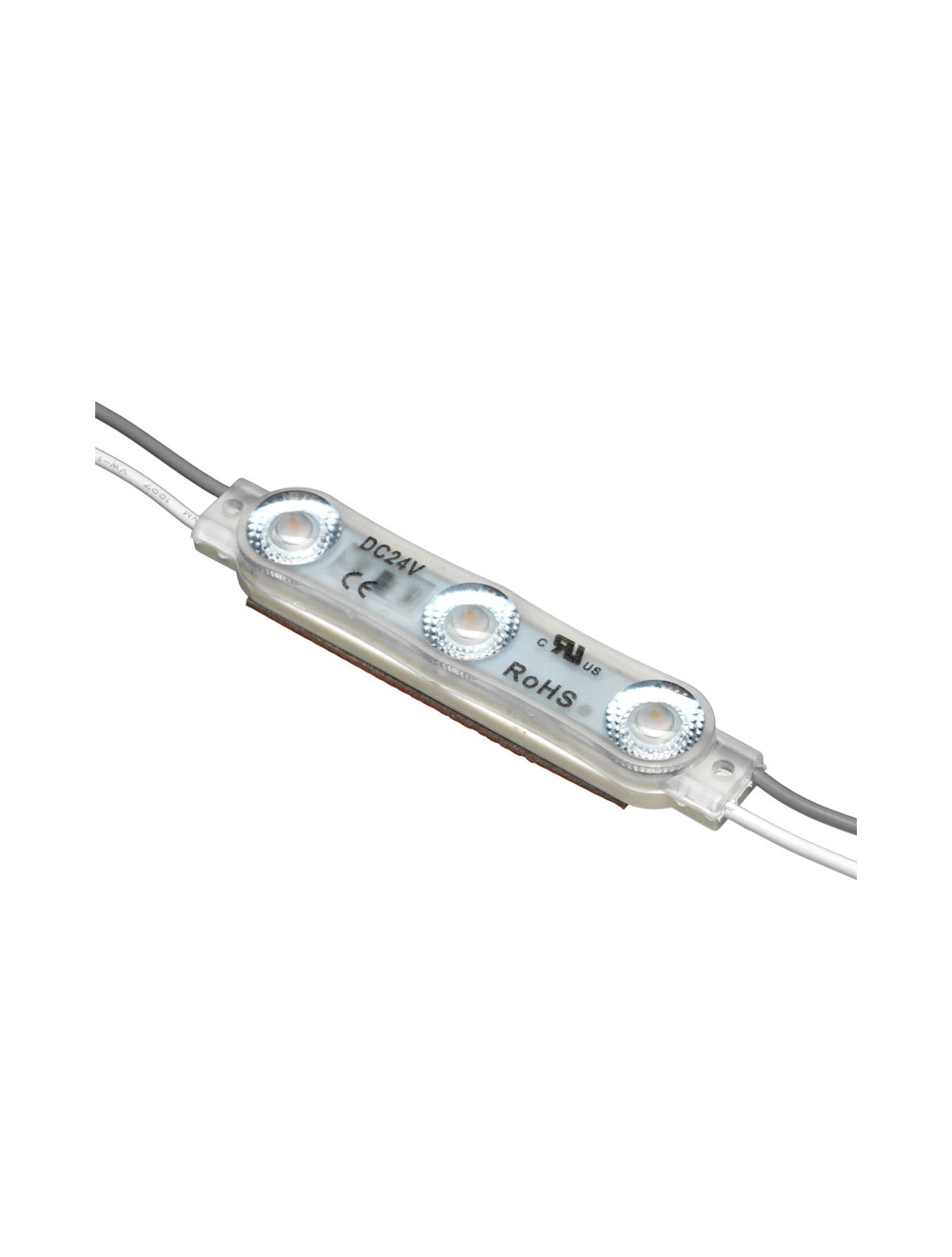

American Lighting CR3-24VDC-30-5-20 24 Volt 3000K LED Channel Ray

The American Lighting CR3-24VDC-30-5-20 is a 170-inch (approximately 14.2 feet) LED Channel Ray module designed for 24V DC applications.

$93.96

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CR3-24VDC-30-5-20

Color Temperature

3000K

6000K

Qty:

Details

Performance
• Input Voltage: 24V DC
• UV Inhibitor: N
• Wattage: 1.08 W/module
• CCT: 3000K | 6000K
• CRI: ≥70
• Lumens: 68
• Cut Increment: 5 in
• Max Run: 20 units
• Optics (Degree): 170 degrees
• Rated Life (Hr): 50,000 Hours
• Temperature Range: -25C (-13F) to 60C (140F) degrees
• Finish: White
• Style: 3LED
• Quantity: 20
• Spacing: 5 Inch

Physical
• Weight: 0.50 lbs
• Width: 0.57 Inch
• Length: 170 Inch
• Height: 0.32 Inch

Certification
• Safety Rating: cURus Recognized
• IP Rating: IP66
• Location Rating: Damp
• Indoor: Y
• Outdoor: Y
• ROHS: Y

Specifications

More Information
Part Number	CR3-24VDC-30-5-20
Manufacturer	American Lighting
Watts	1 Watt
Lumens	68
CRI	≥70
Color Temperature	3000 Kelvin, 6000 Kelvin
Beam Angle	170°
Input Voltage	24V
Rated Life	50,000 hours +
IP_Rating	IP66
Minimum Operating Temperature	-25C
Maximum Operating Temperature	60C
Dimensions	170" x 0.57" x 0.32"
Length	170
Width	0.57
Height	0.32
Certifications	, ,
UPC Code	714176030630
Lead Time	Ships in 2-3 Business Days
