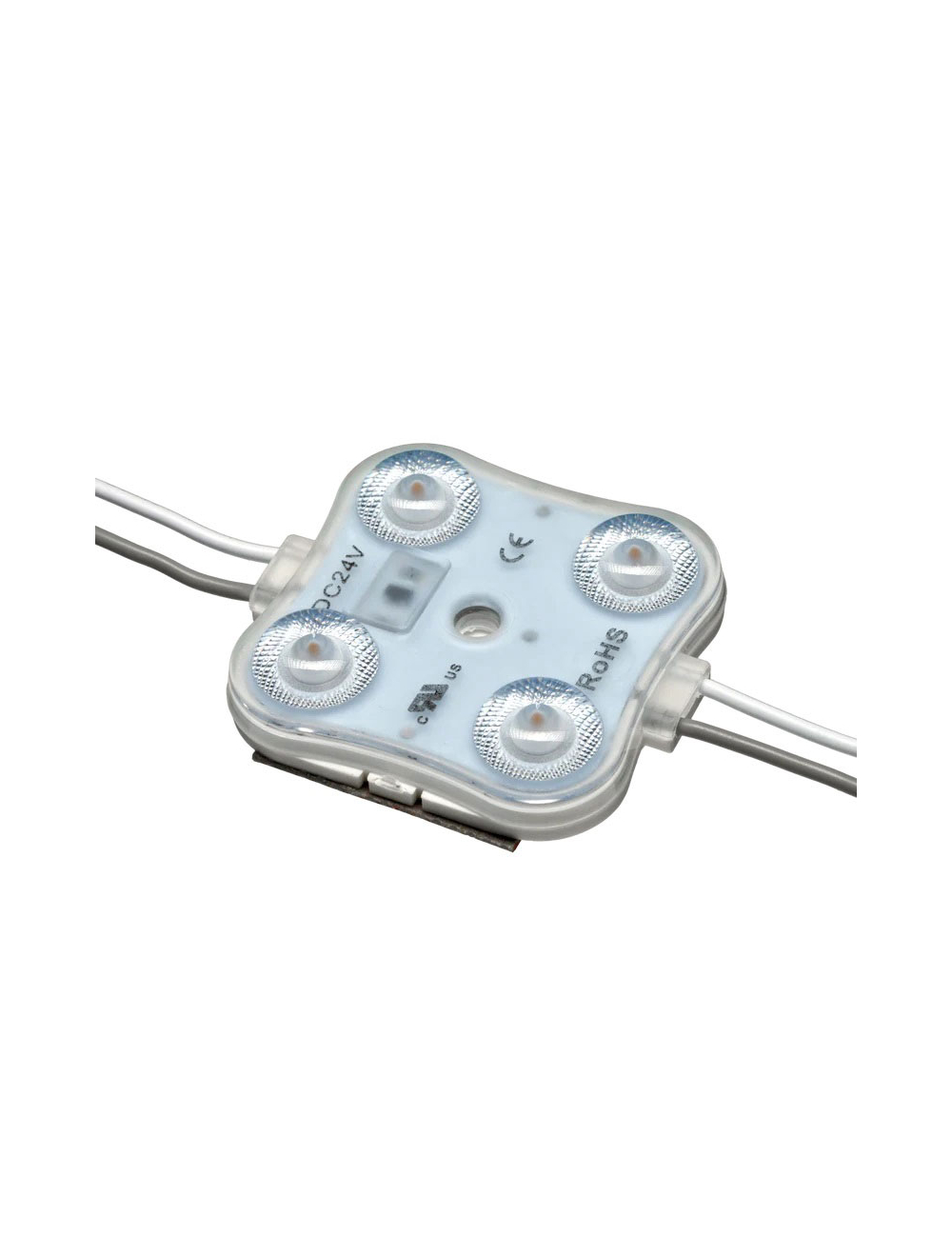

American Lighting CR4-24VDC-60-5-20 24 Volt 6000K LED Channel Ray

American Lighting 167.8in 6000K LED channel ray offers high quality optics with each module creating broad, uniform illumination without hotspots and has adhesive backing for a simple set up.

$124.56

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CR4-24VDC-60-5-20

Details

Performance
• Input Voltage: 24V DC
• UV Inhibitor: N
• Wattage: 1.2 W/module
• CCT: 6000K
• CRI: ≥70
• Lumens: 220
• Cut Increment: 5.9 in
• Max Run: 20 units
• Optics (Degree): 170 degrees
• Rated Life (Hr): 50,000 Hours
• Temperature Range: -25C (-13F) to 60C (140F) degrees
• Finish: White
• Style: 4LED
• Quantity: 20
• Spacing: 5.9 Inch

Physical
• Weight: 0.75 lbs
• Width: 1.73 Inch
• Length: 167.8 Inch
• Height: 0.4 Inch

Certification
• Safety Rating: cURus Recognized
• IP Rating: IP66
• Location Rating: Damp
• Indoor: Y
• Outdoor: Y
• ROHS: Y

Specifications

More Information
Part Number	CR4-24VDC-60-5-20
Manufacturer	American Lighting
Watts	1 Watt
Lumens	220
CRI	≥70
Color Temperature	6000 Kelvin
Beam Angle	170°
Input Voltage	24V
Rated Life	50,000 hours +
IP_Rating	IP66
Minimum Operating Temperature	-25C
Maximum Operating Temperature	60C
Dimensions	167.8" x 1.73" x 0.4"
Length	167.8
Width	1.73
Height	0.4
Certifications	, ,
UPC Code	714176030661
Lead Time	Ships in 2-3 Business Days
