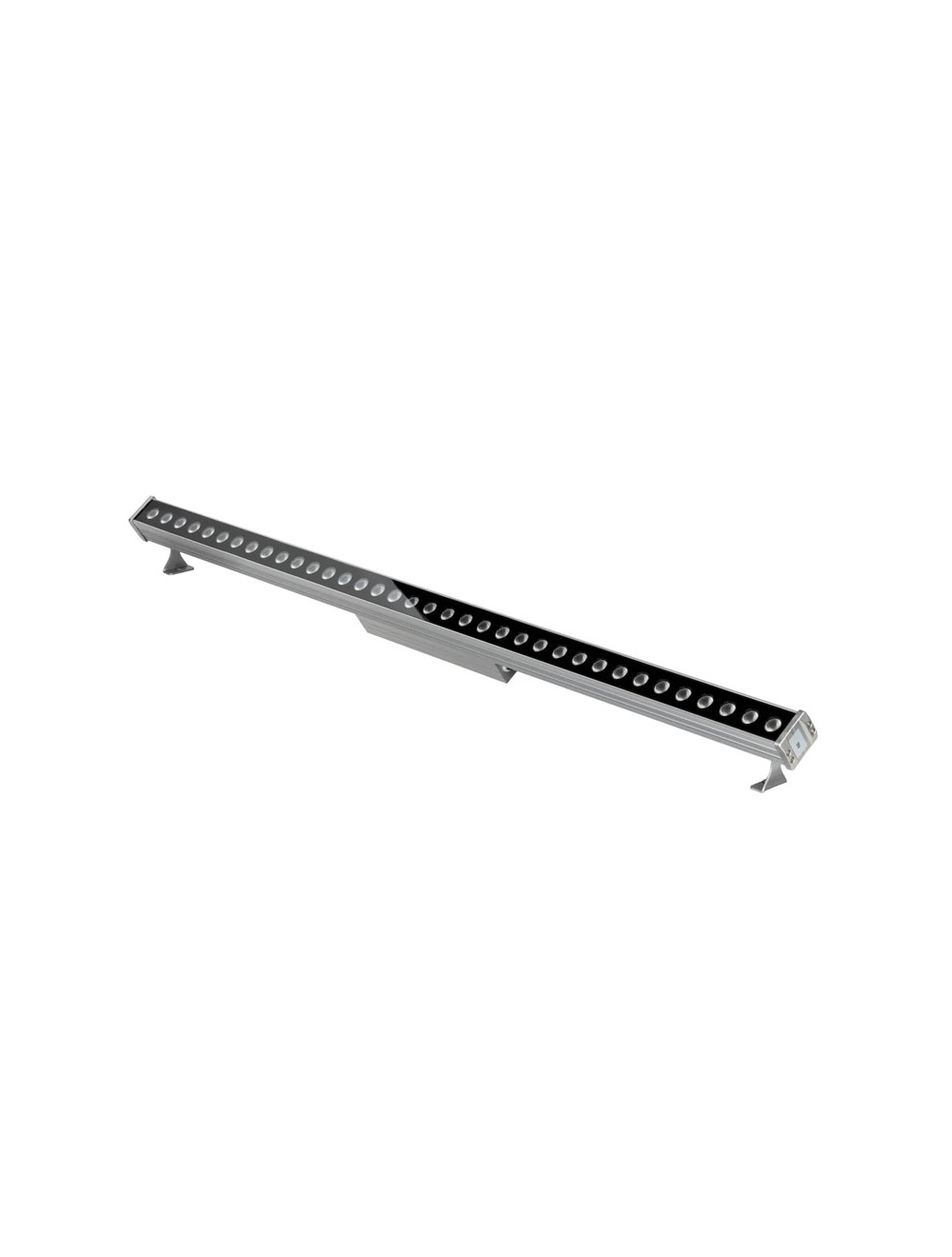

American Lighting CRSA-G4-30K-SV 40 Watt 100-277 Volt Corsa Graze 3000K LED

The Corsa Graze Linear Static White wall washer is a low-profile fixture that uses powerful 3000K warm white LEDs to create high-impact illumination, both indoors and out.

$937.44

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

CRSA-G4-30K-SV

Color Temperature

3000K

RGBW + $1,178.64

Qty:

Details

Performance
• Input Voltage: 100-277V AC
• Output Voltage: 24V
• Input Frequency: 50-60Hz
• Lens Details: PC
• Wattage: 40 W
• CCT: 3000K | RGBW
• CRI: 80
• Mounting: 18
• Power Factor: >0/9
• Lumens: 2900
• Optics (Degree): 30 degrees
• Rated Life (Hr): 30,000 Hours
• Temperature Range: -20C (-4F) to 45C (113F) degrees
• Dimming: PMV 0-10V
• Finish: Silver
• Quantity: 36

Physical
• Weight: 9.00 lbs
• Width: 2.09 Inch
• Length: 48 Inch
• Height: 4.13 Inch

Certification
• Safety Rating: cETLus Listed
• IP Rating: IP65
• Location Rating: Wet
• Indoor: Y
• Outdoor: Y
• ROHS: Y
• FCC: Y

Specifications

More Information
Part Number	CRSA-G4-30K-SV
Manufacturer	American Lighting
Watts	40 Watts
Lumens	2900
CRI	80
Color Temperature	RGBW, 3000 Kelvin
Beam Angle	30°
Input Voltage	100V-277V
Rated Life	30,000 hours +
Minimum Operating Temperature	-20C
Maximum Operating Temperature	45C
Dimensions	48" x 2.09" x 4.13"
IP_Rating	IP65
Certifications	, , ,
Lead Time	Ships in 2-3 Business Days
UPC Code	714176032818
