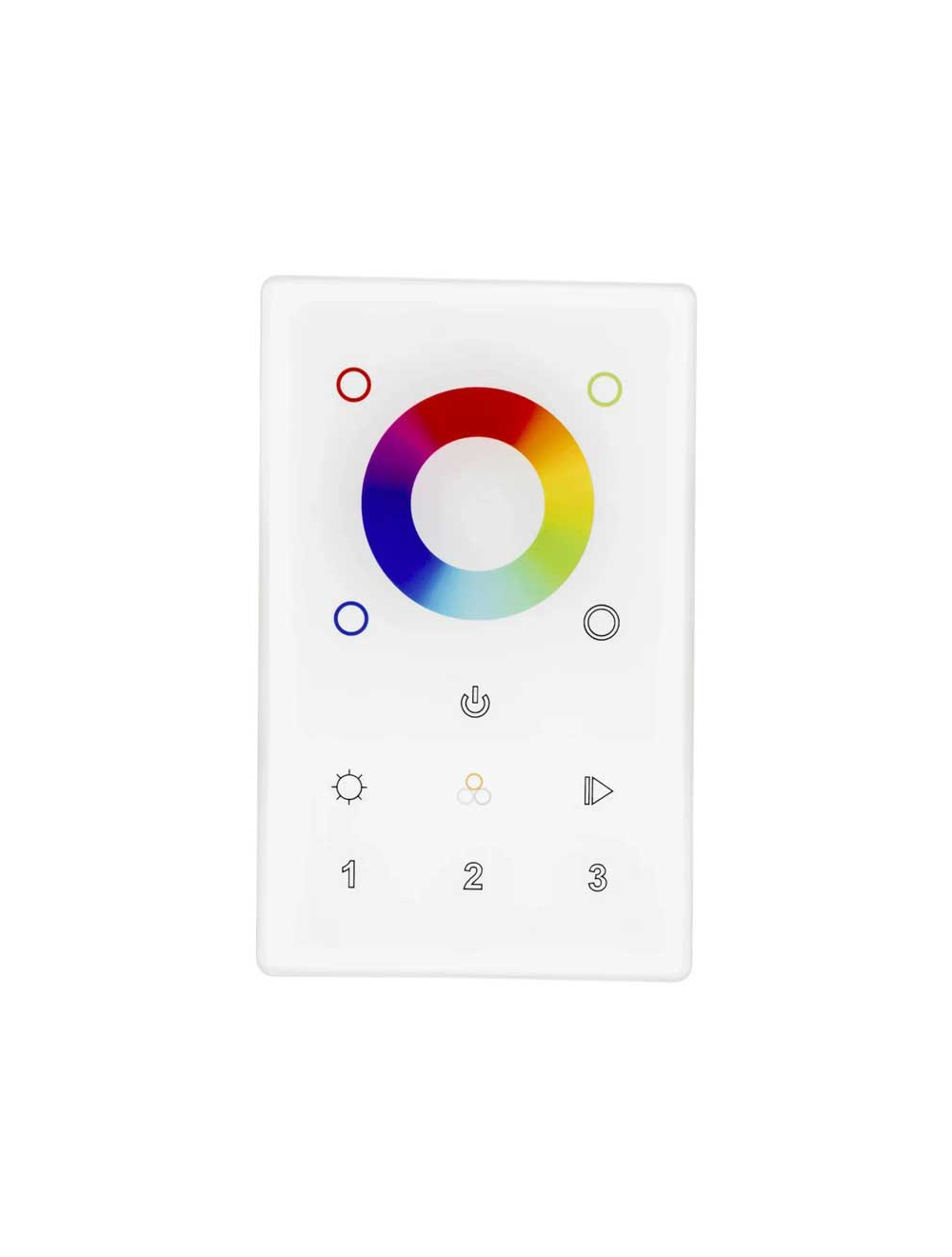

American Lighting DMX-3Z 12-24 Volt RGBW DMX Wall Control

When reliable signals are a must, the RGBW wall plate controllers are a great fit. Clean touch-sensitive wall plates blend to their surroundings while keeping controls simple and easy.

$175.23

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

DMX-3Z

Details

Features
• Touch-sensitive configuration & operation
• Includes 4 color (Red, Green, Blue, White) as well as 10 auto presets
• Options available for single zone or multiple zone control needs
• Includes 3 built-in RGB dynamic White blending modes
• Features full range dimming capabilities (1-100%)
• Requires 12-24V DC input and DMX receiver
• **Not compatible with pixel products**

Performance
• Input Voltage: 12-24V DC
• Input Frequency: DMX
• Output Frequency: DMX
• Wattage: 180 W
• Temperature Range: 0C to 40C degrees
• Dimming: DMX 1 - 100%
• Finish: White
• Control: DMX

Physical
• Weight: 0.50 lbs
• Width: 1.15 Inch
• Length: 2.96 Inch
• Height: 4.75 Inch

Certification
• Location Rating: Dry
• Indoor: Y
• ROHS: Y
• FCC: Y

Specifications

More Information
Part Number	DMX-3Z
Manufacturer	American Lighting
Input Voltage	12-24V
Minimum Operating Temperature	0C
Maximum Operating Temperature	40C
Dimensions	2.96" x 1.15" x 4.75"
Watts	180 Watts
UPC Code	714176004747
Lead Time	Ships in 2-3 Business Days
Certifications	, ,
