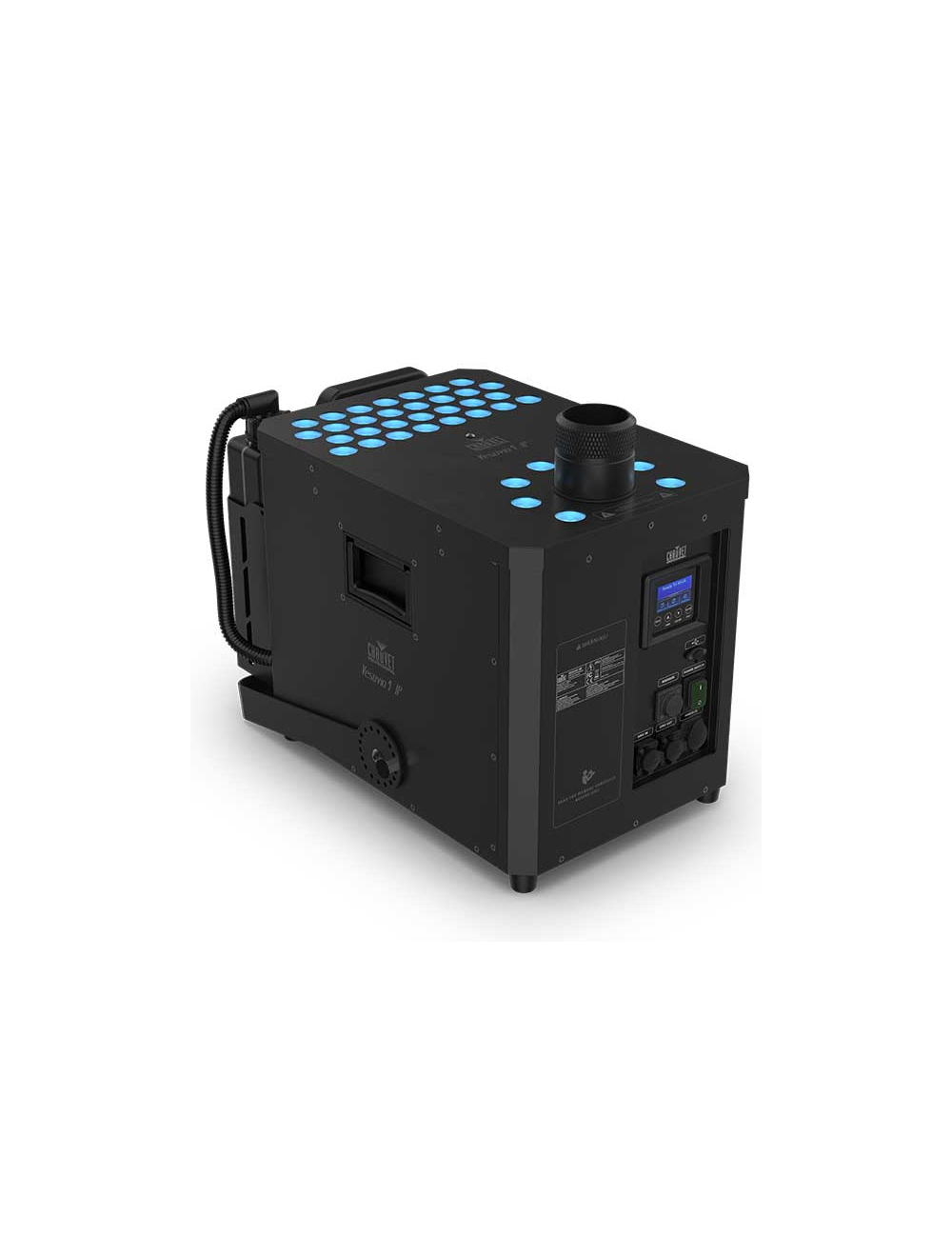

Chauvet Pro VESUVIO4IP Vesuvio 4 IP 208/230V 50/60Hz Fogger

Punch up high-impact illuminated fog bursts with an IP53-rated tour-grade unit that delivers both extreme vertical or horizontal throw and dual-zone RGBA control to create dynamic color effects bright enough for the largest outdoor festivals and indoor environments.

$4,937.50

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

VESUVIO4IP

Details

Features:
• Advanced Vertical Fogger – Creates powerful vertical fog bursts, delivering a CO₂-style effect without the need for gas or tanks.
• Outdoor-Ready Design – Rated for temporary outdoor use, providing reliable operation in wet or damp environments.
• High-Performance Output – Engineered for extreme throw distances of up to 50 ft (15 m), ensuring maximum visual impact.
• Dual-Zone RGBA Illumination – Independently controlled LED zones enable creative color effects and dynamic visuals.
• Rugged Flight Case Included – Ships in a durable touring case for easy transport and protection during rental or live event use.
• Flexible Control Options – Operate via onboard full-color display, wireless RF handheld remote, or DMX integration.
• Integrated Drainage System – Simplifies post-use maintenance with quick water evacuation and easy cleanup.
• USB-C Port – Allows convenient software and firmware uploads for future updates.
• QDF (Quick Dissipating Fluid) Required – Ensures optimal performance and clean atmospheric effects.

Specifications:
Optical
• Light Source: 37 LEDs (RGBA)
• Dynamic Effects
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Low Fluid Shutdown: No
• Standalone Color Mixing: No
• Built-in Automated Programs: Yes/No

Construction / Physical
• Dimensions: 20.79 x 13.82 x 17.32 in (528 x 351 x 440 mm)
• Weight: 72.2 lb (32.75 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, stainless steel
• Tank Capacity: 1.4 gal (5.3 l)
• Fluid Consumption: 22 ml/min
• IP Rating: IP53
• Heat-up Time: 13 min
• Maximum Runtime: 45-second bursts

Connections
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
• Firmware upgrades: USB type-C

Control
• Control Protocol: [DMX, RDM, RF Remote]
• DMX Channels: 14
• Modes/Personalities: 1 personalities (14)
• On-Board Control: Yes
• Included Remote: yes

Electrical
• Input Voltage: 208 VAC, 60 Hz
• Power and Current: 2167 W, 10.43 A @ 208 V, 60 Hz
• Breaker Size: 16 A, 250 V

What's Included
• Vesuvio 4 IP
• Seetronic Powerkon Cable
• 2x Omega Brackets
• Controllers: RF Remote

Required Accessories
• Quick Dissipating Fluid (QDF)
• Compatible Mounting Options: [140DX OMEGA BRACKET, M12 BOLT]

Optional Accessories
• CTC-50G
• CTC-50HCN
• RIGLINK POWERKON CABLES
• RIGLINK DMX CABLES
