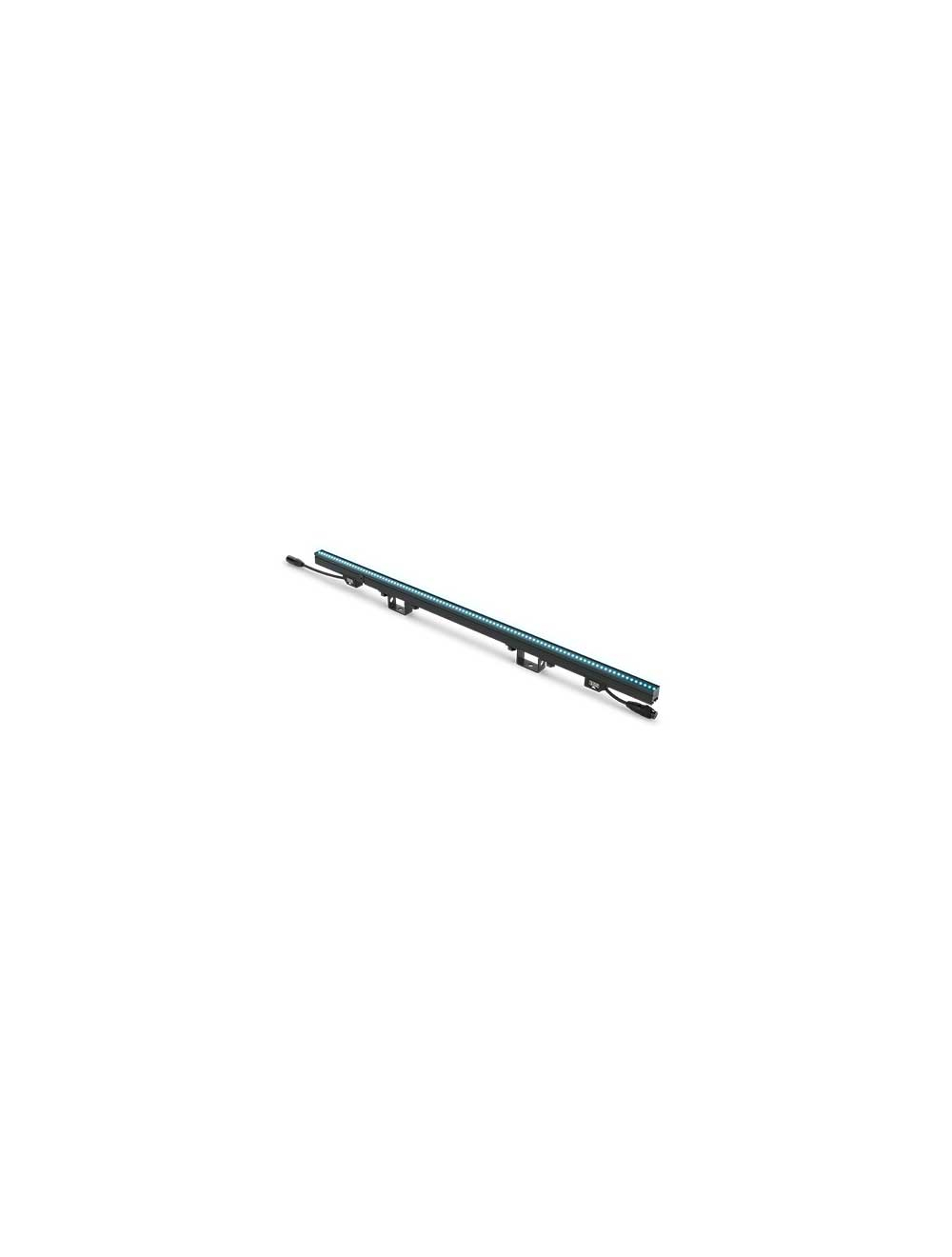

Chauvet Pro EPIXL10IP Epix Line 10 IP Tri-color RGB 21 Watts 48 Volts

Features:
• Outdoor-Rated Pixel Strip – Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
• Flexible Connectivity & Optics – Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
• Compact & Serviceable Design – Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
• Streamlined Setup – Native compatibility with the Epix Mapping System and MVR support makes configuration fast and intuitive.

Specification:
Optical
• Light Source: 100 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
• Beam Angle: 114.6°
• Field Angle: 161.9°
• Viewing Angle: 170°
• Lumens: 1,385
• Pixel Pitch: 10 mm
• Display Refresh Rate: 4,900 Hz

Dynamic Effects
• Strobe Rate: 0 to 30 Hz

Construction / Physical
• Dimensions (no filter): 39.37 x 1.161 x 2.862 in (1,000 x 29.5 x 72.7 mm)
• Dimensions (square filter installed): 39.37 x 1.228 x 2.862 in (1,000 x 31.20 x 72.7 mm)
• Dimensions (round filter installed): 39.37 x 1.969 x 2.862 in (1,000 x 50 x 72.7 mm)
• Weight: 2.89 lb (1.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
• IP Rating: [IP65]

Connections
• Power Supply (remote driver): Epix D4 IP
• Physical Linking (Standard Mode): 10 inline EPIX Line 10 IP
• Physical Linking (Hi Power Mode): 6 inline EPIX Line 10 IP
• Data Connectors: 4-pin IP65 XLR
• Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
• Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
• Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
• Max. cable length (shielded cables) between each Epix Line: 60 ft (18 m)
• Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
• Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
• Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)

Control
• Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
• DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
• Video Refresh Rate: 60 Hz

Electrical
• Input Voltage: 48VDC
• Power and Current (Standard): 21 W, .44 A @ 48 VDC
• Power and Current (Hi Power): 32 W, .671 A @ 48 VDC

Certifications / Qualifications
• Compliance: [CE, MET, FCC, ETL, UKCA]
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What's Included
• EPIX LINE 10 IP
• Interlocking Bracket
• Milky White Square Filter (Installed)
• Black Stealth Square Filter (Included)
• Milky White Round Filter (Included)
• 2X Mounting Brackets (Installed)

Required Accessories
• Optional Software (mapping): KLSTR
• Controller (required): [Epix D4 IP]
• Compatible Mounting Options: [EPIXMNTSPIGOT, M12 BOLT]

Optional Accessories
• EPIXMNTSPIGOT (Epix Mounting Bracket: Spigot Adapter 28mm)
• EPIXMNTANGLE (Epix Mounting Bracket: +/- 120° Angling Adapter)
• Clamps
• RIGLINK 4-PIN XLR Cables
• Flight Case
