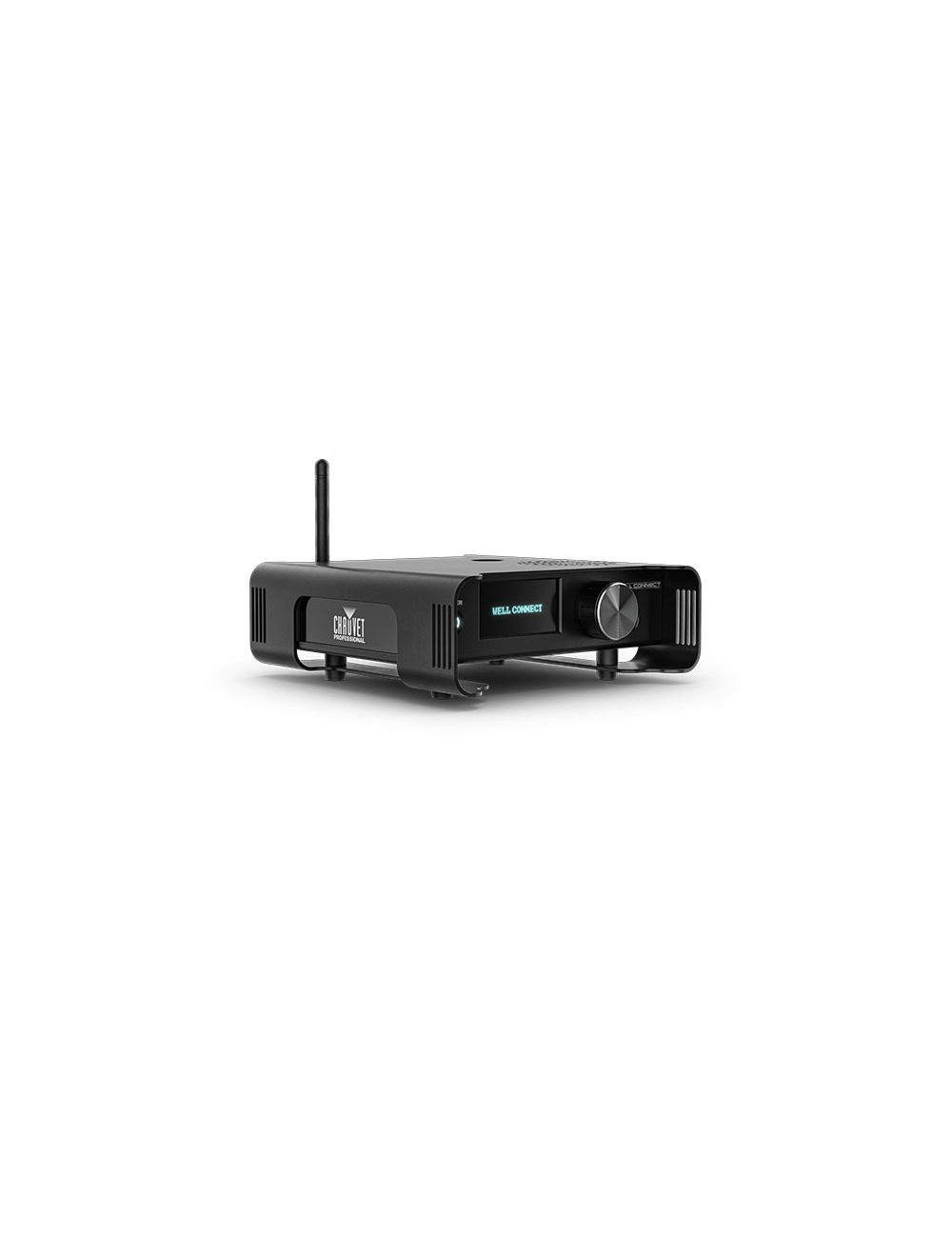

Chauvet Pro WELLCONNECT Well Connect Wireless Transceiver

Features:
• Wireless Control Hub: Compact, battery-powered Bluetooth and W-DMX/CRMX transceiver designed to control WELL fixtures or any DMX lighting system.
• App-Driven Operation: Pairs seamlessly with the ConnectFX app on iOS and Android for intuitive wireless control of scenes and effects.
• Flexible Output Options: Supports both wireless & wired DMX protocols, offering reliable signal distribution for any setup.
• 12-Hour Battery Life: Integrated lithium-ion battery delivers all-day wireless operation; USB-C port provides continuous power when needed.
• Onboard Playback: Trigger pre-programmed scenes directly from the unit’s display—no console required.
• Rugged & Road-Ready: Durable aluminum housing and M12 threaded bolt ensure quick, secure mounting in demanding environments.
• Smart Firmware Management: Web-based UI allows for easy firmware updates and configuration.

Specification:
Construction / Physical
• Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)
• Weight: 1.8 lb (0.9 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy

Connections
• Power Input: USB-C
• Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45

Control
• Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN

Electrical
• Input Voltage: 5 VDC, 2A via USB-C

Battery
• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 8 hours
• Battery Life: 12 hours
• Battery Power: 12 V, 24 Ah

Certifications / Qualifications
• CE, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
• WELL CONNECT
• EPSU USB-A
• USB-A to USB-C cable

Required Accessories
• Required Software: Chauvet CONNECT app

Optional Accessories
• VIP Signal Distributor, VIP Media Server
