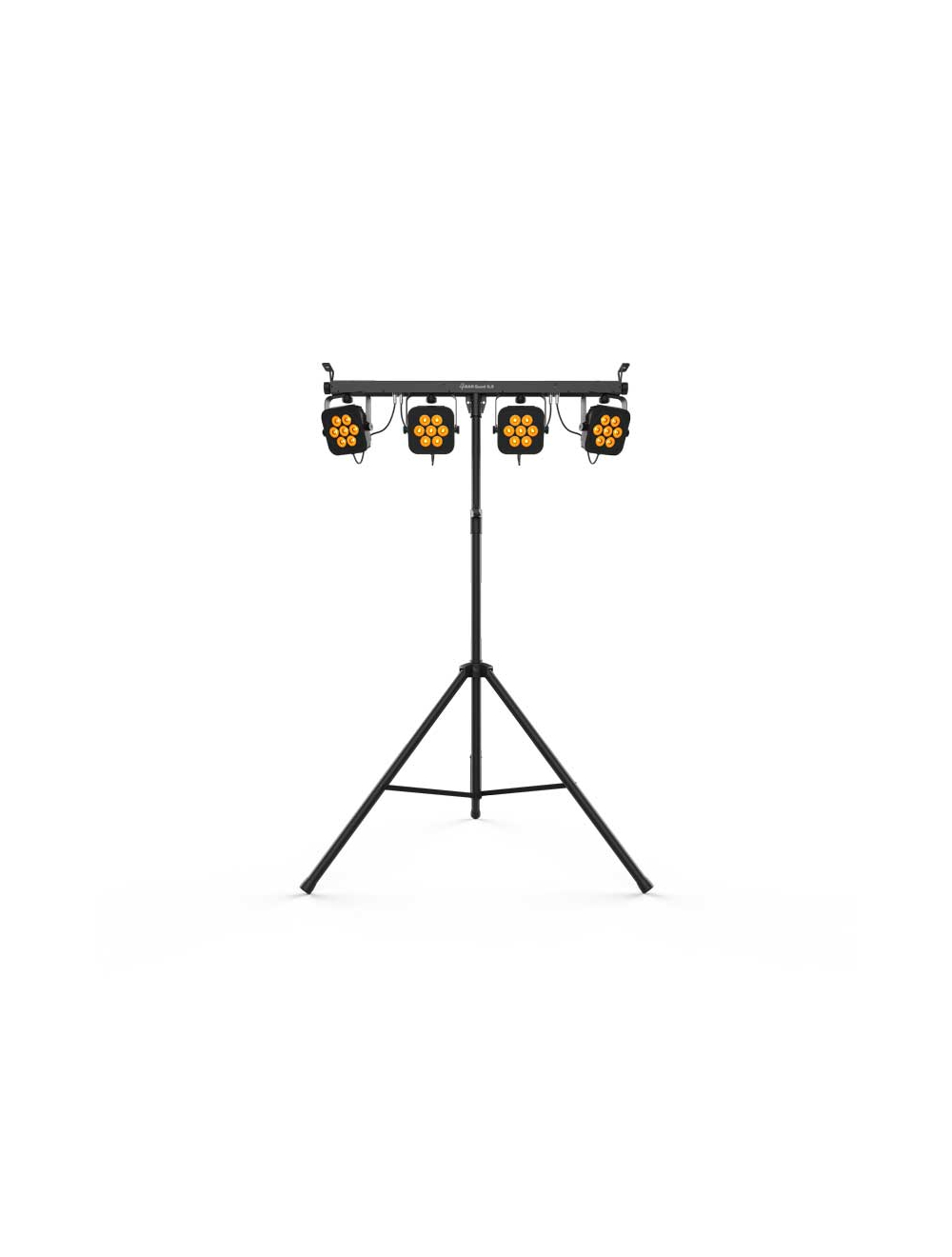

Chauvet DJ 4BARQUADILS 28 LEDs 98 Watt 100-240 Volt All-in-One RGBA 4-Par Wash Light System with Tripod

4BAR Quad ILS is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. But for real convenient control, compatibility with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods.
$729.99
Lead Time
Ships in 2-3 Business Days
Return Policy
30 Days Terms
SKU
4BARQUADILS
Highlights
• Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
• ILS compatibility for use in the ILS ecosystem
• Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
• Out of the box wireless control with included footswitch or optional IRC-6 controller
• Easily set up and tear down in minutes with the included tripod stand and carrying bags
• D-Fi™ USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
• Achieve total room or stage coverage with 4 individually adjustable heads
• Increase mounting options by safely mounting to truss using built-in bolts

Specifications
• DMX Channels: 4, 6 or 19
• DMX Connectors: 3-pin XLR
• Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 23°
• Illuminance: 2,353 lux @ 2 m (per pod)
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
80 W, 1.2 A @ 120 V, 60 Hz
78 W, 0.6 A @ 230 V, 50 Hz
• Weight: 33.07 lb (15.00 kg)
• Size: 56.46" x 5.31" x 19.57"
• Approvals: CE, RoHS, UKCA
• Operating Frequency (D-Fi): 2.412 to 2.484 GHz
• Operating Frequency (foot switch): 433 MHz
• Max Unobstructed Distance (foot switch): 100 ft (30.5 m)
• Footswitch battery: 9 V
• Stand Height: 7 ft 4 in (2.2 m)
• Fits Tripod Sizes: 1.5 in (36.80 mm)
• Bracket Mounting Hole: M10 (1.5 mm pitch)
• Weight (Controller): 1.2 lb (0.6 kg)
• Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Optional Controllers: IRC-6, D-Fi USB

What's Included
• 4BAR Quad ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
More Information
Part Number 4BARQUADILS
Manufacturer Chauvet DJ
Watts 98 Watts
Lumens 2,353 lux @ 2 m (per pod)
Color Temperature RGBA
Beam Angle 14°
Input Voltage 100V-240V
Rated Life 50,000 hours +
Dimmable No
Dimensions 56.46" x 5.31" x 19.57"
Certifications ,
Lead Time Ships in 2-3 Business Days
UPC Code 781462223502
