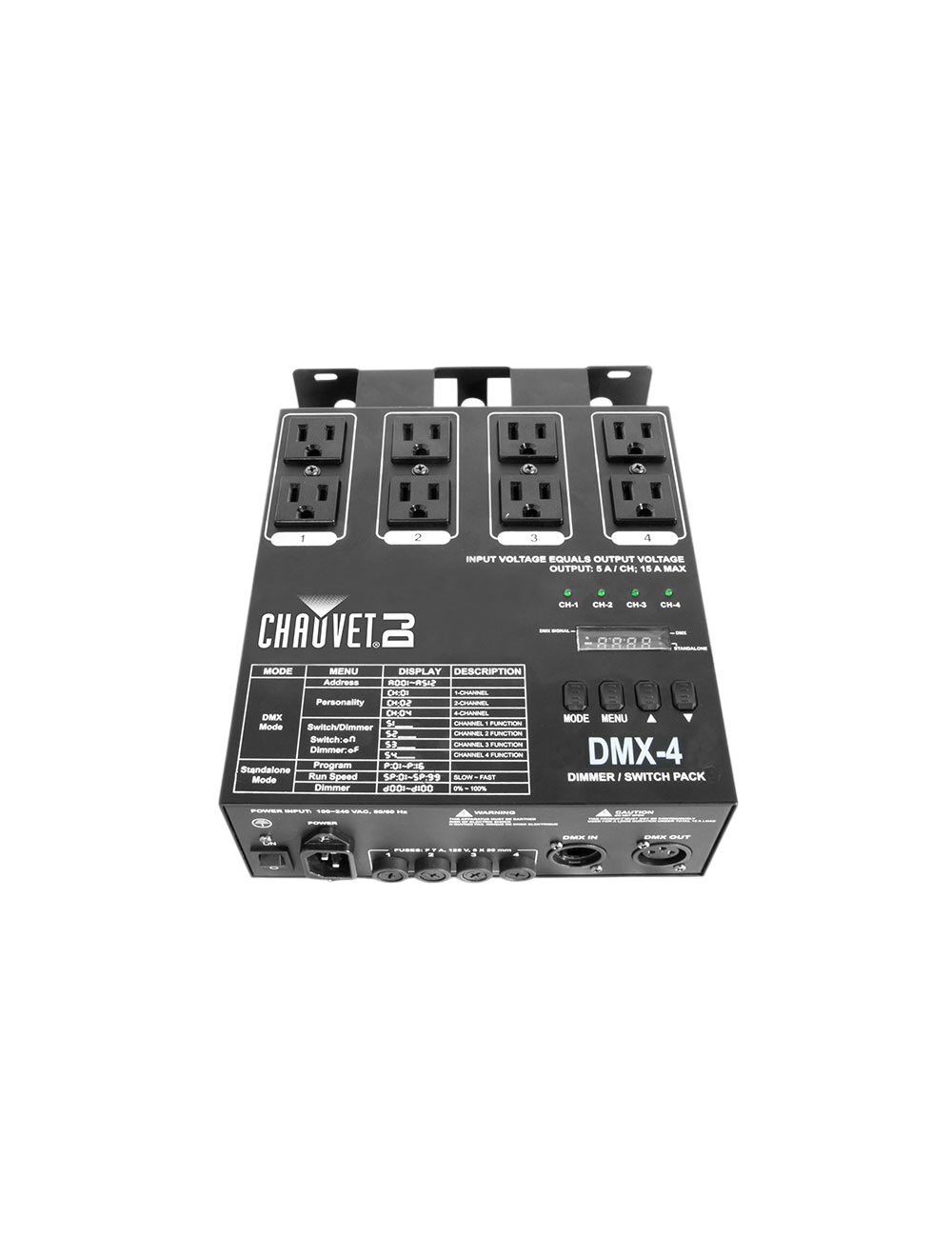

It’s a 4-channel dimmer/relay pack providing DMX control for on/off or dimming to units not equipped with DMX on their own. The fixture is optimized for use with small LED fixtures to prevent ghosting and flickering.
Highlights • 4-channel dimmer/switch pack with up to 5 amps per channel (15A max) • Auto on/off when DMX is detected or removed • Provides DMX control for on/off or dimming to non-DMX fixtures • Built in circuitry generates a phantom load to prevent ghosting and flickering in LED fixtures • Custom looks at your fingertips with 16 built-in, configurable chases • Easy control using standalone mode or DMX control • Increase flexibility by setting each channel as a dimmer or switch • Control up to eight units simultaneously with four duplex outlets • Monitor the status of each channel with separate LED indicators • Generate a synchronized show using easily accessible automated programs, built-in automated programs • Great control without DMX using automated programs with adjustable speeds and dimmer levels
Specifications • DMX Channels: 1, 2, or 4 • DMX Connectors: 3-pin XLR • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) • Weight: 24.63 lb (11.17 kg) • Dimensions: 20.08" x 11.42" x 8.27" • Approvals: CE
