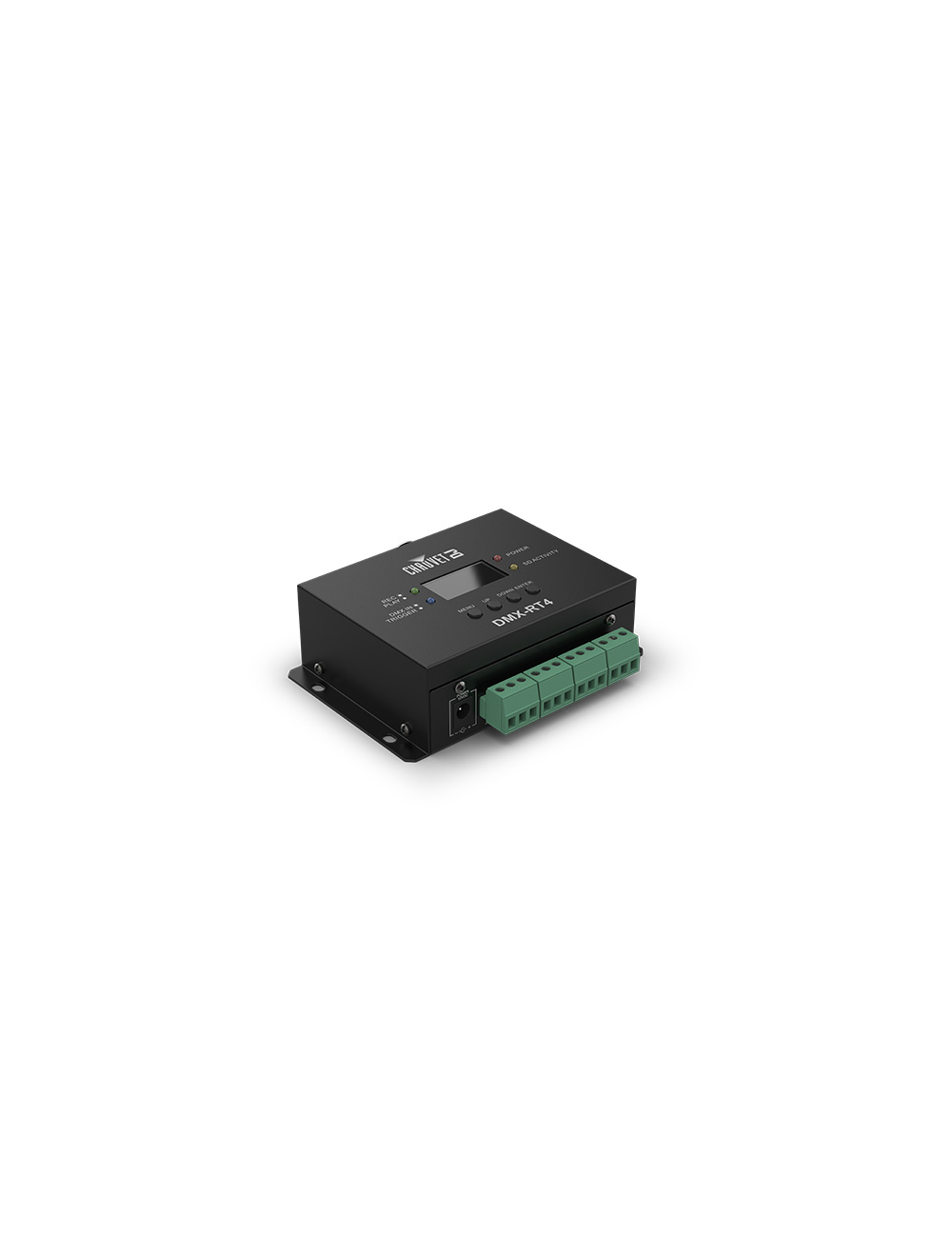

Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors.
Highlights • DMX recording and playback device with 4 independent triggers • Each trigger can be programmed and triggered separately • Copy, backup and transfer show files using the USB-C connector • Standard headphone connector (3.5mm) connects to external audio systems for amplified playback • Password protection ensures shows will not be altered • Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors • Supplies DC voltage through terminal block to power specific triggers
Specifications • DMX Channels: 3-pin XLR • Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz) • Power and Current: 1 W, 0.03 A @ 120 V, 60 Hz 1 W, 0.03 A @ 230 V, 50 Hz • Weight: 11.24 lb • Size: 18.50" x 12.60" x 11.02" • Approvals: CE, UKCA, RoHS • Compatible audio formats: MP3 (32-320kbps), WAV (8 or 16bit only) • Onboard memory: 32 GB • Filename max length (MP3/WAV): 12 characters • Filename max length (show file): 11 characters • Trigger Type: auto, toggle, N/O or N/C • Terminal Block output: 12 VDC, 100 mA
WHAT'S INCLUDED • DMX-RT4 • External power supply • Quick Reference Guide
