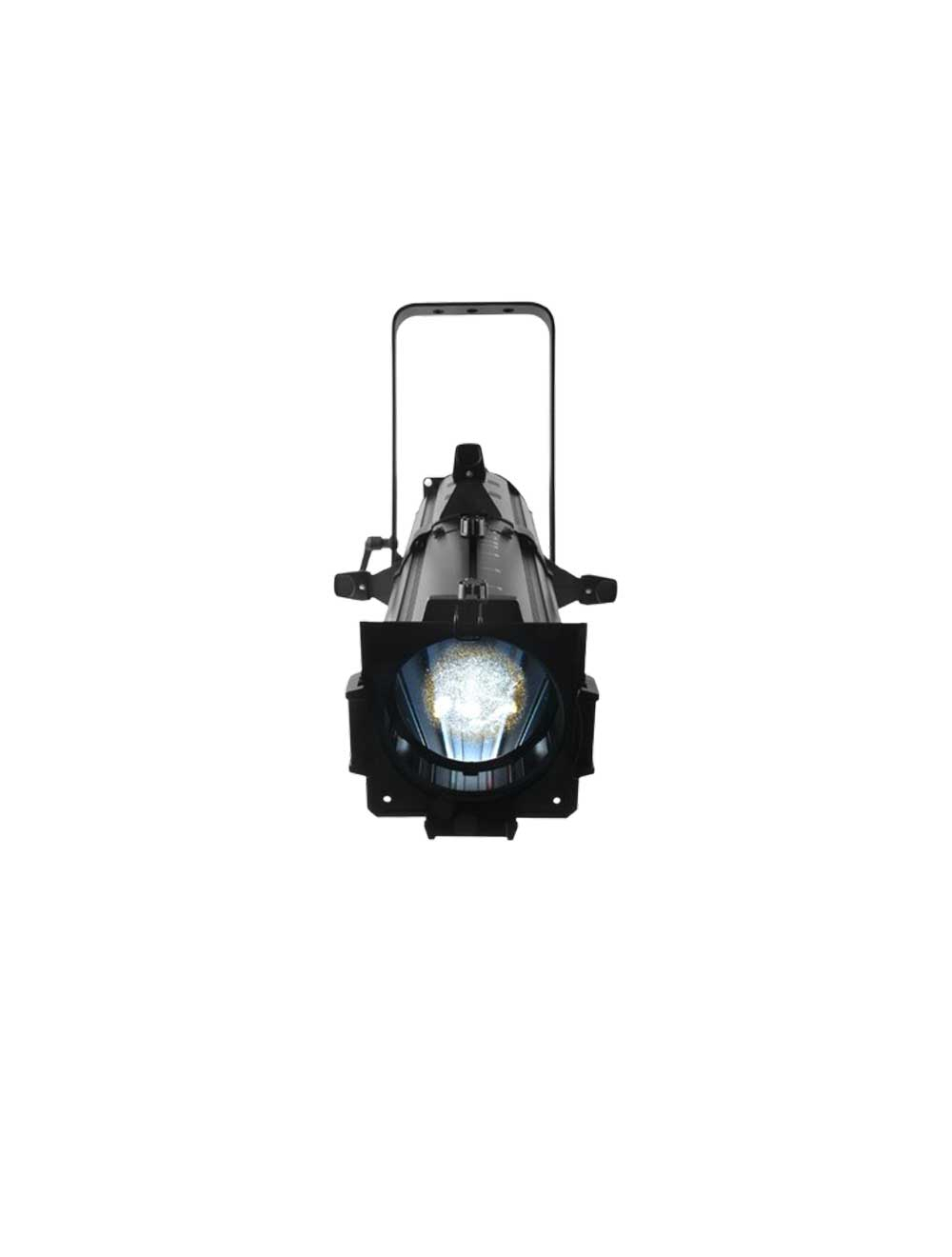

EVE E-100Z is a powerful spot fixture featuring sharp pattern projection with a 100 W warm white LED light source. It’s designed for mobile and installation applications.
Highlights
• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• Flicker-free operation suitable for on-camera use
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation
Specifications
• DMX Channels: 1 or 3
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 30 Hz
• Zoom Angle: (manual): 14° to 30°
• Illuminance: (14°): 15,100 lux @ 2 m
(30°): 3,800 lux @ 2 m
(14°): 3,238 lux @ 5 m
(30°): 829 lux @ 5 m
• Power Linking: 9 units @ 120 V; 16 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
106 W, 0.9 A @ 120 V, 60 Hz
103 W, 0.5 A @ 230 V, 50 Hz
• Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
• Weight: 14.33 lb (6.50 kg)
• Size: 13.78" x 13.39" x 30.91"
• Approvals: CE, MET
• CRI: 80
• Color Temperature: 3,500 K
• Accessory Holder/Gel Frame Size: 6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm)
What's Included
• Power cord
• Gel Frame
• Framing Shutters
• Gobo Holders for Glass and Steel Gobos
• Warranty card
