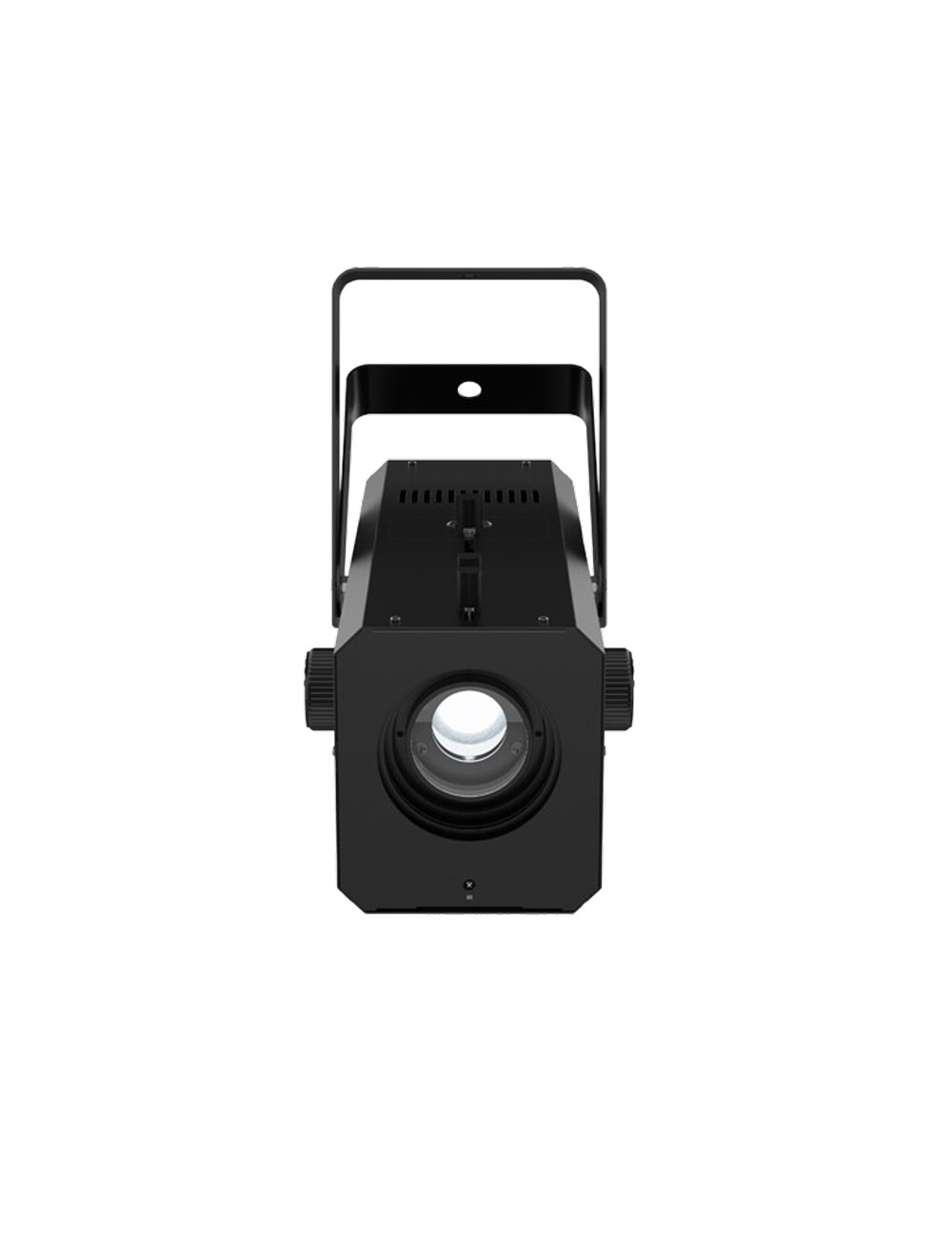

Chauvet DJ GOBOZOOM2 Gobo Zoom 2 1 LED 70 Watt 100-240 Volt High-Powered Projector

Thrill event guests with customized logos, icons and other designs with Gobo Zoom 2, a high-powered custom gobo projector with a punchy 70 W LED.

$379.99

Lead Time

In Stock - Quick Ship

Return Policy

30 Days Terms

SKU

GOBOZOOM2

Details

Highlights
• High-powered custom gobo projector with a punchy 70 W LED
• Innovative manual rotation knob allows fast indexing without gobo removal
• Manual zoom for short-throw or long-throw applications
• Includes 10 popular holiday gobos
• Access most functions via the optional IRC-6 remote
• Reduce set-up time by power linking multiple units
• Fits best in the CHS-40 VIP gear bag
• Includes 10 popular holiday gobos

Specifications
• DMX Channels: 1
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (cool white) 70 W, (3A), 50,000 hours life expectancy
• PWM Frequency: 4000 Hz
• Illuminance: (21°): 8,030 lux @ 2 m
(38°): 2,660 lux @ 2 m
• Lumens: 2,894
• Power Linking: 7 units @ 120 V; 14 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 74 W, 1 A @ 120 V, 60 Hz
72 W, 0.6 A @ 230 V, 50 Hz
• Weight: 30.86 lb (14.00 kg)
• Size: 16.14" x 15.75" x 14.17"
• Approvals: CE
• Gobo Size (E): 37.3 mm outside, 22 mm image, 1 mm max thickness
• Zoom Angle (manual): 21° to 38°
• Bracket Mounting Hole: 13 mm
• Optional Controllers: IRC

WHAT'S INCLUDED
• Gobo Zoom 2
• Power cord
• Quick Reference Guide

Specifications

More Information
Part Number	GOBOZOOM2
Manufacturer	Chauvet DJ
Watts	70 Watts
Lumens	2,894
Beam Angle	Variable
Input Voltage	100V-240V
Rated Life	50,000 hours +
Minimum Operating Temperature	-4°F
Maximum Operating Temperature	104°F
Dimmable	No
Dimensions	16.14" x 15.75" x 14.17"
Certifications
Specification Sheet	Product Dat
Lead Time	In Stock - Quick Ship
UPC Code	781462221430
