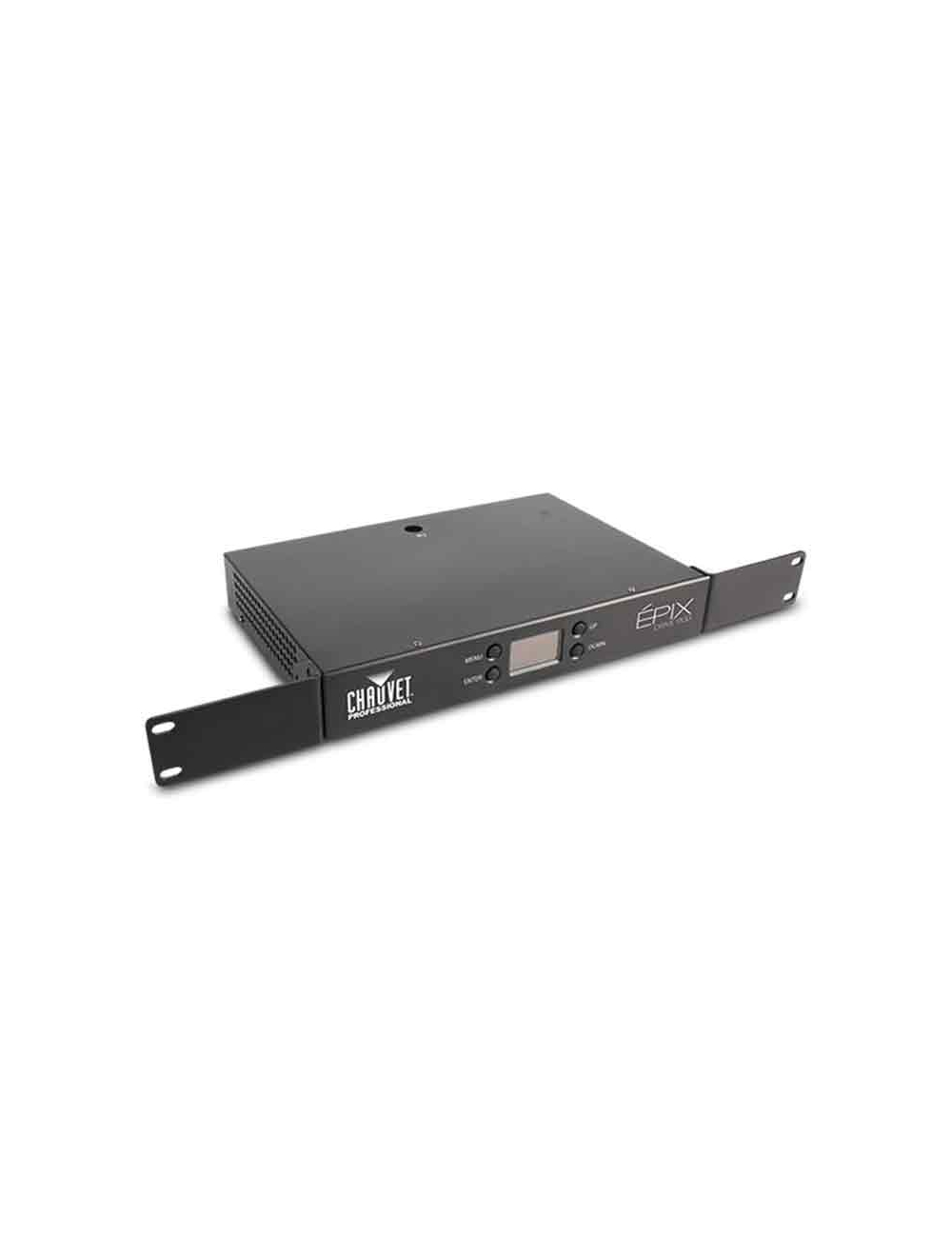

Chauvet EPIXDRIVE2000IP EPIX Drive 2000 IP - Outdoor Driver/Controller 2-ports

AT A GLANCE
• The processing and power center of the ÉPIX Tour system will drive any combination of ÉPIX Tour products, up to 2000 LEDs.
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets.
• Quickly and easily configure the ÉPIX Drive 2000 IP using the built-in OLED display and touchscreen menu.
• Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (Bar/Strip/Strip IP).
• Supports up to 20 ÉPIX Strip IP, 36 ÉPIX Strip Tours or 12 ÉPIX Bar Tours.
• Easily daisy chain fixtures directly from the 2 outputs of the Drive 2000 IP.
• Advanced power management design allows you to position the Drive 2000 IP up to 150 ft away from your first fixture (using unshielded cable).
• Works with Arkaos Media Master Express and the Kling-net control protocol for a plug-n-play system that requires almost no training to operate.

SPECIFICATIONS

CONSTRUCTION / PHYSICAL
• Dimensions (with rack ears): 14.57" x 14.17" x 7.28"
• Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
• Weight: 15.43 lb (7 kg)
• Exterior Color: Black
• Housing Material: Aluminum
• Rackmount: 2U

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Device Outputs (4-pin XLR): 2
• Physical Linking (port A): 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
• Physical Linking (port B): 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
• Data Connectors: Seetronic Etherkon IP65
• Cable Length (power): 5 ft (1.5 m)
• Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
• Total max. cable length (shielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between ÉPIX Tour or IP fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between ÉPIX Tour or IP fixtures: 100 ft (30 m)

CONTROL
• Control Protocol: Art-Net, Kling-Net, sACN
• Control Universes: 10 Art-Net/sACN Universes per port (20 total per device)
• Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, or 150

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
• Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
• Power and Current: 560 W, 2.69 A @ 208 V, 60 Hz
• Power and Current: 558 W, 2.5 A @ 230 V, 50 Hz
• Power and Current (resting): 16 W, 0.136 A @ 120 V, 60 Hz
• Power and Current (resting): 31 W, 0.147 A @ 208 V, 60 Hz
• Power and Current (resting): 31 W, 0.138 A @ 230 V, 50 Hz
• Output Voltage: 48 VDC
• Maximum Load: 10 ÉPIX Strip IP or 18 ÉPIX Strip Tour or 6 ÉPIX Bar Tour (per output)

CERTIFICATIONS / QUALIFICATIONS
• CE, MET
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
• Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• MET Listing Number: E113093-1101
• US Safety: UL 8750, UL 1573
• Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166

WHAT'S INCLUDED
• ÉPIX Drive 2000 IP
• Seetronic Powerkon IP65 power cord

REQUIRED ACCESSORIES
• Compatible Mounting Options: M12 Clamp

OPTIONAL ACCESSORIES
• ArKaos Media Master Express + KN software
• Epix Strip Tour
• Epix Strip IP
• 4PINIPEXT16IN
• 4PINIPEXT5FT
• 4PINIPEXT50FT
• Seetronic Powerkon IP65 cables
• Seetronic Etherkon IP65 cables
