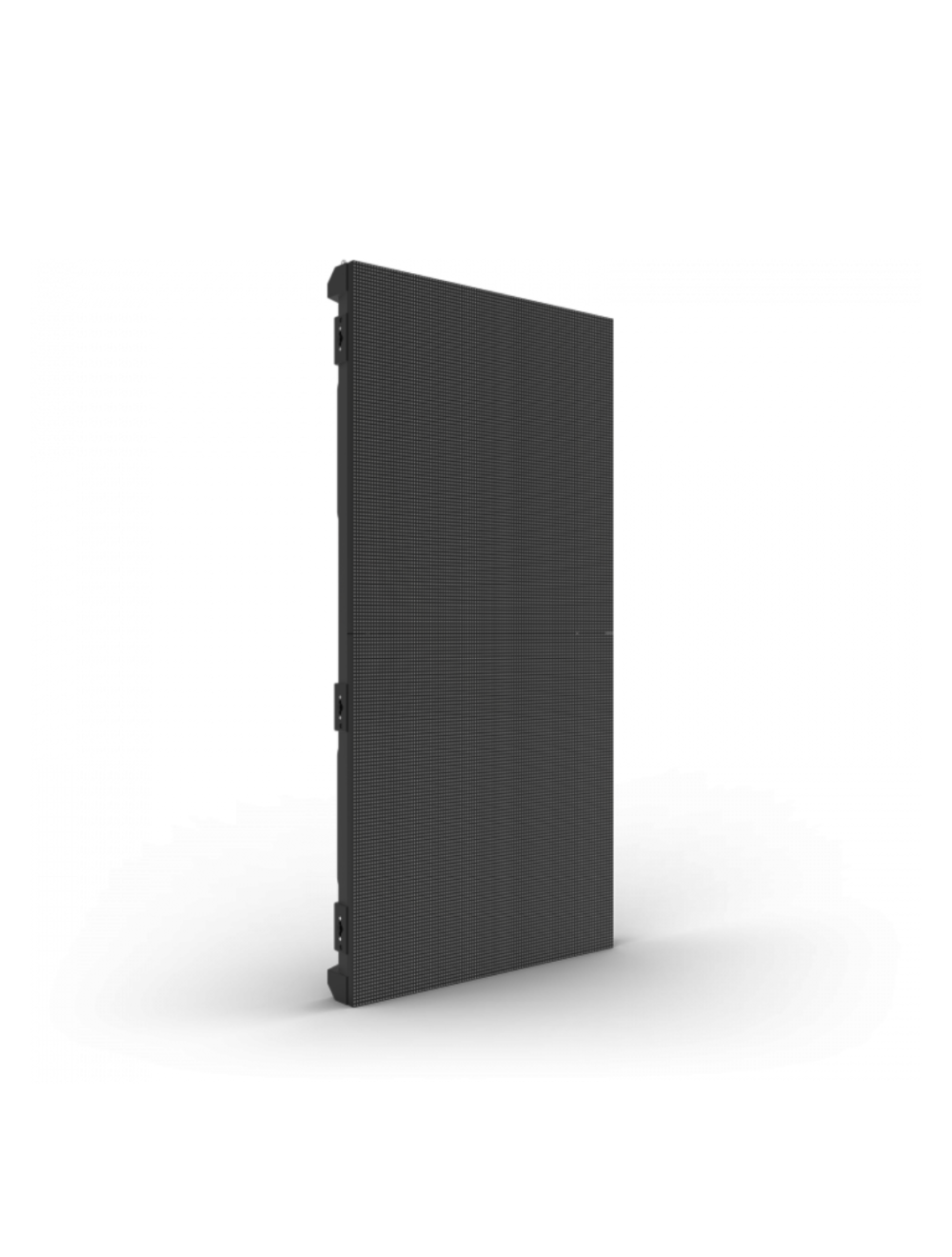

Chauvet F4XIPX4 SMD LED Video Panel 4-Pack

Features
• 4.8 mm pitch outdoor video panel works with the VIP Drive 43Nova, using the Novastar control protocol
• Black body LEDs accurately reproduce high contrast video quality
• Uses specialized LED dimming control via S-PWM (scrambled PWM), which enhances on-camera performance
• 1000 x 500 mm magnesium die-cast housing makes this product among the lightest in its class
• Magnetic LED modules and modular control box make service fast and easy
• Full front and rear service maximizes installation and maintenance
• Modular system allows for front installation onto a flat structure, maximizing installation flexibility
• Magnetic connection and positioning pins assist in hanging panels
• Dual backup power supplies for more stable displays
• Intelligent modules with dedicated memory improve the image quality and simplify maintenance

Specifications
• Light Source: 21,632 LEDs (tri-color RGB) SMD 1921, 50,000 hours life expectancy
• Color Wavelength: red (615 to 630 nm), green (515 to 535 nm), blue (460 to 475 nm)
• Viewing Angle: 140°
• Calibrated Illuminance: 4.500 NITS
• Maximum Illuminance: 5,000 NITS
• Contrast Ratio: 3,300 :1
• Pixels: 104 x 208
• Pixel Pitch: 4.8 mm
• Minimum Viewing Distance: 13 ft (4m)
• Pixel Density: 43,264/m2
• Display Refresh Rate: 3,840 Hz (S-PWM)
• Dimensions: 19.69 x 2.56 x 39.37 in (500 x 65 x 1000 mm)
• Weight: 30 lb (13.6 kg)
• Exterior Color: Black
• Housing Material: Magnesium die-cast
• Maximum Vertical Hang: 23 panels
• Maximum Horizontal Hang: 17 panels
• Transparency: 0%
• Power Connection: Edison (Local) plug to Seetronic powerKON® IP65
• Power Input: Seetronic powerKON® IP65
• Power Output: Seetronic powerKON® IP65
• Data Connectors: Seetronic etherKON® IP65
• Cable Length (signal extension): 4 ft (1.2 m)
• Cable Length (power): 6 ft (1.8 m)
• Cable Length (power extension): 6 ft (1.8 m)
• Control Protocol: Novastar
• Maximum Panels/VIP Drive 43Nova 2: 30/port, 108/Drive (4 ports) (may load up to 120 panels/drive if overlapping video content)
• Maximum Panels/VIP Drive 83R Nova: 30/port, 216/Drive (8 ports) (may load up to 240 panels/drive if overlapping video content)
• Maximum Panels Wide/VIP Drive 43 Nova 2: 18 @ 1920 wide resolution
• Maximum Panels Wide/VIP Drive 83R Nova: 36 @ 3840 wide resolution
• Maximum Strips Tall/ VIP Drive 43 Nova 2: 6 @ 60Hz
• Maximum Strips Tall/ VIP Drive 83R Nova: 6 @ 60Hz
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
• Power and Current: 330 W, 2.74 A @ 120 V, 60 Hz
• Power and Current: 326 W, 1.56 A @ 208 V, 60 Hz
• Power and Current: 327 W, 1.42 A @ 230 V, 50 Hz

Included
• 4 x F4IP
• 1 x Road case
• 1 x Seetronic powerKON® IP65 power cord
• 4 x Seetronic powerKON® IP65 power linking cords
• 4 x Seetronic etherKON® IP65 signal linking cords
