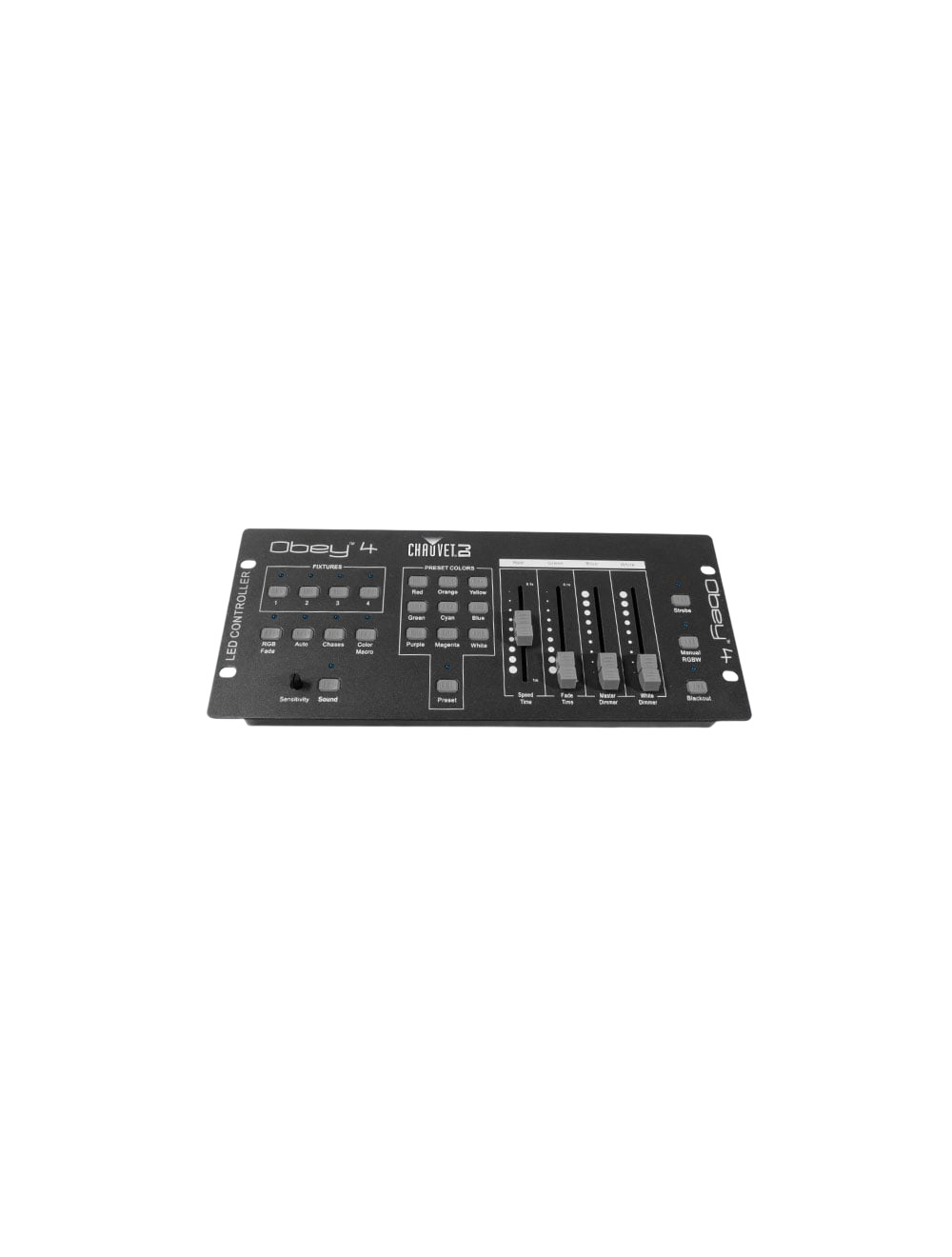

It’s a compact DMX controller for LED wash lights with 3- or 4-channel modes—red, green, blue and white/amber—for easy color-mixing control. It has built-in automated, sound-activated or manual playback options and can control fixtures in four different zones—independently of each other.
Highlights • Compact DMX controller designed for LED fixtures with up to 4 channels – Channel 1: red – Channel 2: green – Channel 3: blue – Channel 4: white (or amber) • Easily controls up to 4 separate fixtures • Increase effects by simultaneously operating each fixture in different playback modes with variable fade times • Increase flexibility with playback options that include manual RGBA/RGBW, automated and sound-activated mode • Playback modes: – Preset: 9 built-in colors – Chases: manually trigger automated programs – Color macro: manually scroll through the color spectrum – RGB fade: automatically scroll through the color spectrum – RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture – Auto: randomly selects different colors for each fixture • Increase control with adjustable audio sensitivity as well as strobe and blackout effects
Specifications • DMX Channels: 16 • DMX Connectors: 3-pin XLR • Strobe Rate: 0 to 33 Hz • Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz) • Weight: 24.91 lb (11.30 kg) • Size: 17.32" x 15.35" x 13.39" • Approvals: CE
WHAT'S INCLUDED • External power supply • Quick Reference Guide • Warranty card
