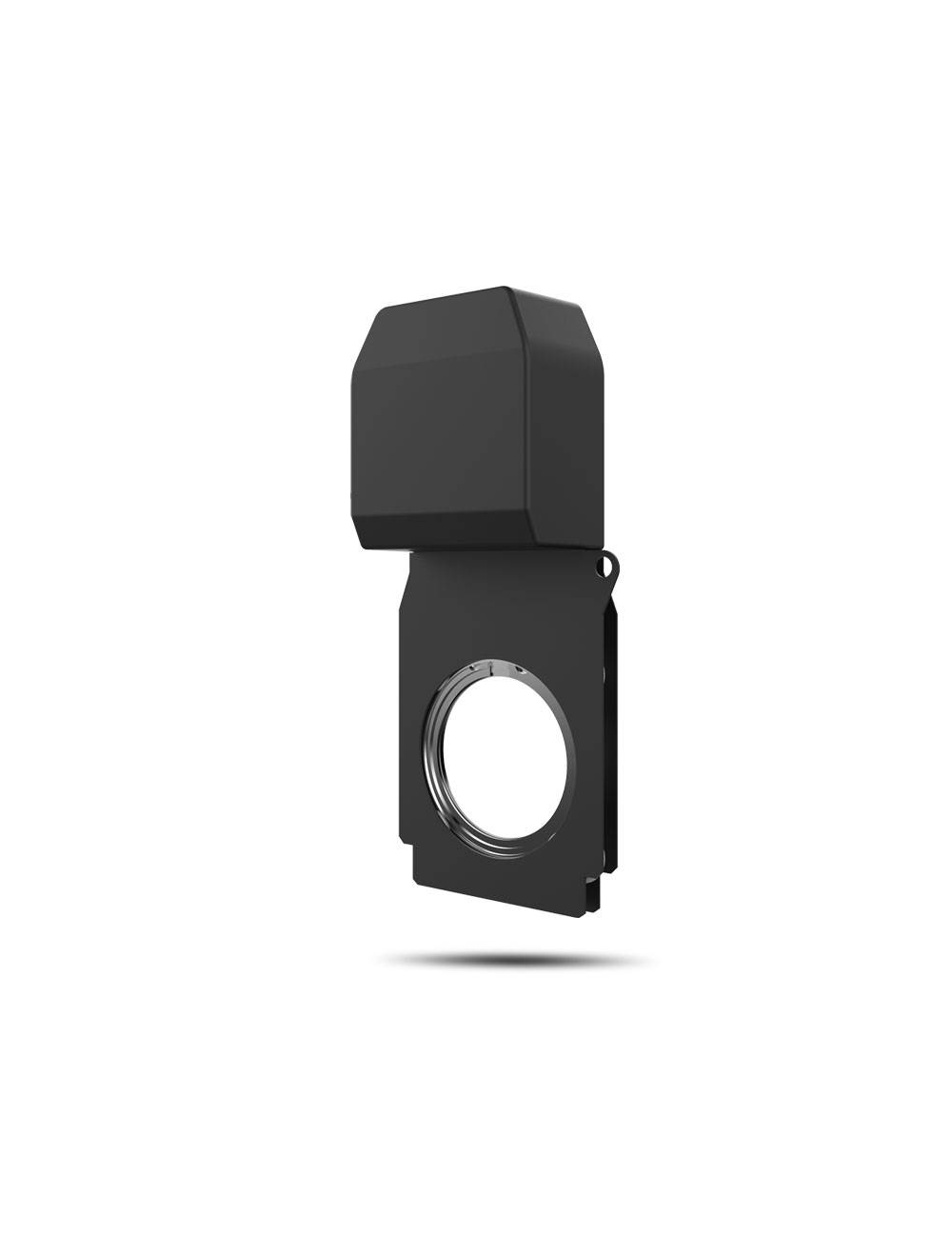

Chauvet Pro OVATIONGR1IP Ovation GR1-IP IP65 Rated Gobo Rotator
Ovation GR-1 IP is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality.
$290.00
AT A GLANCE
• IP65 rated gobo rotator for one single or two counter-rotating gobos
• Fully controllable via the Ovation E-260WW IP control personalities
• Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
• Fully indexable positioning via DMX
• Dedicated power/control supplied by the Ovation E-260WW IP
• Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering
SPECIFICATIONS
DYNAMIC EFFECTS
• Gobos size: B (metal, glass or effect)
• Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
• Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)
CONSTRUCTION / PHYSICAL
• Dimensions: 21.26" x 14.17" x 7.87"
• Weight: 17.64 lb (8 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
CONNECTIONS
• Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Cable Length (power/data): 19 in/483 mm
CONTROL
• Control Protocol: DMX
• DMX Channels: 1
ELECTRICAL
• Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)
CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
• Ovation GR-1 IP
• Power & Data Control Cable
• IP65 rated gobo rotator for one single or two counter-rotating gobos
• Fully controllable via the Ovation E-260WW IP control personalities
• Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
• Fully indexable positioning via DMX
• Dedicated power/control supplied by the Ovation E-260WW IP
• Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering
SPECIFICATIONS
DYNAMIC EFFECTS
• Gobos size: B (metal, glass or effect)
• Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
• Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)
CONSTRUCTION / PHYSICAL
• Dimensions: 21.26" x 14.17" x 7.87"
• Weight: 17.64 lb (8 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
CONNECTIONS
• Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
• Cable Length (power/data): 19 in/483 mm
CONTROL
• Control Protocol: DMX
• DMX Channels: 1
ELECTRICAL
• Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)
CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
• Ovation GR-1 IP
• Power & Data Control Cable
| Part Number | OVATIONGR1IP |
|---|---|
| Manufacturer | Chauvet |
| Input Voltage | 24V |
| Minimum Operating Temperature | -4 °F |
| Maximum Operating Temperature | 113 °F |
| Specification Sheet | |
| Dimensions | 21.26" x 14.17" x 7.87" |
| UPC Code | 781462217464 |
| Lead Time | In Stock - Quick Ship |
| Certifications |  |
