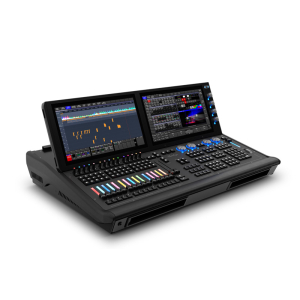

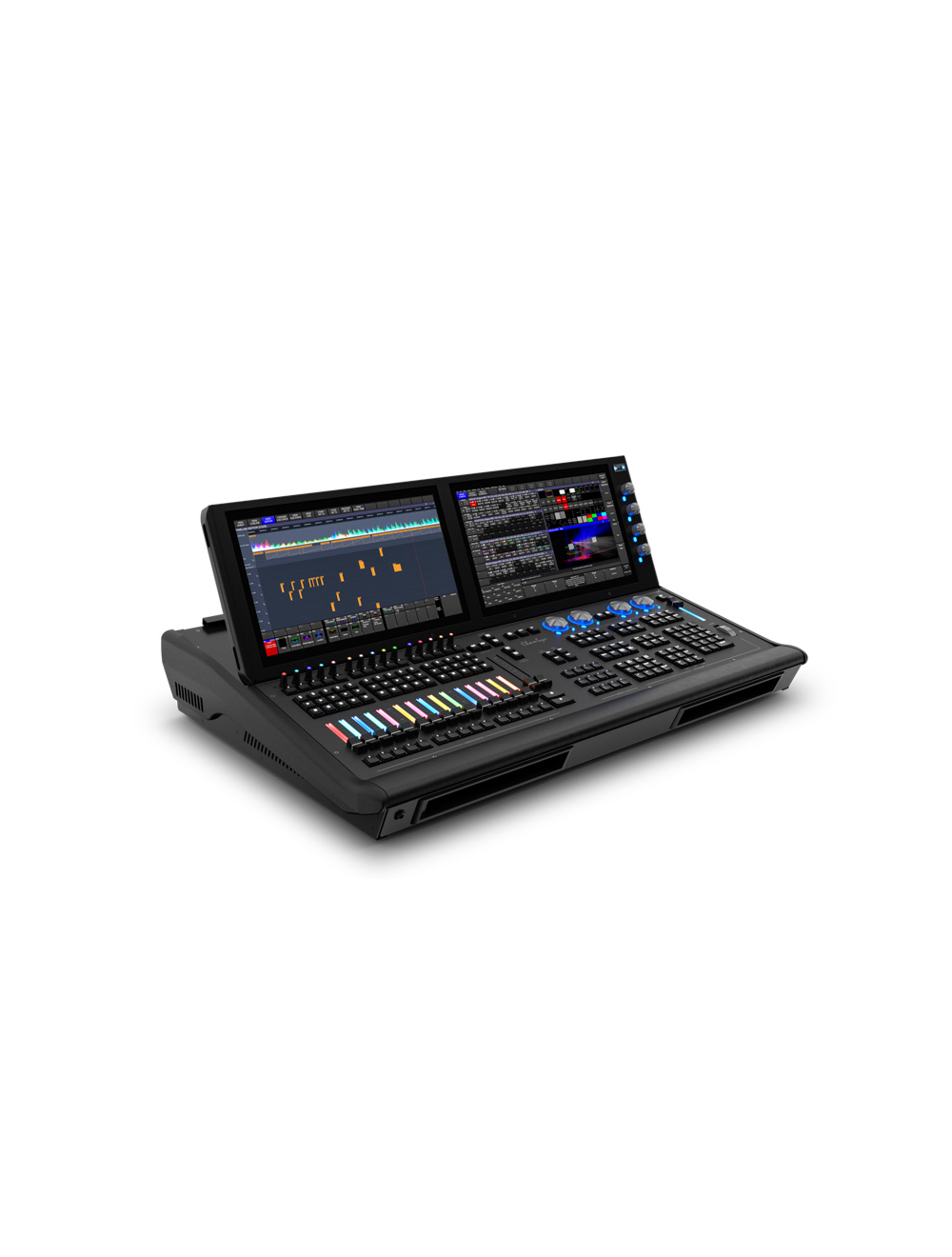

Chauvet Pro CHAMMQ500MWINGUPGRADEKIT MagicQ Stadium Wing Front Panel Motorization Upgrade Kit

Overview
• Compatible with MagicQ MQ500M Stadium console
• 15 fully motorised fader playbacks
• 15 encoder playback with RGB indicators
• RGB illumination of playbacks
• Backlit buttons
• 15″ Multi touch HD display
• Dual motorised 100mm crossfaders ideal for Theatre
• 4 assignable DMX ports

Hardware Specifications
• Motorised Playbacks: 15
• Encoder Playbacks: 15
• Total no of Playbacks: 30 (15+15)
• Dual Motorised Cross Faders: Yes
• Execute Encoders: 4
• Backlit Keys: Yes
• Direct DMX Outputs: 4
• Illuminated Playback/Encoders with RGB control: Yes
• Inbuilt 15″ HD Multi-Touch Display: 1
• High Power USB Port: 1
• Inbuilt UPS: Yes, uses 12v Lead-Acid Battery
• Front Storage Pocket: 1
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
• Max Power Consumption (mains): 170w

Software Specifications
• Max Number of DMX Channels: 131,072
• Max Number of Fixtures Supported: 131,072
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)

Included Accessories
• Dual Colour Desk light: 1
• Dust cover: 1
• Neutrik powerCON TRUE1 Power Cable: 1
• Neutrik USB A-B connection cable: 1
• Standard USB A-B connection cable: 1
• HDMI to HDMI connection cable: 1
• HDMI to DVI connection cable: 1

Boxed Weights and Dimensions
• Width: 690mm (21 inches)
• Depth: 590mm (23.3 inches)
• Height: 340mm (13.3 inches)
• Weight: 21kg (46.2 lb)

Console Weights and Dimensions
• Width: 471mm (18.5 inches)
• Depth: 587mm (23 inches)
• Height: 85mm high at front (3.3 inches), 188mm high at rear (screens stored) (7.4 inches)
• Weight: 19kg (41.9 lb)
