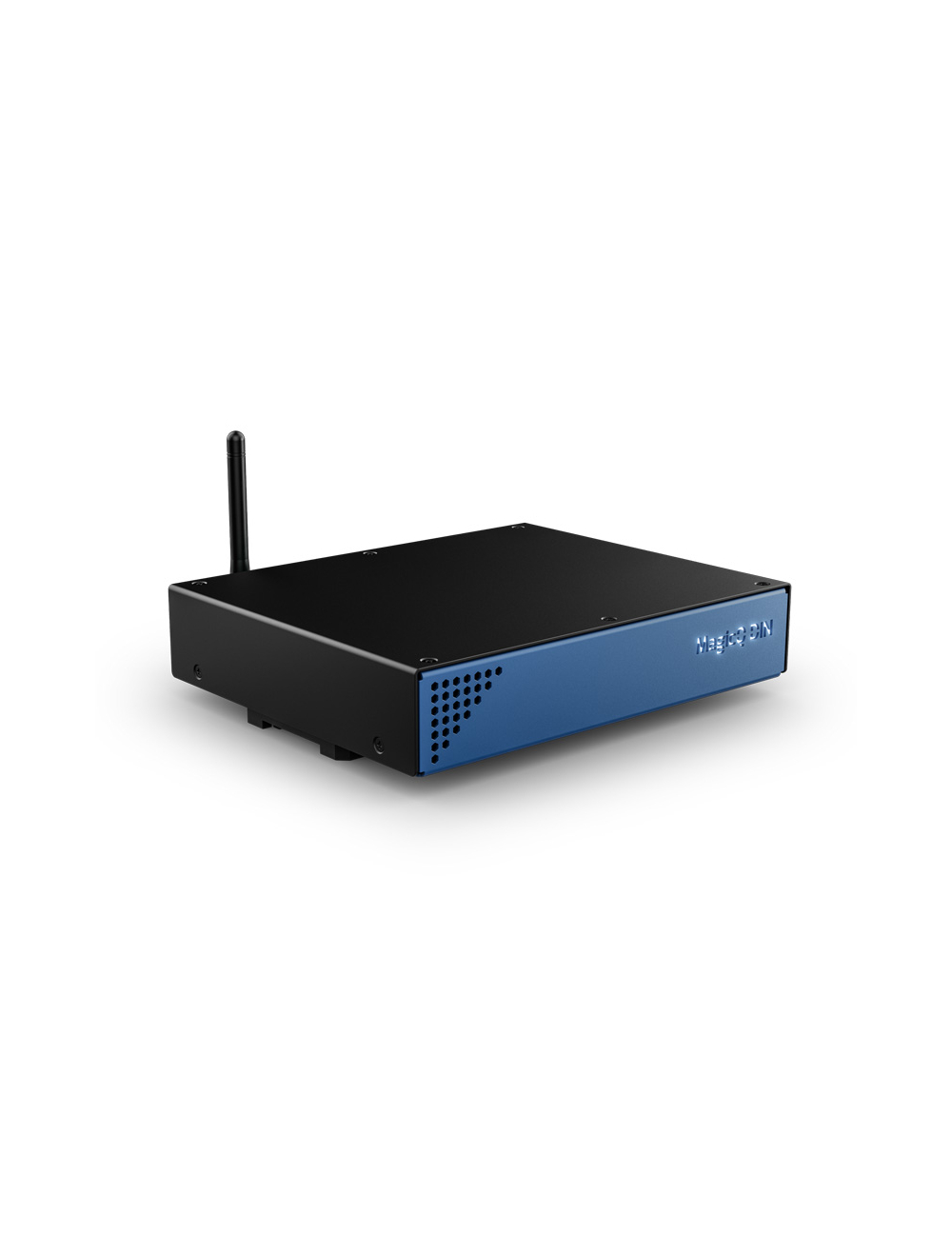

Chauvet Pro CHAMMQDIN MagicQ DIN
MagicQ DIN supports all MagicQ features, including scheduled events, UDP, OSC and other remote protocols, making it ideal for cabinet installation in control rooms and suitable for theatres, houses of worship, and any venue requiring powerful control that offers the advanced capabilities of MagicQ such as pixel mapping and multi-element fixture control.
$6,585.00
Overview
• Ideal for installations and architectural settings
• 24 universes direct, expandable to 48
• Two RDM enabled DMX Outputs (Phoeonix Screw Terminal connectors)
• Inbuilt Wi-Fi for programming and remote control
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same software as MagicQ Consoles
Hardware Specifications
• Universes supported: 24, expandable to 48 via licence upgrade
• DMX Outputs Pheonix Screw Terminal: 2
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Power Input: 12v DC
Software Specifications
• Max Number of DMX Channels: 12288 *expandable to 24576
• Max Number of Fixtures Supported: 12288 *expandable to 24576
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 48,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
Rack Weights and Dimensions
• Width : 200mm (7.8 inches)
• Depth: 165mm (6.5 inches)
• Height: 40mm (1.6 inches)
• Weight: 0.65kg (1.43lb)
Included Accessories
• Wi-Fi Antenna: 1
• DIN Rail Mount Clips: 2
• 10Scene Connectors: 4
• 12v Power Supply: 1
Boxed Weights and Dimensions
• Width: 268mm (10.5 inches)
• Depth: 220mm (8.7 inches)
• Height: 130mm (5.1 inches)
• Weight: 1.04kg (2.29 lb)
• Ideal for installations and architectural settings
• 24 universes direct, expandable to 48
• Two RDM enabled DMX Outputs (Phoeonix Screw Terminal connectors)
• Inbuilt Wi-Fi for programming and remote control
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same software as MagicQ Consoles
Hardware Specifications
• Universes supported: 24, expandable to 48 via licence upgrade
• DMX Outputs Pheonix Screw Terminal: 2
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Power Input: 12v DC
Software Specifications
• Max Number of DMX Channels: 12288 *expandable to 24576
• Max Number of Fixtures Supported: 12288 *expandable to 24576
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 48,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library
Rack Weights and Dimensions
• Width : 200mm (7.8 inches)
• Depth: 165mm (6.5 inches)
• Height: 40mm (1.6 inches)
• Weight: 0.65kg (1.43lb)
Included Accessories
• Wi-Fi Antenna: 1
• DIN Rail Mount Clips: 2
• 10Scene Connectors: 4
• 12v Power Supply: 1
Boxed Weights and Dimensions
• Width: 268mm (10.5 inches)
• Depth: 220mm (8.7 inches)
• Height: 130mm (5.1 inches)
• Weight: 1.04kg (2.29 lb)
| Part Number | CHAMMQDIN |
|---|---|
| Manufacturer | Chauvet |
| Dimmable | No |
| Dimensions | 25.98" x 17.72" x 11.02" |
| Lead Time | Ships in 2-3 Business Days |
| UPC Code | 781462225438 |
