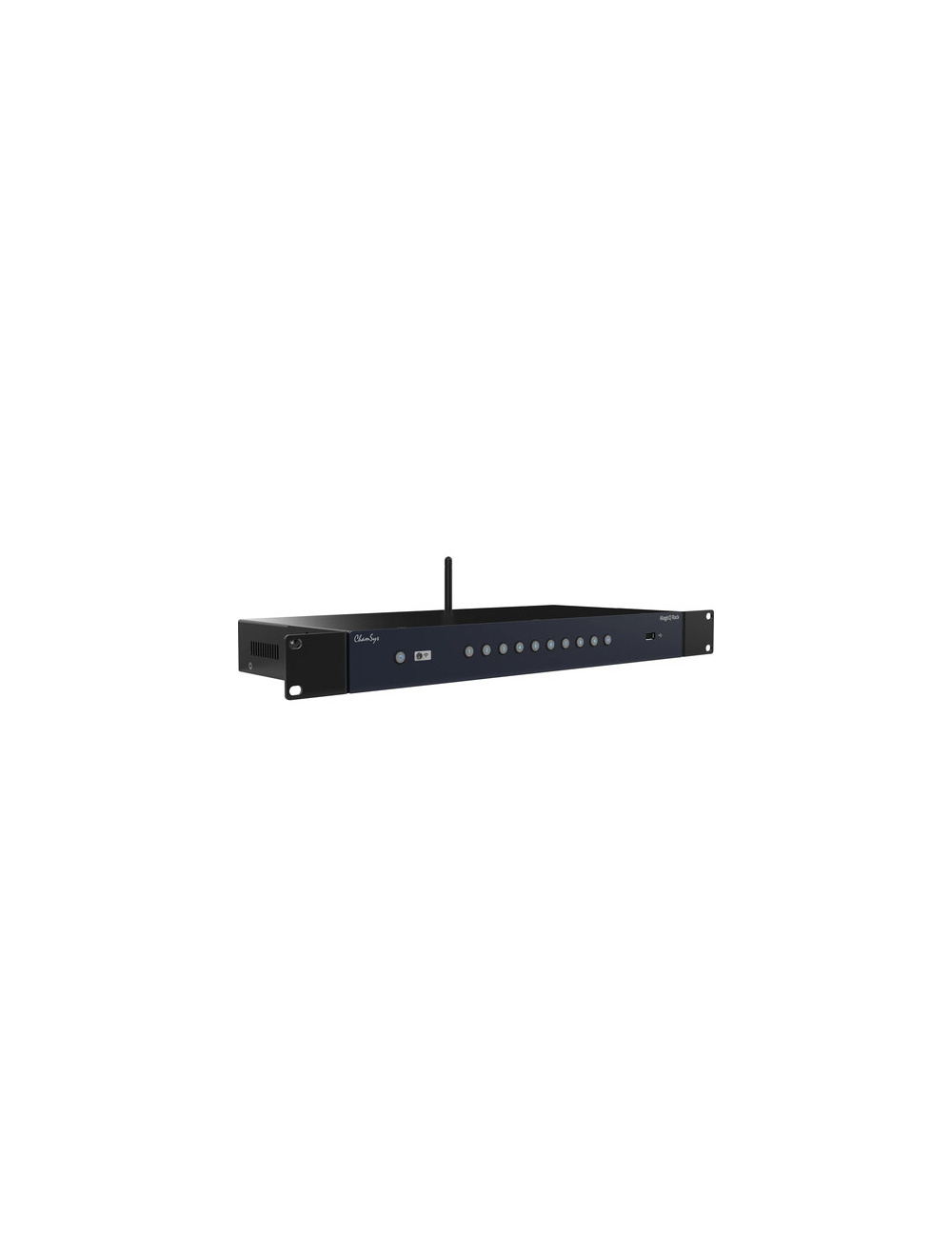

Chauvet Pro CHAMMQRACK MagicQ Rack

Overview
• Ideal for installations and architectural settings
• 24 universes direct from the console, expandable to 48
• Two RDM enabled 5-pin DMX connectors
• Inbuilt Wi-Fi for programming and remote control
• Ten buttons for activation of Playbacks and Executes
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same software as MagicQ Consoles

Hardware Specifications
• Universes supported: 24, expandable to 48 via licence upgrade
• Direct DMX Outputs 5-Pin XLR: 2
• 10Scene buttons: 10
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Audio Input: 1
• Audio Output: 1
• MIDI Ports in/out: Yes
• TrueCon Power Input: 90-250v AC

Software Specifications
• Max Number of DMX Channels: 12288 *expandable to 24576
• Max Number of Fixtures Supported: 12288 *expandable to 24576
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• Midi & Midi Timecode Supported: Yes
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 48,000 fixture files
• Built in FX generator
• Colour picker and Gel inbuilt Gel library

Weights and Dimensions
• Width (without ears): 403mm (15.8 inches)
• Depth: 195mm (7.7 inches)
• Height: 45mm (1.8 inches)
• Weight: 3.1kg (6.8 lb)

Included Accessories
• Wi-Fi Antenna: 1
• Rackmount Ears: 2
• 10Scene Connectors: 4
• Neutrik powerCON TRUE1 Power Cable: 1
