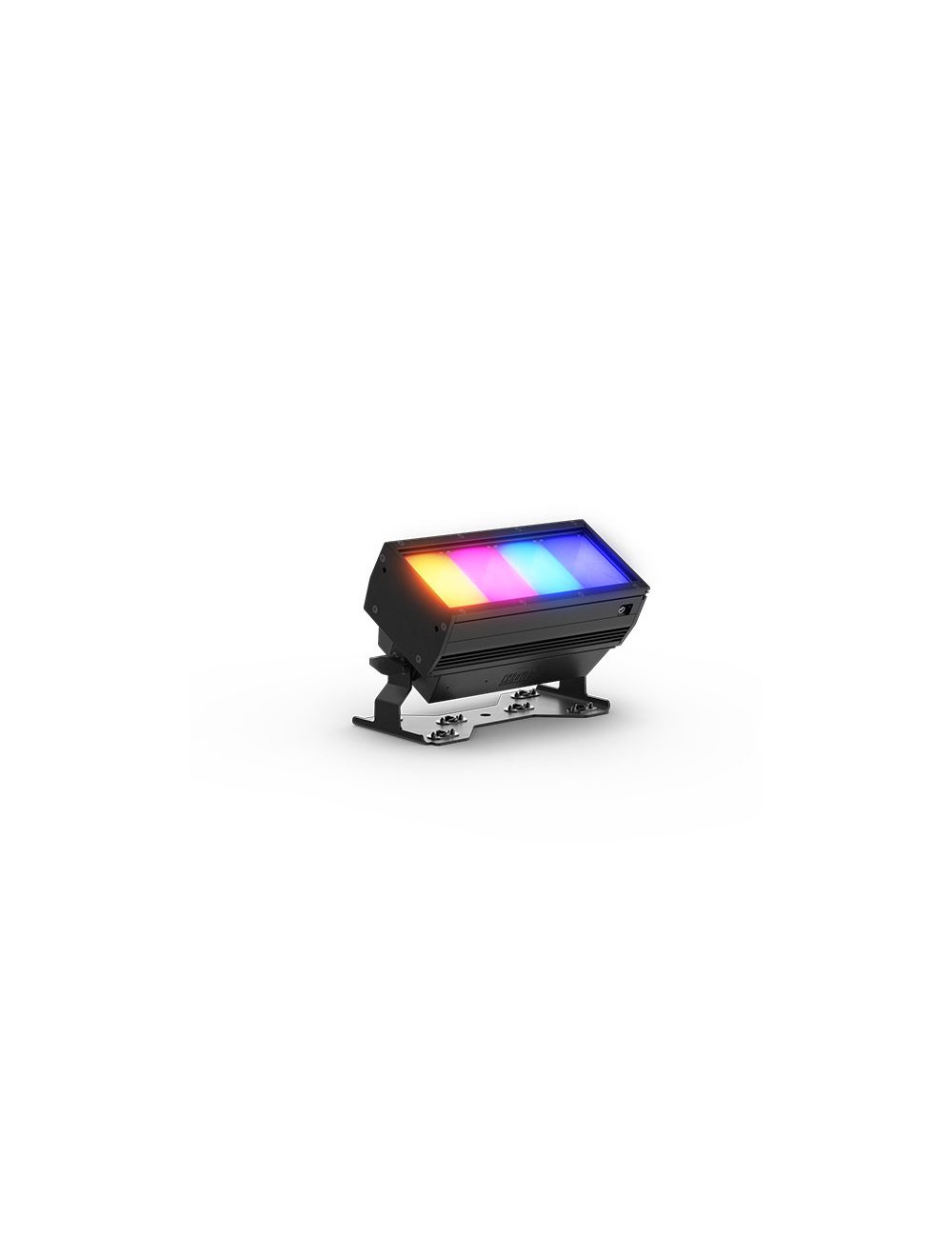

Chauvet Pro COLORADOSOLOBAR1 COLORado Solo Bar 1 4 LEDs 100-240 Volt Full-Spectrum LED Batten

AT A GLANCE
• Full-spectrum LED batten suited equally for rental/production, broadcast, film, and special events
• IP65 rating for all weather use and protection from dust/fog/haze indoors or out
• Linear color temperature presets from 2800 K to 8000 K with high TM-30, CRI and CQS
• Perfectly blended and even color from edge to edge of the cell, no "circle in a square" look
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• Multiple control methods from on-board DMX, RDM, CRMX, Art-Net and sACN
• Virtually silent operation for use in studio applications
• Easily adjustable sliding brackets (on standard T-rail) for optimal placement around truss supports
• Guide pins for easy end-to-end alignment
• Slide-in slot for various included and accessory filters as well as an on-board stowable glare shield
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme

SPECIFICATIONS
OPTICAL
• Light Source: 4 (RGBWwL) LED Engines
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 9056 K
• CRI: 95
• Beam Angle: 16.5°
• Beam Angle (w/CYC Diffusion): 27.3°
• Beam Angle (w/Half Diffusion): 17.7°
• Beam Angle (w/Stealth Diffusion): 25.3°
• Field Angle: 33.4°
• Field Angle (w/CYC Diffusion): 74.3°
• Field Angle (w/Half Diffusion): 43.7°
• Field Angle (w/Stealth Diffusion): 59.7°
• Lumens: 4,285
• Lumens (w/CYC Diffusion): 3,795
• Lumens (w/Half Diffusion): 4,372
• Lumens (w/Stealth Diffusion): 1,257
• Illuminance: 874 lux @ 5 m
• Illuminance (w/CYC Diffusion): 276 lux @ 5 m
• Iluminance (w/Half Diffusion): 595 lux @ 5 m
• Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL
• Dimensions: 15.16" x 10.63" x 9.84"
• Weight: 18.30 lb (8.30 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, aluminum profile

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
• Software Connection: USB

CONTROL
• Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
• DMX Channels:
o 1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)
o 2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)
o 4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)
• Art-Net / sACN Channels:
o 1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)
o 2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)
o 4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)
• Modes/Personalities: 32 personalities

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 110 W, 1.12 A @ 100 V, 60 Hz
• Power and Current: 108 W, 0.93 A @ 120 V, 60 Hz
• Power and Current: 106 W, 0.59 A @ 208 V, 60 Hz
• Power and Current: 105 W, 0.48 A @ 230 V, 50 Hz
• Power and Current: 107 W, 0.46 A @ 240 V, 60 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• COLORado Solo Bar 1
• Seetronic Powerkon IP65
• Omega brackets with mounting hardware
• 50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)
• Glare Shield

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• IP Rated Seetronic® Powerkon Extensions
• UPLOAD 03 software uploader
