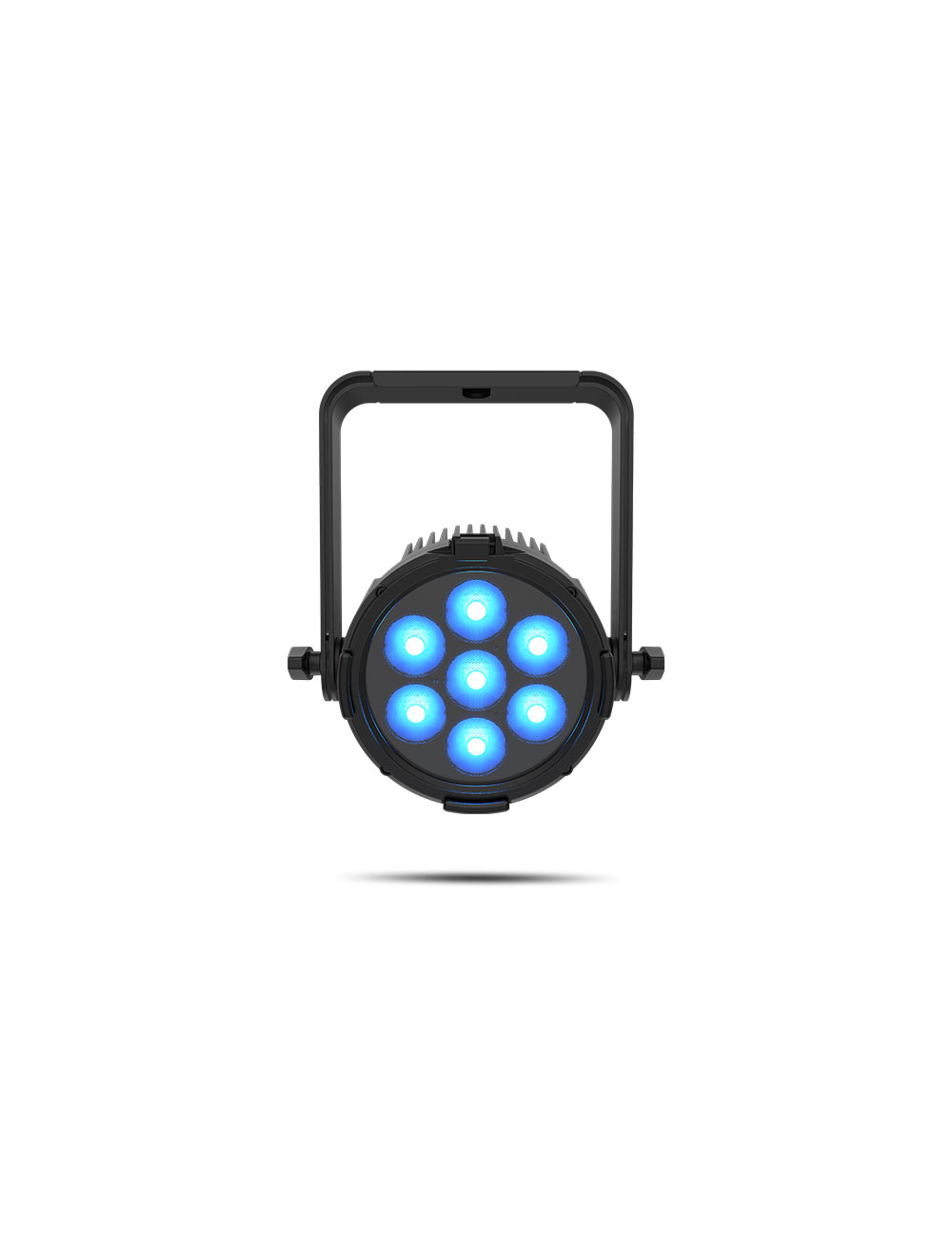

Chauvet Pro COLORDASHPARH7X COLORdash PAR H7X 7 LEDs 588 Watt 100-240 Volt with Portable Six Pound Package

AT A GLANCE
• Rugged RGBWA-UV LED wash for events
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional color mixing and high efficiency
• Double-bracketed yoke with omega bracket doubles as floor stand

SPECIFICATIONS
OPTICAL
• Light Source: 7 LEDs (hex-color RGBAW+UV) 84 W, (505 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10,000 K
• Color Temperature (at full): 14,329 K
• Beam Angle: 22.7°
• Field Angle: 37.6°
• Lumens: 2738
• Illuminance (total): 522 lux @ 5 m
• Selectable PWM: 600 Hz, 1.2K Hz, 2K Hz, 4K Hz, 6K Hz, 25K Hz

DYNAMIC EFFECTS
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No

CONSTRUCTION / PHYSICAL
• Dimensions: 12.99" x 10.63" x 6.50"
• Weight: 7.08 lb (3.21 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast
• Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

CONNECTIONS
• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin XLR, 3- and 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL
• Control Protocol: DMX, RDM
• DMX Channels: 6ch ,8ch ,9ch ,13ch, or 14ch
• Modes/Personalities: 5 personalities (6ch ,8ch ,9ch ,13ch, or 14ch)

ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 20 units @ 120 V; 34 units @ 208 V; 38 units @ 230 V
• Power and Current: 70 W, .592 A @ 120 V, 60 Hz
• Power and Current: 67 W, .344 A @ 208 V, 60 Hz
• Power and Current: 67 W, .312 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS
• CE, MET, FCC, UKCA, FCC
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED
• Colordash Par H7X
• Seetronic powerkon IP65 power cord
• Gel frame holder
• Gel frame

OPTIONAL ACCESSORIES
• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik® powerCON® cables
• 3- or 5-pin DMX Cables
