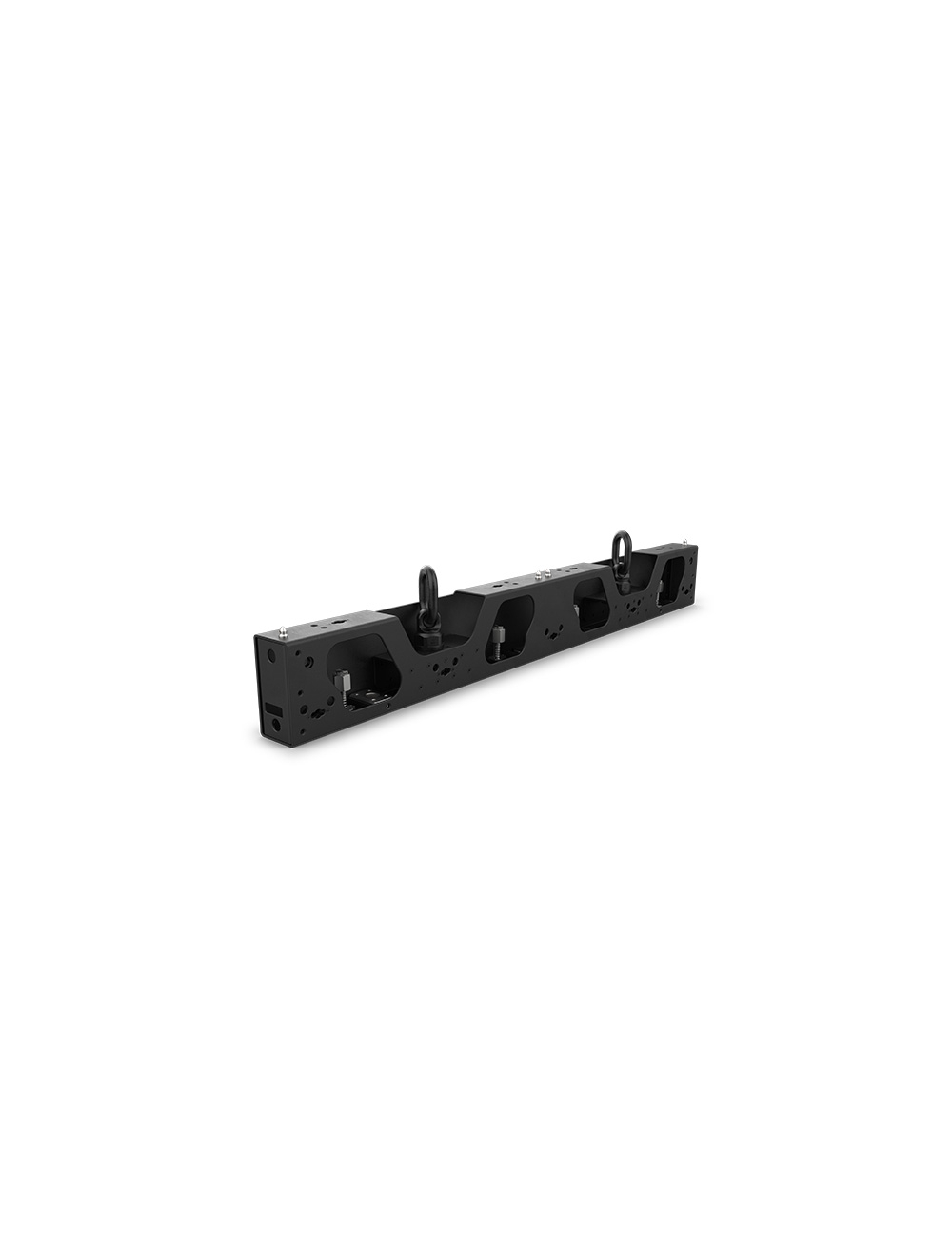

Chauvet Pro DRBF100CMIP IP Rated Dual F-Series Rig Bar (100cm)

DRB-F100CMIP and DRB-F50CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

$1,007.50

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

DRBF100CMIP

Details

AT A GLANCE
• F-series Dual Function Rig Bar, used to hang video panels vertically or horizontally
• Works for overhead hanging, as well as ground support/stacking applications
• Works with CHAUVET F-series video panels (F2, F3X, F5IP, F4XIP)
• Equipped hoist ring supports standard rigging hardware for overhead hanging (1/2" and 5/8" shackles)
• Included Clamp attachment bracket (DRB-CTC) allows for direct connection using M12 bolts in clamps
using TRUSST CTC-50HC

SPECIFICATIONS
CONSTRUCTION / PHYSICAL
• Dimensions: 42.52" x 6.77" x 7.13"
• Weight: 25.77 lb
• Exterior Color: Black
• Housing Material: Aluminum extrusion, stainless steel

CLAMP
• Load Capacity: (hanging): 1,665 lb (755 kg)
• Load Capacity: (stacking): 2,735 lb (1,240kg)
• Recommended Shackle Sizes: 1/2", 5/8"

CERTIFICATIONS / QUALIFICATIONS
• ROHS
• IP Rating: IP65, temporary outdoor/wet use

WHAT'S INCLUDED
• 1pcs F-series Dual Function Rig Bar-100 cm (DRB-F100CMIP)
• 1pcs 0° Linking Plate
• 2pcs clamp attachment brackets (DRB-CTC)
• 2pcs clamp bolts for TRUSST CTC-50HC

REQUIRED ACCESSORIES
• Compatible Mounting Options: Shackle (Sizes: 1/2", 5/8"), Pipe Clamp (M12 threaded bolt)

OPTIONAL ACCESSORIES

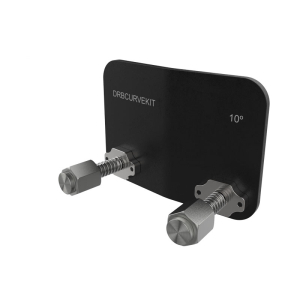

• DRB-CURVEKITX2
