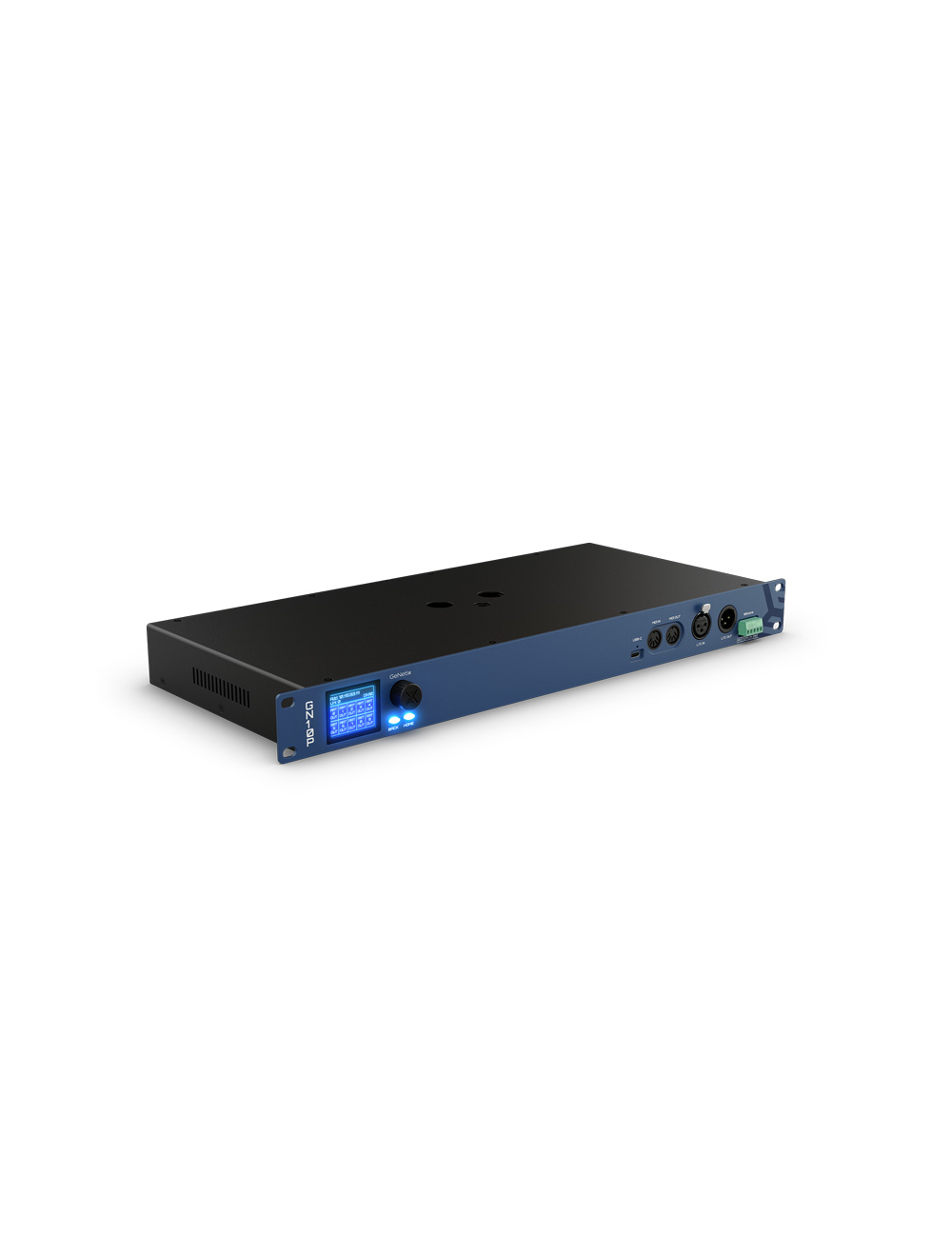

Chauvet Pro GENETIXGN10P GeNetix GN10P - Install 10 Port Node Phoenix Connectors

GeNetix Node 10P (GN10P) is a multipurpose node that provides a solution for remote data distribution in a wide variety of applications, notably offering support for Timecode, MIDI, and 10Scene.

$1,555.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

GENETIXGN10P

Details

Overview
• 10 RDM DMX Ports with Phoenix screw terminals supporting Input and Output
• Supports Art-Net & sACN
• LTC & MIDI Timecode over Ethernet
• MIDI Notes over Ethernet
• Recall Scenes via UDP commands
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Full Unlock of MagicQ PC Systems when connected via USB
• Full Unlock of up to 2 MagicQ Instances when connected via Network

Hardware Specifications
• RDM Direct DMX Ports (with Phoenix Screw Terminals):10
• Network Ports: 2
• MIDI Ports: 2 (1 in, 1 out)
• LTC Timecode Ports: 2 (1 in, 1 out)
• 10Scene Ports: 1
• PoE Input: Yes (Port 1)
• USB Ports: 1 USB-C
• Kensington Security Lock Fixing: Yes
• Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
• PoE or Mains Powered: Yes
• Max Power Consumption (mains): 140w

Software Specifications
• Art-Net/sACN: Yes
• ChamNet Support: Yes
• LTC & MIDI Timecode over ChamNet: Yes
• MIDI Notes over ChamNet: Yes
• 10Scene Gateway Functionality: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• DMX Redundancy Support: Yes
• User Scene Store: Yes
• Recall Scenes Via UDP: Yes

Node Weights and Dimensions
• Width: 480mm (18.9 inches)
• Depth: 218mm (8.59 inches)
• Height: 44.4mm (1.75 inches)
• Weight: 2.75 KG (6.06 lb)
