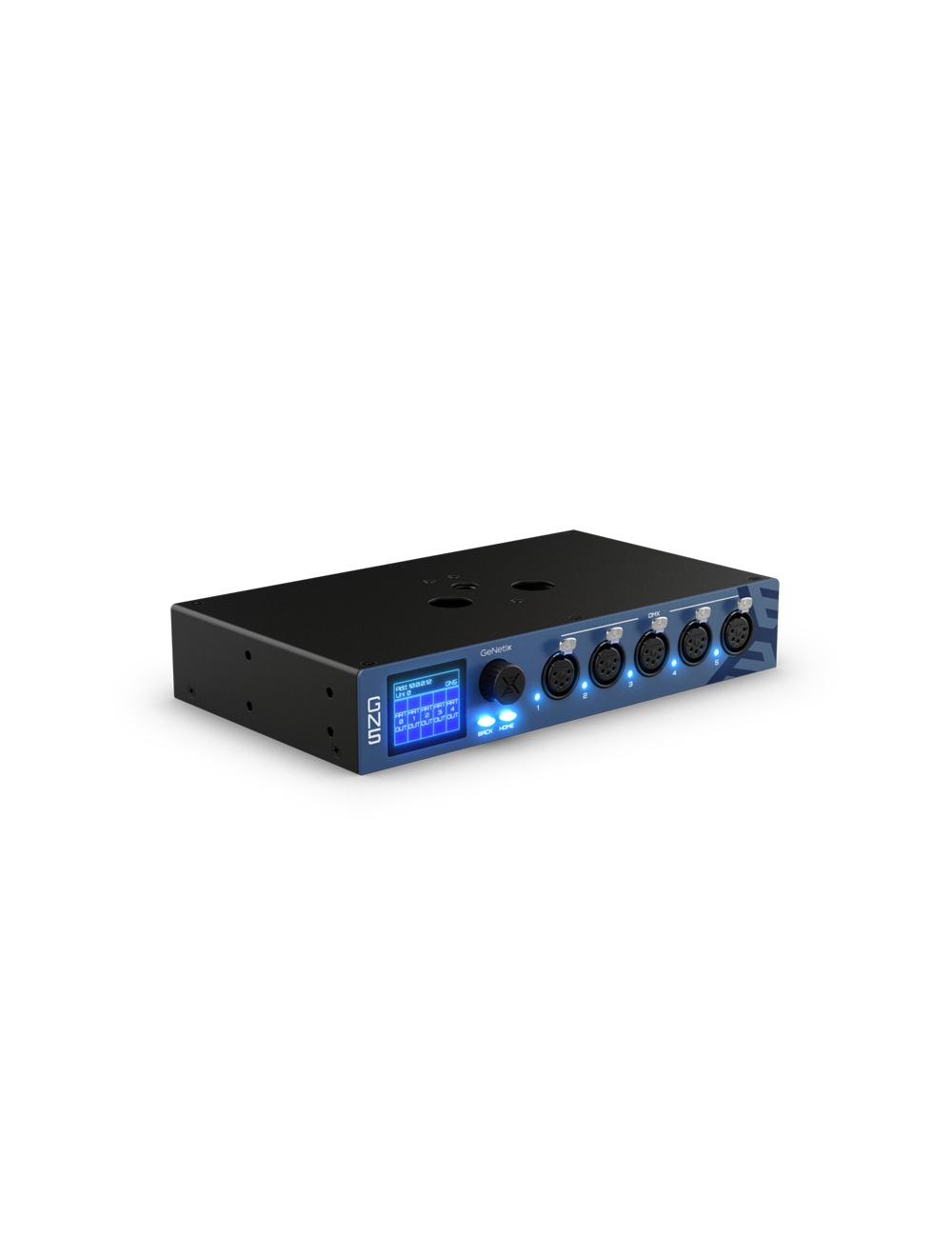

GeNetix Node 5 is a multipurpose node that provides a solution for remote data distribution in a wide variety of applications, notably offering support for Timecode, MIDI and 10Scene.
Overview • 5 RDM DMX Ports supporting Input and Output • Supports Art-Net & sACN • LTC & MIDI Timecode over Ethernet • MIDI Notes over Ethernet • Recall Scenes via UDP commands • Webserver for remote configuration • In-built display and encoder for local configuration • Full Unlock of MagicQ PC Systems when connected via USB • Full Unlock of up to 2 MagicQ Instances when connected via Network • Includes Rack ears for 19″ Rack Mounting
Hardware Specifications • RDM Direct DMX Ports: 5 • Network Ports: 2 • MIDI Ports: 2 (1 in, 1 out) • LTC Timecode Ports: 2 (1 in, 1 out) • 10Scene Ports: 1 • PoE Input: Yes (Port 1) • USB Ports: 1 USB-C • Kensington Security Lock Fixing: Yes • Power Input, Neutrik powerCON TRUE1 110 to 240 VAC • Max Power Consumption (mains): 60w
Software Specifications • Art-Net/sACN: Yes • ChamNet Support: Yes • LTC & MIDI Timecode over ChamNet: Yes • MIDI Notes over ChamNet: Yes • 10Scene Gateway Functionality: Yes • Configurable DMX Timings: Yes • Web Server: Yes • DMX Redundancy Support: Yes • User Scene Store: Yes • Recall Scenes Via UDP: Yes
Included Accessories • Neutrik powerCON TRUE1 Power Cable: 1 • DIN Rail Mount Clip: 1
