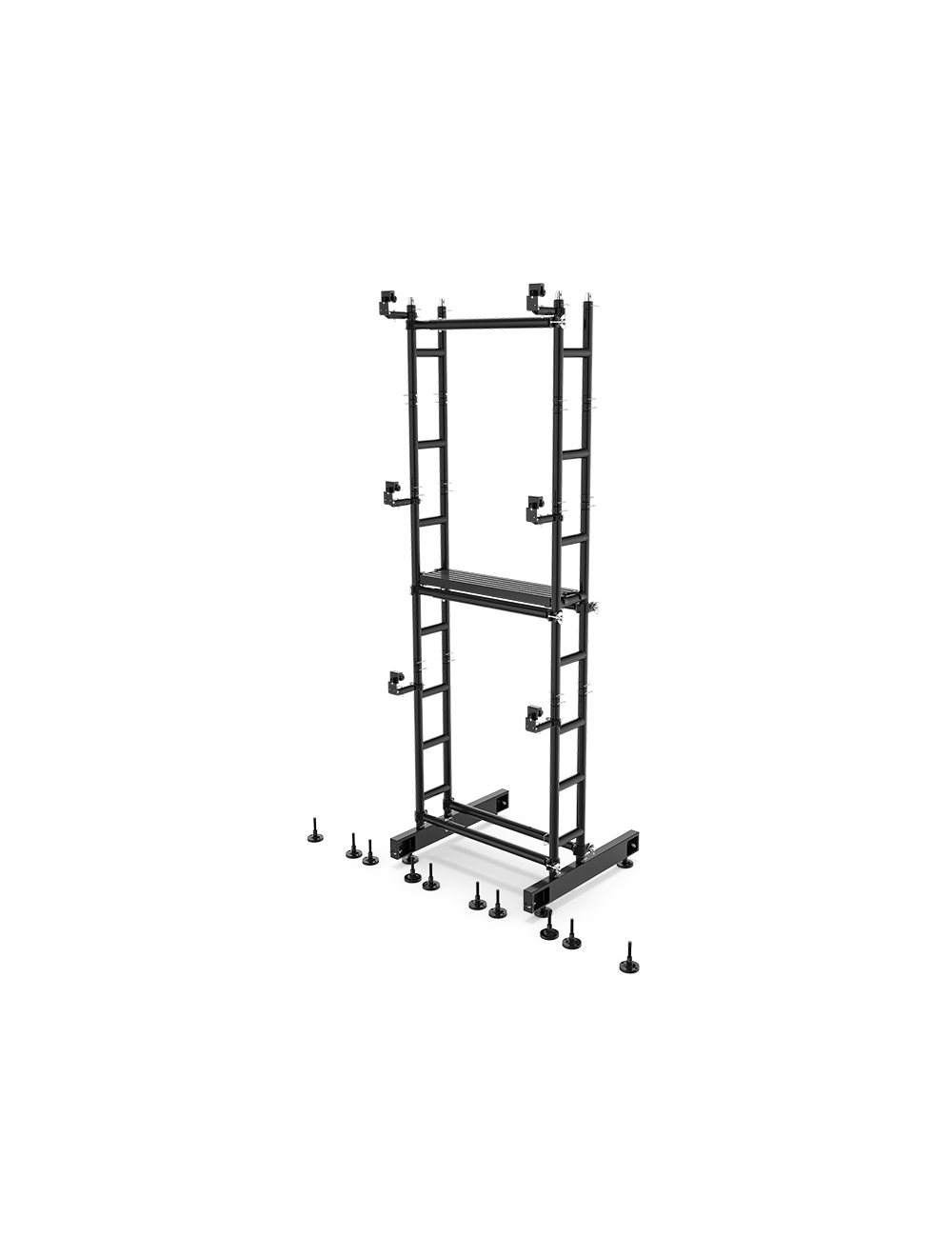

Chauvet Pro GROUNDSTACKKIT Ground Stack Kit works with MT07 Module Install/Removal Tool

Our Ground Stack Kit provides a complete ground support solution for stacking REM1, REM3IP, F2, F3/F3X, F4IP/F4XIP, and F5IP video panels, and supports flat, convex and concave video walls, including 2.5° and 5° convex curves, 5° and 10° concave curves. This climbable system includes a platform for use when rigging taller walls. Suitable for walls between 4.92 ft (1.5 m) and 6.56 ft (2 m) wide and as high as 9.85 ft (3 m) tall.

$6,816.67

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

GROUNDSTACKKIT

Details

AT A GLANCE
• Complete ground support solution for stacking video wall on the floor
• Works for walls between 4.92 ft (1.5 m) and 6.56 ft (2 m) wide and as high as 9.85 ft (3 m) tall; combine additional Ground Stack Kits to achieve wider walls
• Stack multiple kits to build wider video walls
• Support for flat and concave video walls, including 5° and 10° curves
• Designed to work with the REM1, REM3IP, F2, F3/F3X, F4IP/F4XIP, and F5IP video panels
• Ships in road case for easy setup and pack after the gig
• Dual function rig bars required for operation; compatible with F-series and REM Video Panels from Chauvet Professional (not included with Ground Stack Kits)
• Climbable system includes platform to assist with rigging taller walls

SPECIFICATIONS
CONSTRUCTION / PHYSICAL
• Dimensions (packed in case): 50.4 x 21.1 x 39.3 in (128 x 53.5 x 99.9 cm)
• Weight (total with case): 332 lb (150.6 kg)
• Weight (ground support without case): 175 lb (79.4 kg)
• Weight (empty case): 157 lb (71 kg)
• Exterior Color: Black
• Housing Material: Aluminum extrusion and Steel
• Maximum vertical stack supported: 3 m tall
• Maximum width supported: 2.0 m wide
• Maximum person weight supported: 250 lb (113.4 kg)
• Ballast needed per 1 M height stack (minimum): 150 lb (68 kg)
• Ballast needed per 2 M height stack (minimum): 200 lb (90.7 kg)
• Ballast needed per 3 M height stack (minimum): 275 lb (124.7 kg)

CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP65 (temporary outdoor use)
• Wind Rating: consult structural engineer for proper ballast weight and reinforcement
• Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)

WHAT'S INCLUDED
• 1pc: Customized road case (unit ships prepacked)
• 2pcs: Floor Bar
• 6pcs: PAM
• 5pcs: Ladder pipe with clamp
• 4pcs: 0.5M Truss
• 4pcs: 1m Truss
• 8pcs: TR16 screw jack
• 1pc: Climbing Platform
• 13pcs: M12 F-series cabinet screws
• 6pcs: REM Bracket
• 13pcs: truss double sided connector AL6063
• 37pcs: Truss pins with clip
• 1pc: 6” bubble level

REQUIRED ACCESSORIES
• REM or F-series Dual Function Rig Bar

Specifications

More Information
Part Number	GROUNDSTACKKIT
Manufacturer	Chauvet
Dimmable	No
Dimensions	15.31" x 39.29" x 50.63"
Certifications
Lead Time	Ships in 2-3 Business Days
UPC Code	781462225919
