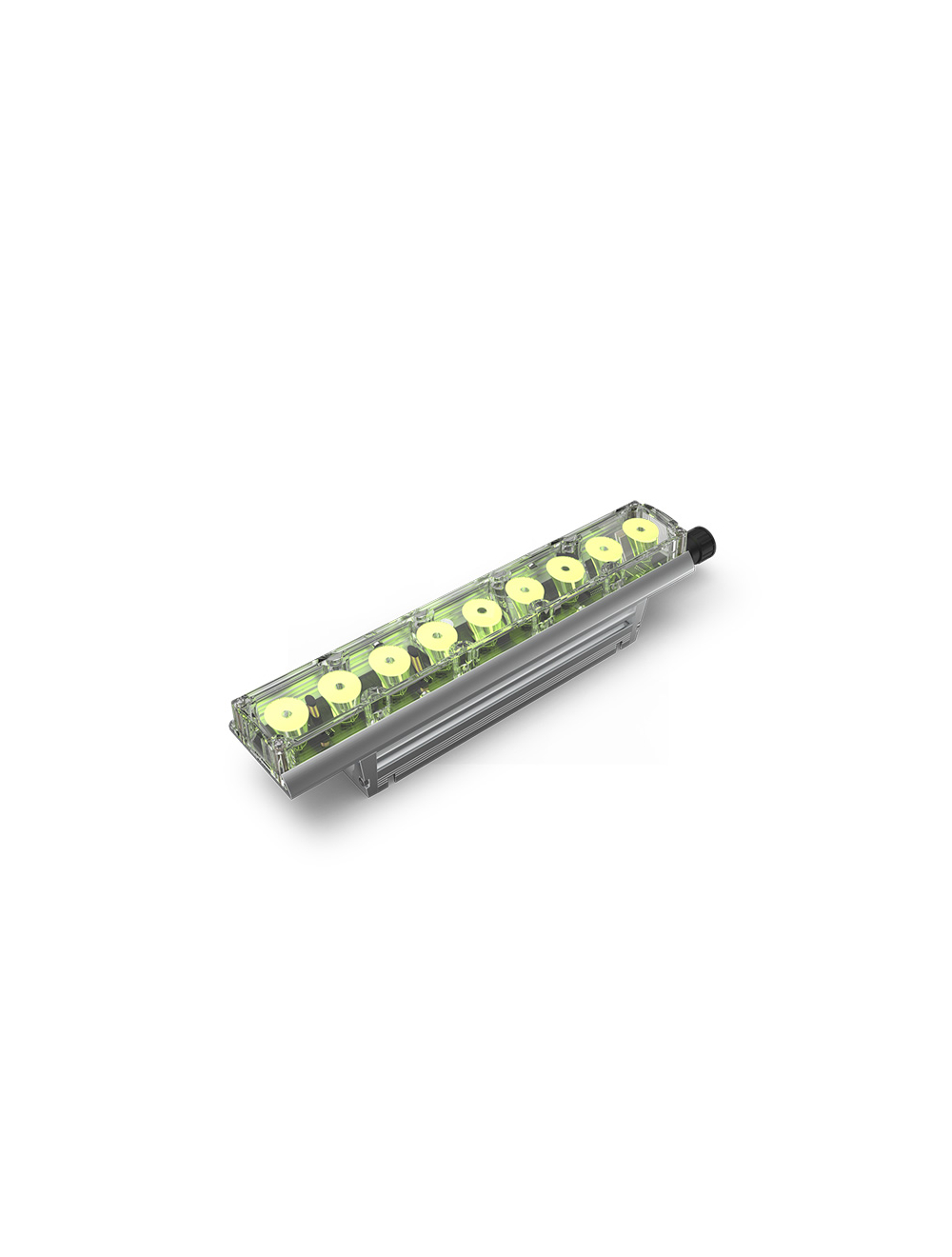

Chauvet Pro ILUMILINESL Ilumiline SL RGBL LED with Optional Filters

Features
• 4-in-1 RGBL Color Mixing
• One Foot in Length
• 50,000 hour LED Lifespan
• Beam angle: 14.5º, or change with optional Beam Filters
• Illuminance: 251 lux @ 5 m
• IP Rating: 66
• Optional Beam Spread Filters can be applied without breaking IP Seal

Specifications
Light Source and Optical Specifications
• Light Source: 9 LED (quad-color RGBL) 3.5 W, (200 mA)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: 12°
• Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
• Beam Angle: Installed Optics: 14.5°, Medium Filter: 24.1°, Wide Filter: 36°, Very Wide Filter: 38.1°, Asymmetrical Filter: 38.5° x 18.9°
• Field Angle: Installed Optics: 30°, Medium Filter: 52.3°, Wide Filter: 116.2°, Very Wide Filter: 128.1°, Asymmetrical Filter: 77.6° x 45.1°
• Cutoff Angle: Installed Optics: 49.6°, Medium Filter: 91.9°, Wide Filter: 158.6°, Very Wide Filter: 169.7°, Asymmetrical Filter: 157.1° x 114.3°
• Lumens: Installed Optics: 808, Medium Filter: 706, Wide Filter: 643, Very Wide Filter: 635, Asymmetrical Filter: 574
• Iluminance: Installed Optics: 251 lux @ 5 m, Medium Filter: 82 lux @ 5 m, Wide Filter: 31 lux @ 5 m, Very Wide Filter: 25 lux @ 5 m, Asymmetrical Filter: 53 lux @ 5 m
• Efficacy At Full: 34 lm/W
• Color Temperature Presets: 1800K - 10000K

Construction & Physical Specifications
• Dimensions: 12 x 3.03 x 3.43 in (305 x 77 x 87 mm)
• Fixture Color: Brushed aluminum
• Housing Material: Extruded aluminum
• Lens Cover: ABS plastic
• Mounting Options: 1 Brackets
• Weight: 2.65 lb (1.2 kg)

Control Specifications
• Control Protocol: USITT/DMX-512a/RDM
• Operating Modes: Selectable personalities
• Personalities:
• Solid (1-Channel)
• Arc 1 (3-Channel)
• Arc 1+D (4-Channel)
• Arc 2 (4-Channel)
• Arc 2+D (5-Channel)
• Arc Full (8-Channel)
• Special 1 (7-Channel)
• Special 2 (9-Channel)
• Data Connections:
• 3.7 ft (1.13 m) proprietary waterproof cable
• Fixture Setup: RDM Only
• Standalone Control: Yes

Electrical System Specifications
• Cable Connector Max Diameter: 1.18 in (30 mm)
• Electronic
• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 23 W, .200 A @ 120 V, PF: 94
• 22 W @ 230 V, PF: 78
• 21 W A @ 277 V, PF: 71
• Power Linking: 36 units @ 100 V, 40 units @ 120 V, 57 units @ 208 V, 66 units @ 230 V, 66 units @ 240 V, 72 units @ 277 V
• Power Supply: Electronic internal
• Recommended Power Cable: Power and Data Interface (14 AWG)
• Total Max Cable Length: 262 ft. (80 m)

Thermal Specifications
• BTUs At Various Voltages:
• 78 BTUs/hr @ 120 V, 60 Hz
• 72 BTUs/hr @ 208 V, 60 Hz
• 75 BTUs/hr @ 230 V, 50 Hz
• 72 BTUs/hr @ 277 V, 50 Hz
• Cooling: Convection
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance To Flammable Surface: .98 ft (.3 m)
• Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
• Operating Temperature Range: -40 °F to 113 °F (-40°C to 45 °C)
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification
• Certification Listings: UL/MET/CE/RoHS/FCC
• Environment Details: All indoor and limited outdoor permanent installations. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Dry/Damp/Wet
• Impact Resistance Rating: IK10
• Installation Orientation: Any/Vertical Only/Horizontal Only
• IP Rating: IP66
• Vibration Rating: 3G
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Wind Load Rating: EPA: .237 ft²

Accessories
• Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter, Power and Data extension cable
• Required: RDM Device, Power and Data Interface

Order Code
• Ilumiline SL: ILUMILINESL
• Ilumiline Power & Data Interface: ILUMILINEBOX
• Ilumiline SL Medium Spread Filter: ILUMILINESLM
• Ilumiline SL Wide Spread Filter: LUMILINESLW
• Ilumiline SL Very Wide Spread Filter: ILUMILINESLVW
• Ilumiline SL Asymmetrical Spread Filter: ILUMILINESLASYM
• 17″ Ilumiline Extension Cable: ILUMILINECABLE1
• 10′ Ilumiline Extension Cable: ILUMILINECABLE10
• 25′ Ilumiline Extension Cable: ILUMILINECABLE25
• 50′ Ilumiline Extension Cable: ILUMILINECABLE5
