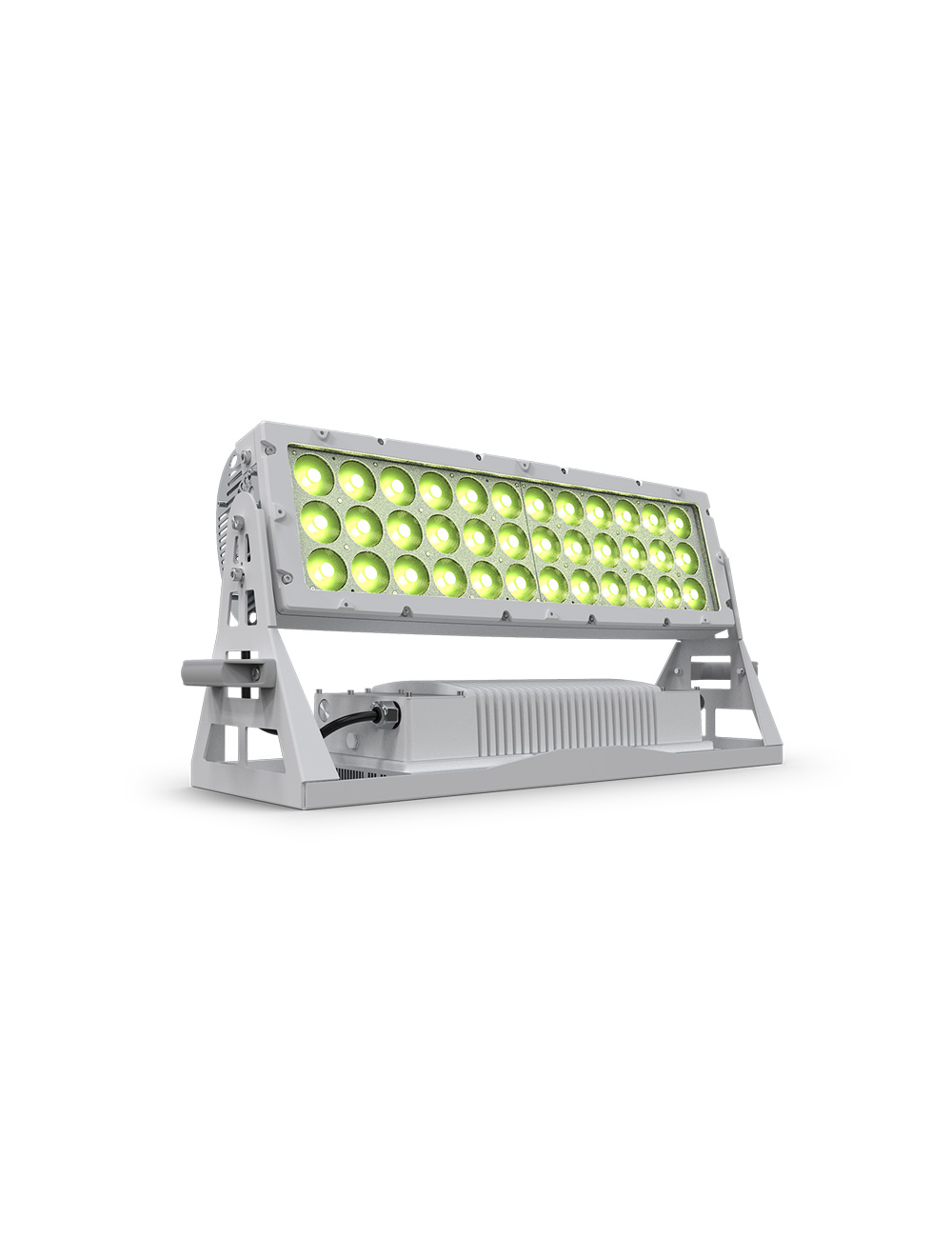

Chauvet Pro ILUMIPANELLL Ilumipanel LL RGBL LED with Optional Filters

Features
• 4-in-1 RGBL Color Mixing
• 50,000 hour LED Lifespan
• Beam angle: 6.4º, or change with optional Beam Filters
• Illuminance: 29,314 lux @ 5 m
• IP Rating: 67
• Integrated Yoke
• Optional Beam Spread Filters can be applied without breaking IP Seal

Specifications
Light Source and Optical Specifications
• Light Source: 36 LED (quad-color RGBL) 20 W, (1 A)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: 6°
• Optional Optics: Medium Filter, Wide Filter, Very Wide, Asymmetrical Filter
• Beam Angle: Installed Optics: 6.4°, Medium Filter: 19.9°, Wide Filter: 32.6°, Very Wide Filter: 34.9°, Asymmetrical Filter: 37° x 12°
• Field Angle: Installed Optics: 11.7°, Medium Filter: 41.3°, Wide Filter: 65.3°, Very Wide Filter: 72.7°, Asymmetrical Filter: 68.1° x 29°
• Cutoff Angle: Installed Optics: 19.7°, Medium Filter: 61.5°, Wide Filter: 162.7°, Very Wide Filter: 168.4°, Asymmetrical Filter: 168.1° x 51.2°
• Lumens: Installed Optics: 18,228, Medium Filter: 16,623, Wide Filter: 14,211, Very Wide Filter: 13,612, Asymmetrical Filter: 16,970
• Iluminance: Installed Optics: 29,314 lux @ 5 m, Medium Filter: 3,316 lux @ 5 m, Wide Filter: 939 lux @ 5 m, Very Wide Filter: 699 lux @ 5 m, Asymmetrical Filter: 2,605 lux @ 5 m
• Efficacy At Full: 37 lm/W
• Color Temperature Presets: 1800K - 10000K

Construction & Physical Specifications
• Dimensions: 32.4 x 9.92 x 15 in (824 x 252 x 381 mm)
• Fixture Color: Off white, C5-M
• Housing Material: Cast aluminum
• Lens Cover: Impact resistant glass
• Mounting Options: Bracket, hole diameter: 13M
• Weight: 69 lb (31.3 kg)

Control Specifications
• Control Protocol: USITT/DMX-512a/RDM
• Operating Modes: Selectable personalities
• Personalities:
• Solid (1-Channel)
• Arc 1 (3-Channel)
• Arc 1+D (4-Channel)
• Arc 2 (4-Channel)
• Arc 2+D (5-Channel)
• Arc Full (8-Channel)
• Special 1 (19-Channel)
• Special 2 (9-Channel)
• Data Connections:
• 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
• Fixture Setup: RDM Only
• Standalone Control: Yes
• Recommended Control Cable Specification: Gepco DLC224

Electrical System Specifications
• Electronic
• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 463 W, 3.89 A @ 120 V, 60 Hz PF: 0.99
• 451 W, 2.22 A @ 208 V, 60 Hz PF: 0.97
• 447 W, 2.00 A @ 230 V, 50 Hz PF: 0.97
• 450 W, 1.73 A @ 277 V, 60 Hz PF: 0.95
• Power Supply: Electronic internal
• Recommended Power Cable: 14 AWG (3x 2.08 mm2)

Thermal Specifications
• BTUs At Various Voltages:
• 1,579 BTUs/hr @ 120 V, 60 Hz
• 1,538 BTUs/hr @ 208 V, 60 Hz
• 1,525 BTUs/hr @ 230 V, 50 Hz
• 1,535 BTUs/hr @ 277 V, 50 Hz
• Cooling: Convection
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance To Flammable Surface: .98 ft (0.3 m)
• Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification
• Environment Details: Outdoor/wet, with pressure equalizing M12 GORE valve. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Wet
• Impact Resistance Rating: IK10
• Installation Orientation: Any
• Vibration Rating: 3G
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Wind Load Rating: EPA: 1.819 ft²

Accessories
• Included: Filter Frame
• Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
• Required: RDM Device

Order Code
• Ilumipanel LL: ILUMIPANELLL
• Ilumipanel LL Medium Spread Filter: ILUMIPANELLLM
• Ilumipanel LL Wide Spread Filter: ILUMIPANELLLW
• Ilumipanel LL Very Wide Spread Filter: ILUMIPANELLLVW
• Ilumipanel LL Asymmetrical Spread Filter: ILUMIPANELLLASYM
