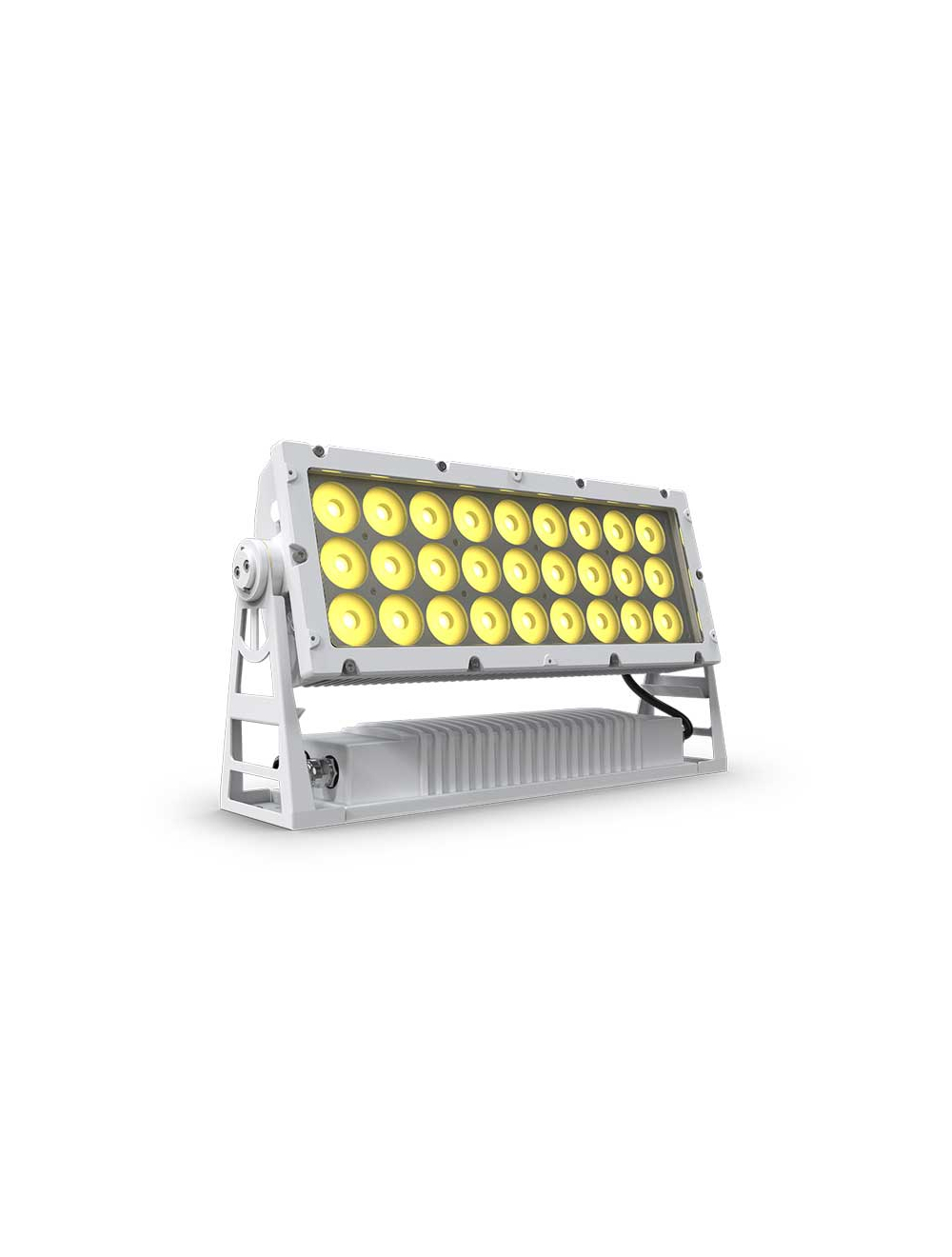

Chauvet Pro ILUMIPANELML2 Ilumipanel ML2 RGBL LED with Optional Filters

Specifications
Light Source and Optical Specifications
• Light Source: 27 LEDs (quad-color RGBL) 20 W, (1.5A)
• Installed Optics: 6°
• Optional Optics: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
• Beam Angle:
(Installed optics): 8°
(Medium filter): 20.8°
(Wide filter): 34.4°
(Very Wide filter): 34°
(Asymmetrical filter): 40° x 13.9°
• Field Angle:
(Installed optics): 14.6°
(Medium filter): 43.7°
(Wide filter): 69.1°
(Very Wide filter): 70.3°
(Asymmetrical filter): 79.8° x 30.9°
• Cutoff Angle:
(Installed optics): 20.8°
(Medium filter): 64.7°
(Wide filter): 126.2°
(Very Wide filter): 151.1°
(Asymmetrical filter): 165.3° x 58.9°
• Lumens:
(Installed optics): 11,884
(w/Medium filter): 6,444
(w/Wide filter): 6,597
(w/Very Wide filter): 6,090
(w/Asymmetrical filter): 7,122
• Iluminance:
(Installed optics): 17,205 lux @ 5 m
(w/Medium filter): 1,277 lux @ 5 m
(w/Wide filter): 502 lux @ 5 m
(w/Very Wide filter): 438 lux @ 5 m
(w/Asymmetrical filter): 884 lux @ 5 m
• Efficacy At Full: 38 lm/W
• Color Temperature Presets: 1800K – 10000K

Construction & Physical Specifications
• Dimensions: 20.51 x 7.32 x 9.12 in (521 x 186 x 232 mm)
• Fixture Color: Off white, C5-M
• Housing Material: Cast aluminum
• Lens Cover: Impact resistant glass
• Mounting Options: Bracket, Hole Diameter 13M
• Weight: 25.4 lb (11.5 kg)

Control Specifications
• Control Protocol: USITT DMX-512a, RDM
• Operating Modes: Selectable personalities
Solid (1-Channel)
Arc 1 (3-Channel)
Arc 1+D (4-Channel)
Arc 2 (4-Channel)
Arc 2+D (5-Channel)
Arc Full (8-Channel)
Special 1 (15-Channel)
Special 2 (9-Channel)
• Data Connections:
o 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
• Fixture Setup: RDM Only
• Standalone Control: Yes
• Recommended Control Cable Specification: Gepco DLC224

Electrical System Specifications
• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
o 315 W, 2.65 A @ 120 V, 60 Hz
o 312 W, 1.60 A @ 208 V, 60 Hz
o 312 W, 1.47 A @ 230 V, 50 Hz
o 255 W, 1.18 A @ 277 V, 60 Hz

Thermal Specifications
• BTUs At Various Voltages:
o 1,092 BTUs/hr @ 120 V, 60 Hz
o 1,075 BTUs/hr @ 208 V, 60 Hz
o 1,075 BTUs/hr @ 230 V, 50 Hz
o 1,068 BTUs/hr @ 277 V, 50 Hz
• Cooling: Convection
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance To Flammable Surface: 0.98 ft (0.3 m)
• Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification
• Certification Listings: MET, CE, RoHS, FCC, CB
• Environment Locations:
IP67, outdoor/wet, with pressure equalizing M12 GORE valve
Please refer to the User Manual for more detailed information on installation.
• Impact Resistance Rating: IK10
• Installation Orientation: Any
• Vibration Rating: 3G
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Wind Load Rating: 1.14 ft²

Accessories
• Included: Filter Frame
• Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
• Required: RDM Device
