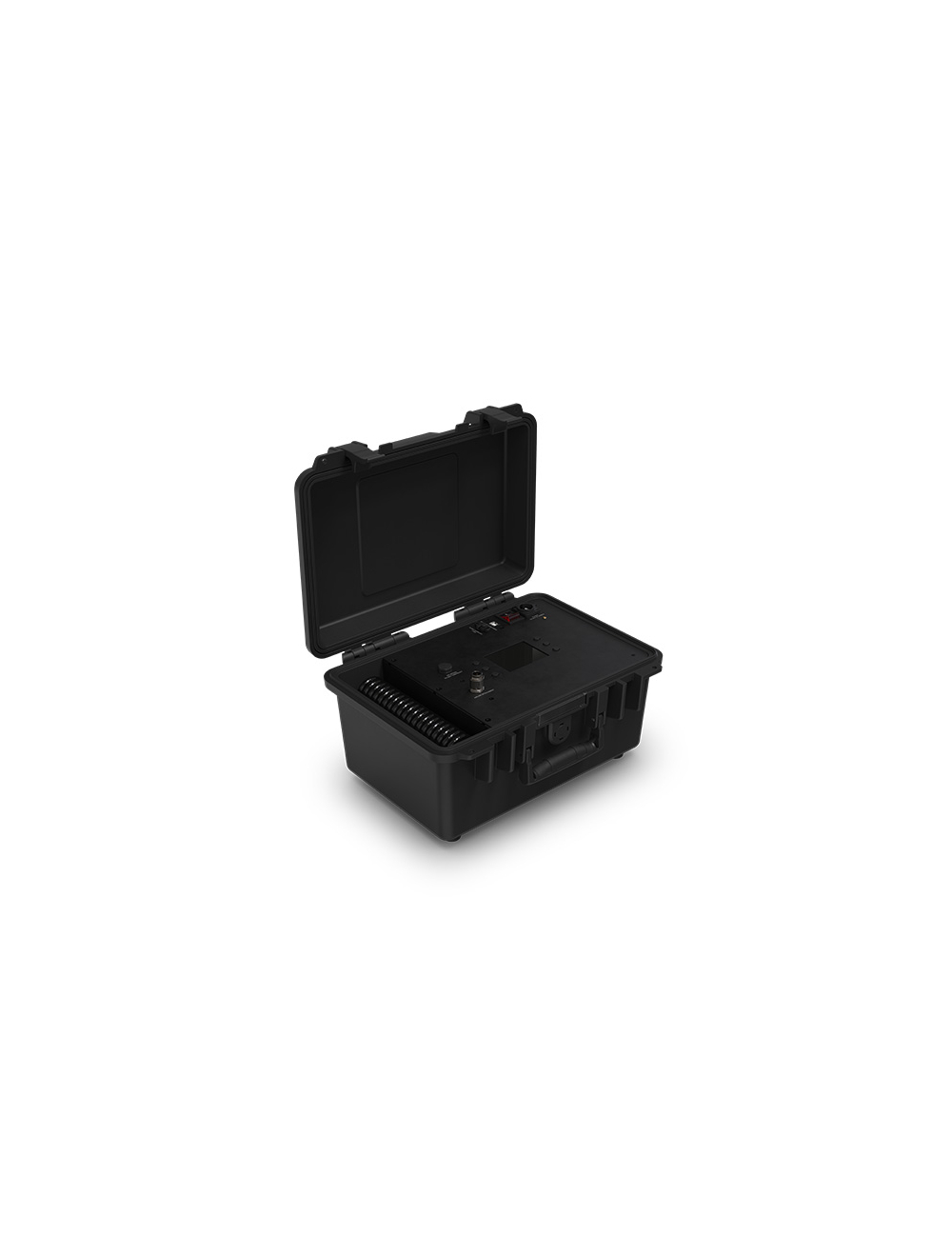

IP Tester is a portable tool capable of testing the vacuum and pressure parameters of IP rated products. It comes with pre-loaded testing personality files for CHAUVET Professional IP rated fixtures as well as offering the ability to easily create custom testing profiles.
AT A GLANCE • Portable, compact IP testing device capable of both vacuum and pressure testing parameters. • Pre loaded testing personality files for CHAUVET Professional IP rated products • Easy to build custom testing profiles • Built in webserver to easy connection to PC computers for creating fixture profiles and storing information from tests • USB-C input for easy software upgrades and for storing fixture test data • USB-B port for easy connection to PC • Compact and impact resistant ABS plastic case is designed to fit in tool and road cases with touring in mind
SPECIFICATIONS CONSTRUCTION / PHYSICAL • Dimensions: 14.38 x 11 x 7.5 in (365.25 x 279.4 x 190.5 mm) • Weight: 9.4 lb (4.3 kg) • Exterior Color: Black • Housing Material: Injection molded case
CONNECTIONS • Power Connection: Edison plug to Seetronic Powerkon • Power Input: Seetronic Powerkon • Quick-Release Air Hose Fitting • Air In/Out Vent • Data Connection: USB-B Port, USB-C • Cable Length (power): 5 ft (1.5 m)
CONTROL • 6 button LCD menu • Built in webserver for USB connection to PC • remote information storage over USB-C input
