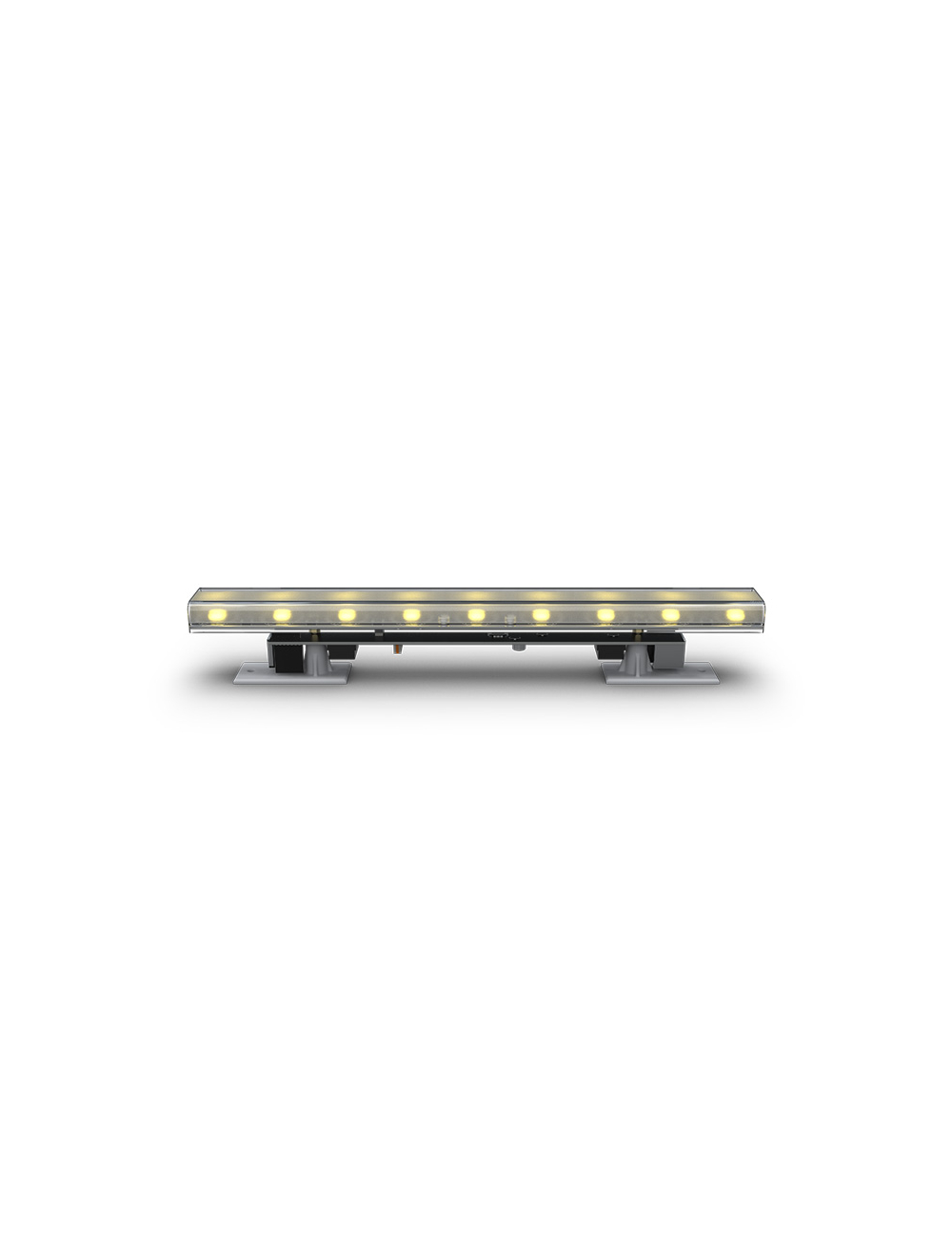

Chauvet Pro LOGICCVS LOGIC Cove LED Strip Small - 1ft

Iluminarc LOGIC Cove is a sleek and discreet LED strip luminaire designed for installation into tight spaces. With its high quality 4-color RGBW color mixing system, Cove provides soft, pleasing accent light and indirect illumination of bright, saturated colors and white calibrated CCT presets.

$379.50

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LOGICCVS

Details

Features:
• Light Source: 9 Quad-color RGBW LEDs at 2.5W
• LED Lifespan: 50,000 hours
• Native Beam Angle (Horizontal): 121.2º
• Lumen Output: 492
• Color Temperature Presets: 1,800K to 10,000K
• Control: Logic Drive 2X (required)
• Dimensions: 12 x 1.22 x 1.81 in (305 x 31 x 46 mm)
• Weight: 0.2 lb (0.1 kg)
• Lens Material: Clear Polycarbonate

Specifications:
• Light Source: 9 LED (quad-color RGBW) 2.5 W, (870 mA)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: Very Wide Filter
• Beam Angle: Open Optics: 121.9° (Horizontal), 122.9° (Vertical), Very Wide Filter: 136.8° (Horizontal), 130° (Vertical)
• Field Angle: Open Optics: 164.5° (Horizontal), 164.2° (Vertical), Very Wide Filter: 168.9° (Horizontal), 240.3° (Vertical)
• Cutoff Angle: Open Optics: 175.6°, Very Wide Filter: 186.4°
• Lumens: Open Optics: 509, Very Wide Filter: 391
• Iluminance: Open Optics: 6 lux @ 5 m, Very Wide Filter: 3 lux @ 5 m
• Efficacy At Full: Open Optics: 27 lm / W, Very Wide Filter: 21 lm / W
• Color Temperature Presets: 1800K - 10000K

Specifications

More Information
Part Number	LOGICCVS
Manufacturer	Chauvet
Lumens	492 Small \| 711 Medium
Color Temperature	RGBW
Rated Life	50,000 hours +
Dimmable	No
Dimensions	12.60" x 5.12" x 3.54"
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
UPC Code	781462220822
