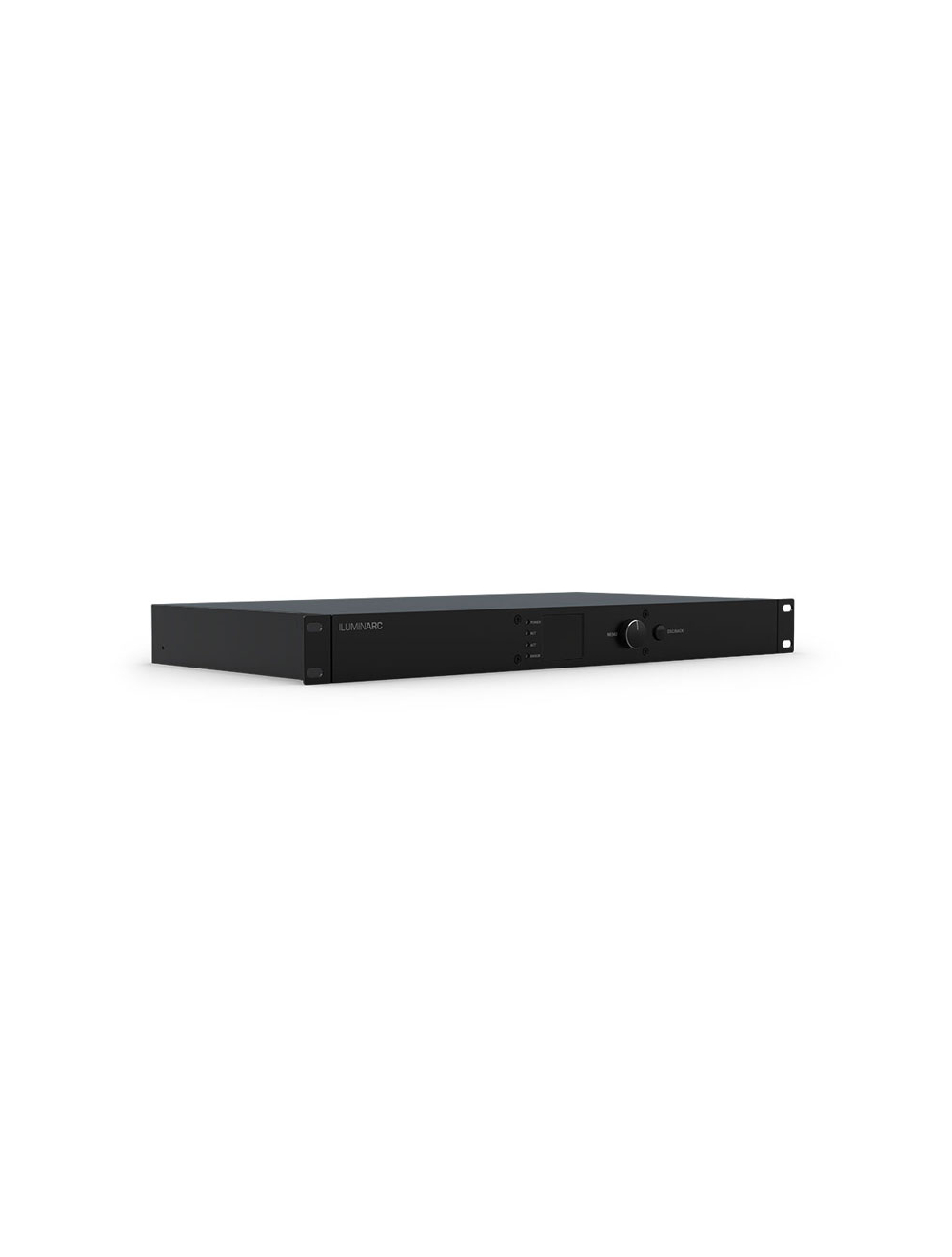

Chauvet Pro LOGICDRIVE2X LOGIC Drive 2X

Features
• 2 POE (Power Over Ethernet) outputs, each supplying up to 110W
• Control options include standard wall controllers, or DMX input via 5-pin XLR, Art-Net, or sACN
• Occupancy sensor-enabled
• Supports fixture hot-swapping and automatic fixture detection
• Current and voltage monitoring
• RDM compliant

Construction & Physical Specifications
• Dimensions: 10.31 x 18.86 x 1.73 in (479 x 245 x 44 mm)
• Fixture Color: Black
• Housing Material: Stamped steel
• Mounting Options: 1U Rack Mount, wall mount via X-slots on bottom of drive housing
• Weight: 7.6 lb (3.45 kg)

Control Specifications
• Operating Modes: Selectable in connected fixtures
• Data Connections:
• Device Data Input: 1 Ethernet (RJ45) and 1 (5-pin) Phoenix connector
• Device output support: POE++, IEEE 802.3 bt, type 4, up to class 8
• Device Data throughout: 1 Ethernet (RJ45) and 1 (5-pin) Phoenix connector
• Wired remote input: 1 RJ-12 (6-conductor, non-standard termination)
• Wired remote output voltage: 12 VDC
• Fixture Setup: Display, RDM, Art-RDM (Artistic License DMX Workshop)
• Standalone Control: Yes

Electrical System Specifications
• Electronic
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 260 W, 2.60 A @ 100 V
• 260 W, 2.17 A @ 120 V
• 260 W, 1.25 A @ 208 V
• 260 W, 1.14 A @ 230 V
• 260 W, 1.09 A @ 240 V
• Power Supply: Electronic internal
• Recommended Power Cable: 3 x 14 AWG, Belden 2413F, 2412F
• Required Cable Specifications: Cable type: CAT6/A, shielded, Conductor Diameter: ≥23 AWG (≥0.5733 mm), Conductor Material: Solid Bare Copper Wire (stranded not supported), Cable plug: RJ45, CAT6/A, Shielded, Cable Termination: T568B standard
• Total Max Cable Length: Drive to first fixture: ≤100 m / 328 ft, Drive to last fixture: ≤140 m / 460 ft, First fixture to last fixture: ≤40 m / 131 ft

Battery Specifications
• Battery Type: Lithium
• Rechargeable: No
• Battery Power: 3 VDC

Thermal Specifications
• BTU Hour: 887
• Cooling: Fan-assisted convection
• Maximum Surface Temperature: 158 °F (70° C)
• Minimum Distance To Flammable Surface: 11.8 in (0.3 m)
• Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification
• Canadian Safety: CSA-C22.2 No. 250.2
• Certification Listings: CE/MET/FCC/RoHS
• Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Dry
• Installation Orientation: Any/Vertical Only/Horizontal Only
• US Safety: UL 2108, UL 1598A
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)

Accessories
• Included: Seetronic Powerkon IP65 power cord, 1 LOGICWALLCON, 1 short rack ear bracket, 1 long rack ear bracket
• Optional: LOGIC Wall Con (additional, up to 3 additional)
• Required: RDM Device, Power Supply, Power and Data Interface, etc.

Order Code
• LOGIC DRIVE 2X: LOGICDRIVE2X
