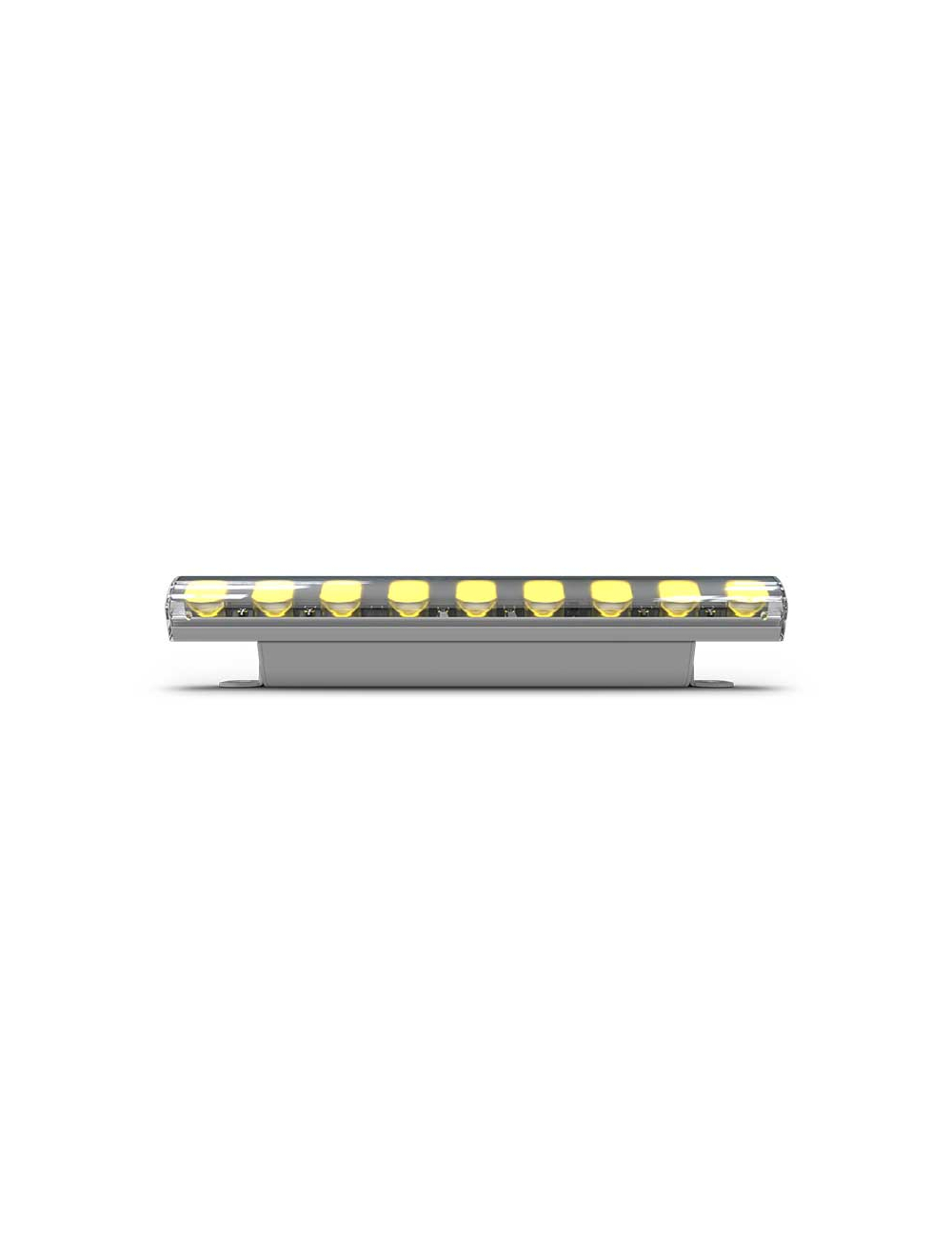

Chauvet Pro LOGICGZS LOGIC Graze Small - 1ft

Iluminarc LOGIC Graze is a compact wall graze luminaire designed to highlight smooth or textured surfaces with a throw distance up to 12 feet.

$448.00

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LOGICGZS

Details

Features:
• Light Source: 9 Quad-color RGBW LEDs at 2.5W
• LED Lifespan: 50,000 hours
• Native Beam Angle: 121.4º
• Lumen Output: 749
• Color Temperature Presets: 1,800K to 10,000K
• Control: Logic Drive 2X (required)
• Dimensions: 12 x 1.37 x 2.36 in (305 x 35 x 60 mm)
• Weight: 1.1 lb (0.5 kg)
• Lens Material: Clear Polycarbonate

Specifications:
• Light Source: 9 LED (quad-color RGBW) 2.5 W, (870 mA)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: Medium Filter
• Included Optics: Very Wide Filter
• Beam Angle: Open Optics: 123.3° (Horizontal), 123.1° (Vertical), Medium Optics: 40.5° (Horizontal), 28.5° (Vertical), Very Wide Filter: 50.5° (Horizontal), 46.3°(Vertical)
• Field Angle: Open Optics: 142.9° (Horizontal), 164.9° (Vertical). Medium Optics: 81.2° (Horizontal), 59.3° (Vertical), Very Wide Filter: 150.6° (Horizontal), 166.6° (Vertical)
• Cutoff Angle: Open Optics: 151.2°, Medium Optics: 117.1°, Very Wide Filter: 189.3°
• Lumens: Open Optics: 871, Medium Optics: 686, Very Wide Filter: 539
• Iluminance: Open Optics: 11 lux @ 5 m, Medium Optics: 50 lux @ 5 m, Very Wider Filter: 13 lux @ 5 m
• Efficacy At Full: Open Optics: 38 lm / W, Medium Optics: 30 lm / W, Very Wide Filter: 24 lm / W
• Color Temperature Presets: 1800K - 10000K

Specifications

More Information
Part Number	LOGICGZS
Manufacturer	Chauvet
Lumens	749 Small \| 3014 Large
Color Temperature	RGBW
Rated Life	50,000 hours +
Dimmable	No
Dimensions	6.10" x 14.76" x 8.46"
Certifications	, ,
Lead Time	Ships in 2-3 Business Days
UPC Code	781462220808
