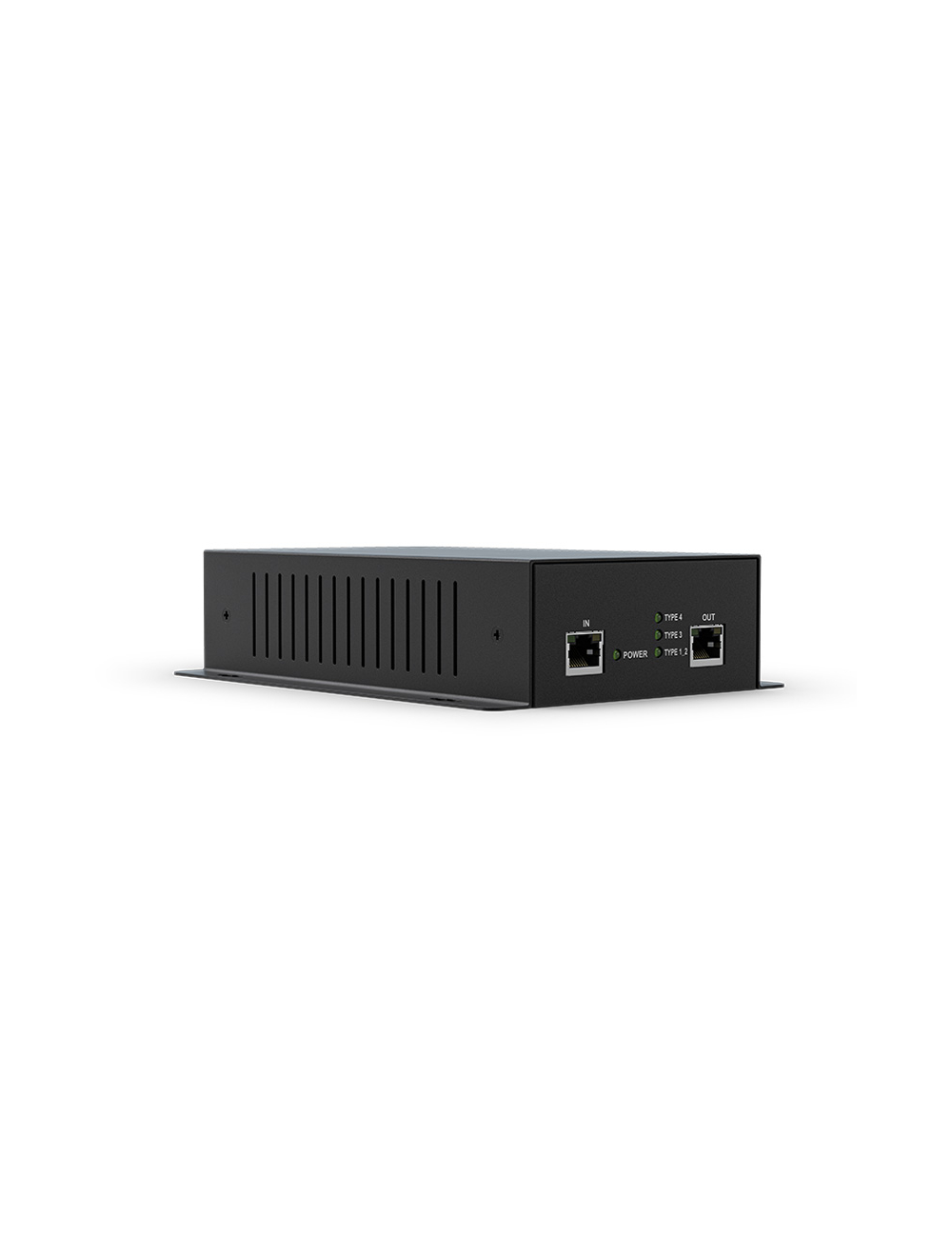

Chauvet Pro LOGICPOEINJECT LOGIC POE Injector

Designed to inject POE power to remote fixtures using the latest POE standard IEEE 802.3 bt (Power over Ethernet). The Logic POE Injector has 1 output port and supports a maximum of 92.5 W.

$264.50

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LOGICPOEINJECT

Details

Construction & Physical Specifications
• Fixture Color: Black
• Mounting Options: wall mount via teardrop slots on side of Injector housing (2 on each side, 4 total)
• Weight: 1.8 lb (0.9 kg)

Control Specifications
• Control Protocol: Art-RDM, Art-Net, sACN
• Standalone Control: N/A
• Recommended Control Cable Specification: Belden 2413F, 2412F

Electrical System Specifications
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging), From LOGIC Driver
• Power and Current:
• 150 W, 1.50 A @ 100 V
• 150 W, 1.25 A @ 120 V
• 150 W, 0.72 A @ 208 V
• 150 W, 0.63 A @ 240 V

Regulatory & Voluntary Qualification
• Certification Listings: MET, CE, FCC
• Environment Details: Dry location, IP20 o Please refer to the User Manual for more detailed information on installation.
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Installation Orientation: Any

Accessories
• Included: Seetronic Powerkon IP65 power cord
• Required: Logic Remote Controller for configuration

Specifications
