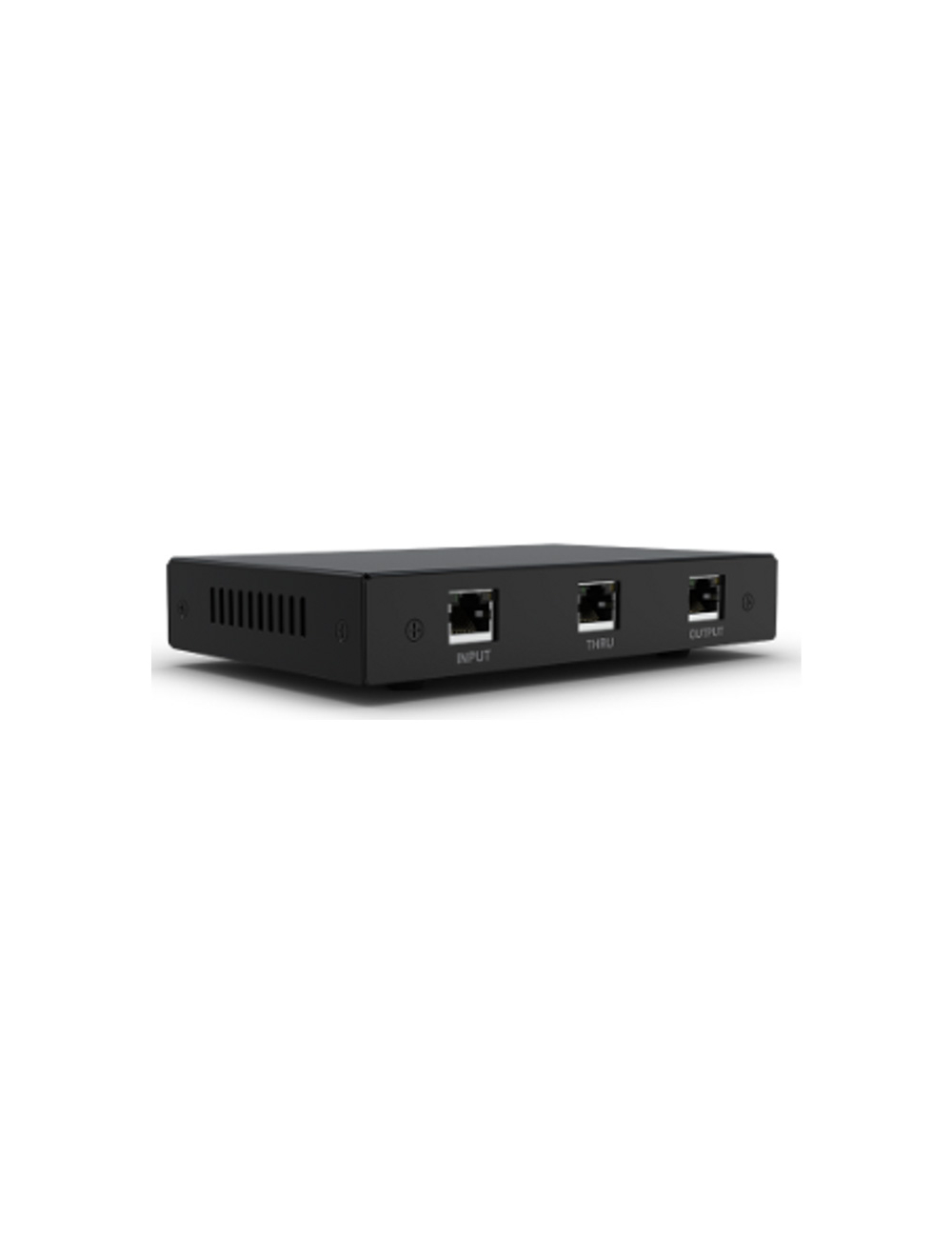

Chauvet Pro LOGICPOEX LOGIC POE-X Converter Interface

The Chauvet Professional LOGICPOEX (also known as the LOGIC POE-X Converter Interface) is a specialized device designed to facilitate the power and data distribution for Chauvet Professional's LOGIC series fixtures, such as the LOGIC MR16 downlights, when used in conjunction with the LOGIC Drive 2X.

$264.50

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

LOGICPOEX

Details

• Power & Data Conversion: The LOGIC POE-X converts power and control signals from the LOGIC Drive 2X to compatible fixtures.
• Power Delivery: Delivers up to 90W (75W usable) of power to connected fixtures.
• Signal Distribution: Includes a Thru connector to pass the control signal to additional fixtures; however, additional
• POE power injectors are required for fixtures that need power from this port.
• Ethernet Connectivity: Utilizes Ethernet (RJ45) connections for data transmission.
• Mounting Options: Features teardrop mounting holes for easy installation.
• Certifications: CE, MET, FCC, RoHS compliant.
• Dimensions: 9.72" x 3.94" x 4.17"
• Weight: 4.72 lb
• Housing Material: Steel (SPCC45)
• Operating Temperature Range: -4°F to 113°F (-20°C to 45°C)
• Cooling: Convection
• Maximum Surface Temperature: 158°F (70°C)

Specifications
