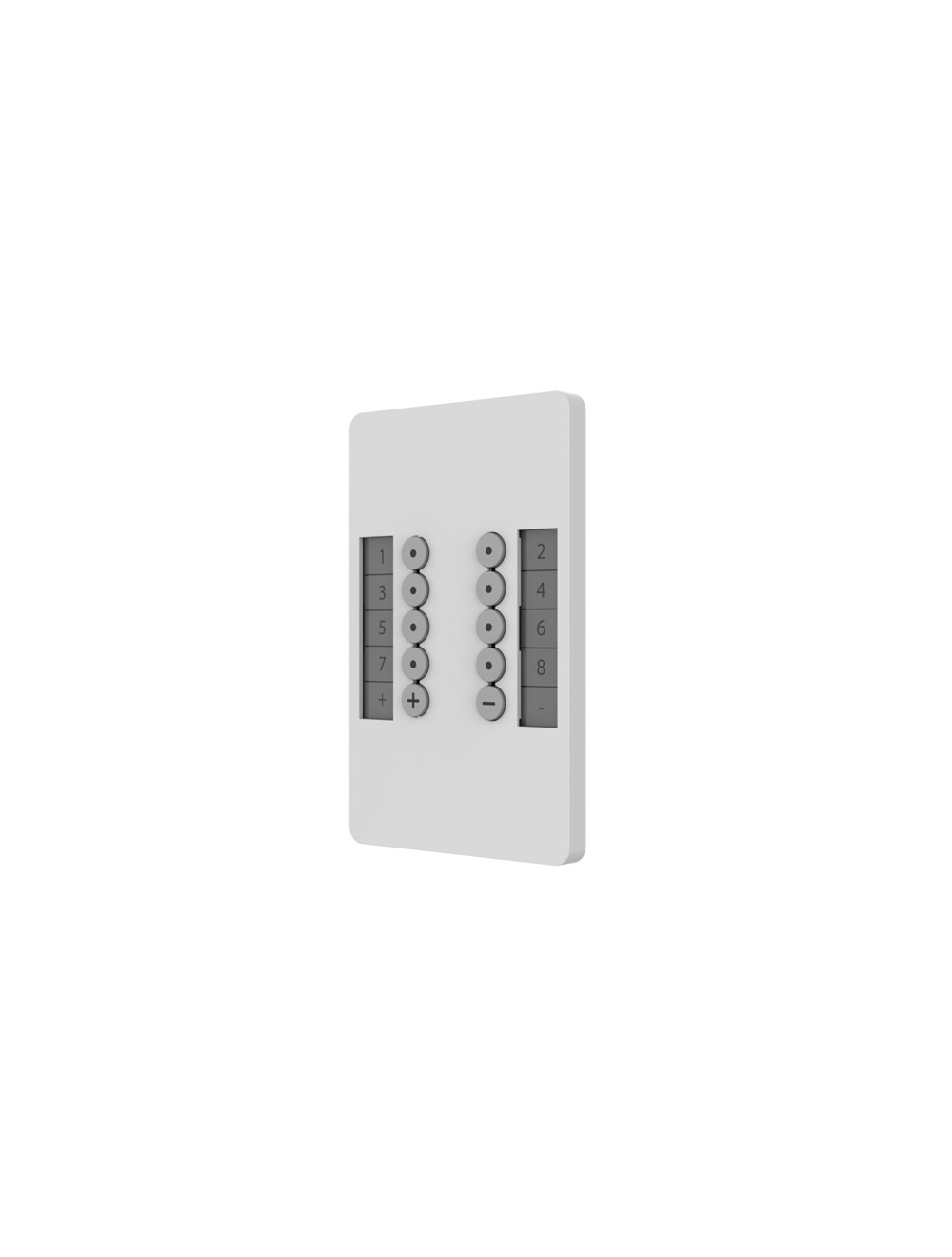

Chauvet Pro LOGICWALLCON LOGIC Wall Controller

Features
• Wall-Mounted Control Station
• Recall up to 8 Different Scenes
• Control Brightness
• 10 Backlit Buttons
• Four Stations on a Single Drive 2X

Construction & Physical Specifications
• Dimensions: 4.88 x 3.11 x 1.36 in (124 x 79.2 x 34.5 mm)
• Fixture Color: White
• Housing Material: plastic
• Mounting Options: single gang wall box
• Weight: 2.8 oz (80 g)

Control Specifications
• Data Connections:
• Device Inputs: 1 RJ-12 (6-conductor, non-standard termination)
• Device Throughputs: 1 RJ-12 (6-conductor, non-standard termination)
• Maximum Serial Connections: Up to 6 stations on a single Drive 2X
• Cable Pinout Standard: RJ12 Flipped (reversed); Configuration is flipped style with pin 1 to pin 6, pin 2 to pin 5, pin 3 to pin 4, pin 4 to pin 3, pin 5 to pin 2, and pin 6 to pin 1

Electrical System Specifications
• Input Voltage: 12 VDC (via Logic Drive 2X)
• Power Supply: Directly via Logic Drive 2X
• Recommended Power Cable: UL20251 6p6c 6-core flat copper telephone wire (Pure oxygen-free copper core)
• Required Cable Specifications: Cable Conductor Min Diameter: ≥26 AWG 6 conductor (shielded/unshielded), Cable wire material: Pure oxygen-free copper core
• Total Max Cable Length: Wall con to wall con: ≤328 ft (100 m), Drive to last wall con: ≤1,312 ft (400 m)

Thermal Specifications
• Cooling: Convection
• Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification
• Canadian Safety: CSA 62368-1
• Certification Listings: CE/MET/FCC/RoHS
• Environment Details: All indoor permanent installations. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Dry
• Installation Orientation: Any
• US Safety: UL 62368-1
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)

Accessories
• Required: Logic Drive 2X

Order Code
• LOGIC WALL CONTROLLER: LOGICWALLCON
