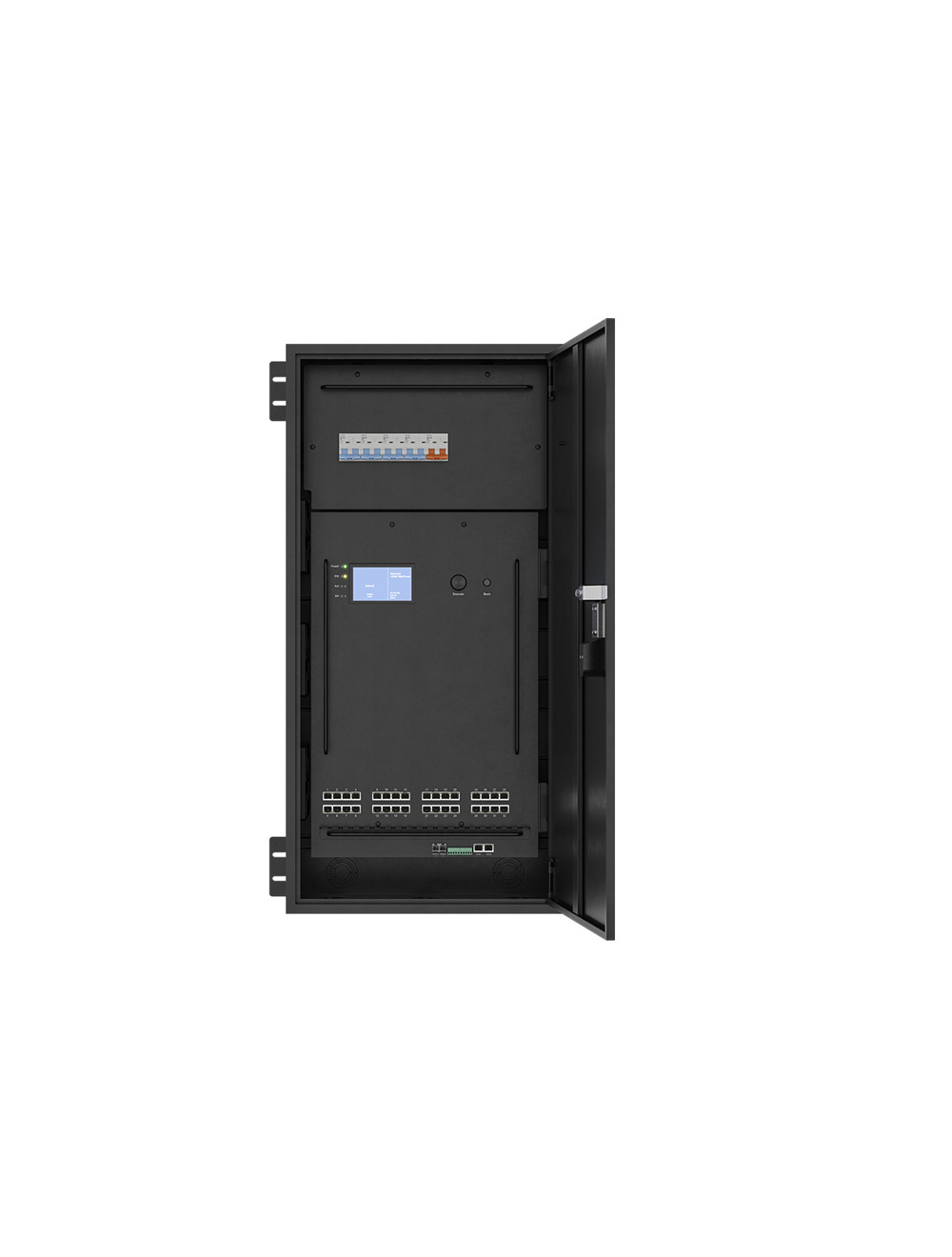

Chauvet Pro LOGICWALLPANEL16PORT LOGIC Wall Panel - 16 Port

Construction & Physical Specifications:
• Fixture Color: Black
• Housing Material: Stamped steel
• Mounting Options: 20U Rack Mount, ¼ in 3/8 in, 5/16 in screws/bolts
• Weight: 75 lb (34 kg)

Control Specifications:
• Control Protocol: USITT DMX-512a, Art-Net, sACN, RDM, Art-RDM
• Operating Modes: Selectable in connected fixtures
• Data Connections:
o Device Data Input: 1 Ethernet (RJ45) and 1 (5-pin) Phoenix connector
o Device output support: POE++, IEEE 802.3 bt, type 4, up to class 8
o Device Data throughout: 1 Ethernet (RJ45) and 1 (5-pin) Phoenix connector
o Wired remote input: 2 RJ-12 (6-conductor, non-standard termination)
• Fixture Setup: Display, RDM, Art-RDM (Artistic License DMX Workshop)
• Standalone Control: Yes

Electrical System Specifications:
• Electronic
• Power and Current:
o 4000 W, 19.23 A @ 208 V
o 4000 W, 17.39 A @ 230 V
o 4000 W, 16.66 A @ 240 V
• Power Linking: N/A
• Power Supply: Electronic internal
• Recommended Power Cable: 3 x 10 AWG
• Required Cable Specifications: o Cable type: CAT6/A, shielded o Conductor Diameter: ≥23 AWG (≥0.5733 mm) o Conductor Material: Solid Bare Copper Wire (stranded not supported) o Cable plug: RJ45, CAT6/A, Shielded o Cable Termination: T568B standard

Battery Specifications:
• Battery Type: Lithium
• Rechargeable: No
• Battery Power: 3 VDC

Thermal Specifications:
• BTU Hour: 10,918 BTU/hr
• Cooling: Fan-assisted convection
• Maximum Surface Temperature: 158 °F (70° C)
• Minimum Distance To Flammable Surface: 11.8 in (0.3 m)
• Operating Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification:
• Canadian Safety: CSA-C22.2 No. 250.2
• Environment Details: Dry location, IP20 o Please refer to the User Manual for more detailed information on installation.
• Installation Orientation: Vertical only
• US Safety: UL 2108, UL 1598A
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
