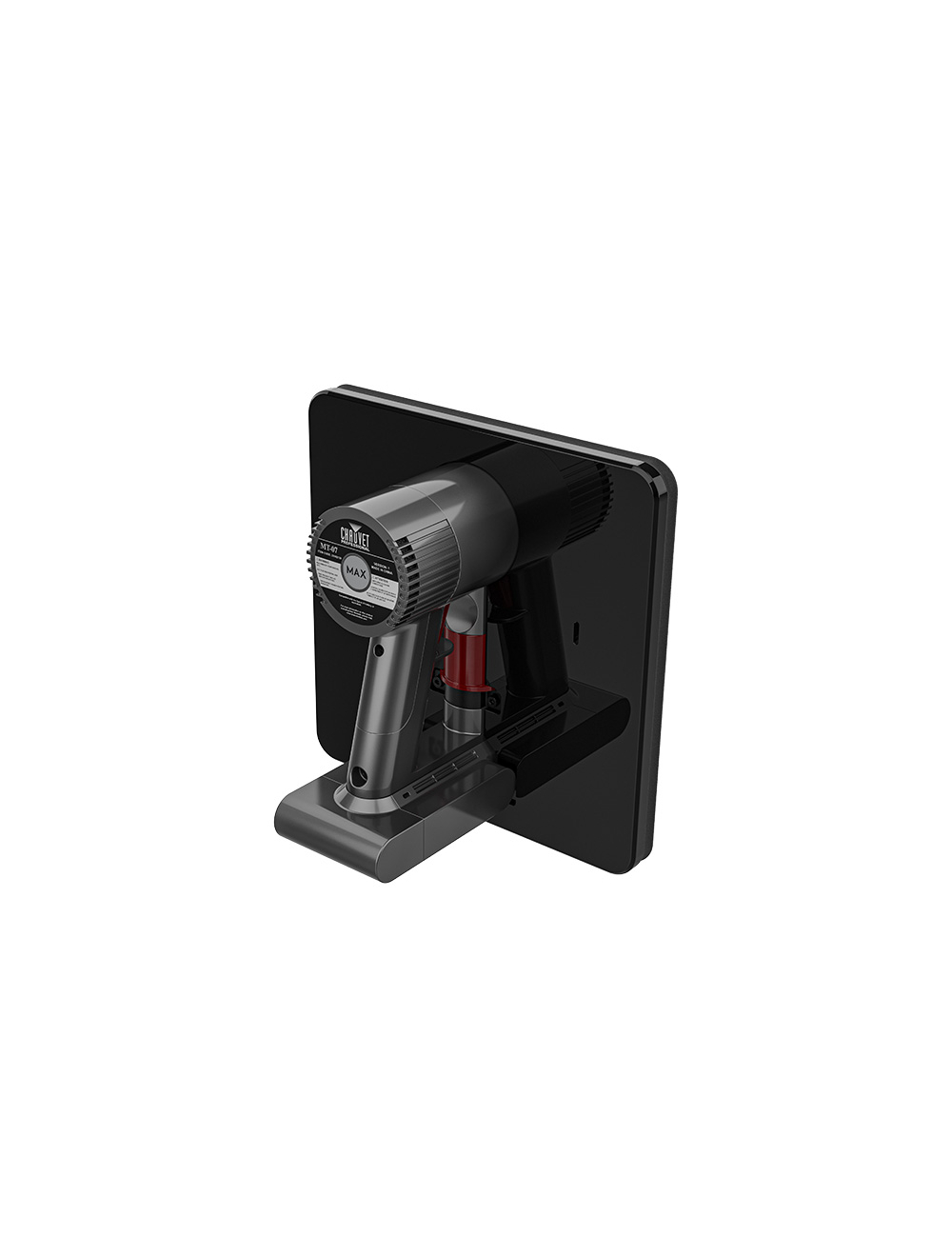

Chauvet Pro MT07 Module Install/Removal Tool

Universal LED Module removal/installation tool that works with all CHAUVET Professional video panels, including F-series and REM-series. Convenient battery-powered tool for front-service module access. Creates vacuum over LED module surface to apply even pulling force, preventing damage to LEDs on LED modules. Includes battery charger and carry case.

$1,248.33

Lead Time

Ships in 2-3 Business Days

Return Policy

30 Days Terms

SKU

MT07

Details

AT A GLANCE
• Universal LED Module removal/installation tool
• Works with all Chauvet video panels, including F-series and REM-series
• Battery-powered tool convenient to use for front-service module access
• Creates vacuum over LED module surface to apply even pulling force, preventing damage to LEDs on LED modules

SPECIFICATIONS
CONSTRUCTION / PHYSICAL
• Dimensions: 9.45 x 9.45 x 5.52 in (240 x 240 x 140 mm)
• Weight: 6.8 lb (3.08 kg)
• Dimensions (shipping size): 12.05 x 15.04 x 8.27 in (306 x 382 x 210 mm)

CONNECTIONS
• Cable Length (power extension): 3 ft (0.91 m)

ELECTRICAL
• Charger Input Voltage: 26.10 VDC, 780 mA (external power supply: 100-240 VAC 50/60 Hz)

BATTERY
• Battery type: Lithium Ion
• Rechargeable: Yes
• Watt Hours: 97.2 Wh
• Voltage: 21.6V
• Amp Hour: 4500 mAh

CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP20, dry location

WHAT'S INCLUDED
• MT-07 Module Removal Tool
• Battery Charger
• Battery Pack (installed)
• Carry case
