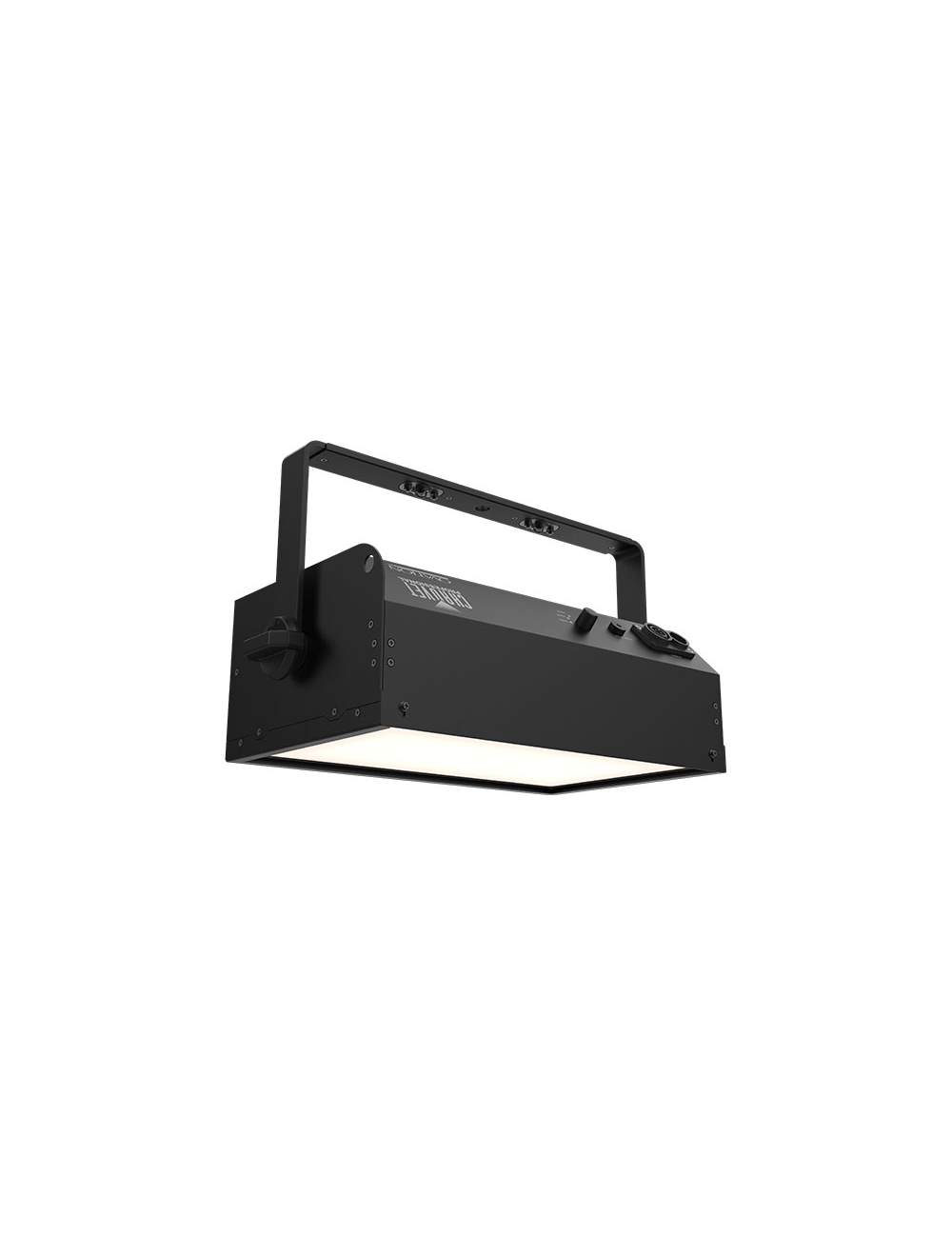

Chauvet Pro OVATION2WL Ovation 2wl 960 LEDs 120-240 Volt in Selectable Color Temperature with Wide Spectrum and High CRI Lighting

At a Glance
• Effective utility light for use when DMX lighting isn’t needed.
• Three selectable color temperatures (3200, 4000, 5600K) providing wide-spectrum, high-CRI lighting
• Soft, flood lighting minimizes shadows
• Use with direct line voltage and can be dimmed via off-the-shelf phase cut or triac dimmers

Specifications
Optical
• Light Source: 960 LEDs (CW, WW)
• Color Temperature (3200k): 3217 K
• Color Temperature (4000k): 3960 K
• Color Temperature (5600k): 5584 K
• CRI (3200K): 95.3
• CRI (4000K): 95.2
• CRI (5600K): 94.0
• Beam Angle: 107.4°
• Field Angle: 158.7°
• Lumens (3200k): 10,564
• Lumens (4000k): 10,954
• Lumens (5600k): 11,328
• Illuminance 3200k): 158 lux @ 5 m
• Illuminance (4000k): 164 lux @ 5 m
• Illuminance (5600k): 169 lux @ 5 m

Dynamic Effects
• Dimmer: External Dimmer (phase cut or triac compatible)
• On-board Color Temperature Selection

Construction / Physical
• Dimensions: 20.67 x 8.86 x 15.94 in
• Weight: 15.43 lb (7.00 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy
• Accessory Holder/Gel Frame Size: 14.375 x 8.50 x 0.125 in (365.125 x 216 x 3.175 mm)

Connections
• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Cable Length (power): 5 ft (1.5 m)

Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 13 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
• Power and Current: 103 W, 0.91 A @ 120 V, 60 Hz
• Power and Current: 99 W, 0.55 A @ 208 V, 60 Hz
• Power and Current: 98 W, 0.51 A @ 230 V, 50 Hz
• Breaker Size: T2.5 A, 350 V

Certifications / Qualifications
• CE, MET, FCC, RoHs
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included
• Ovation 2WL
• Seetronic Powerkon power cable
• Omega Bracket with mounting hardware

Optional Accessories
• Professional Clamps: CTC-50HC, CTC-50HCN
